Description

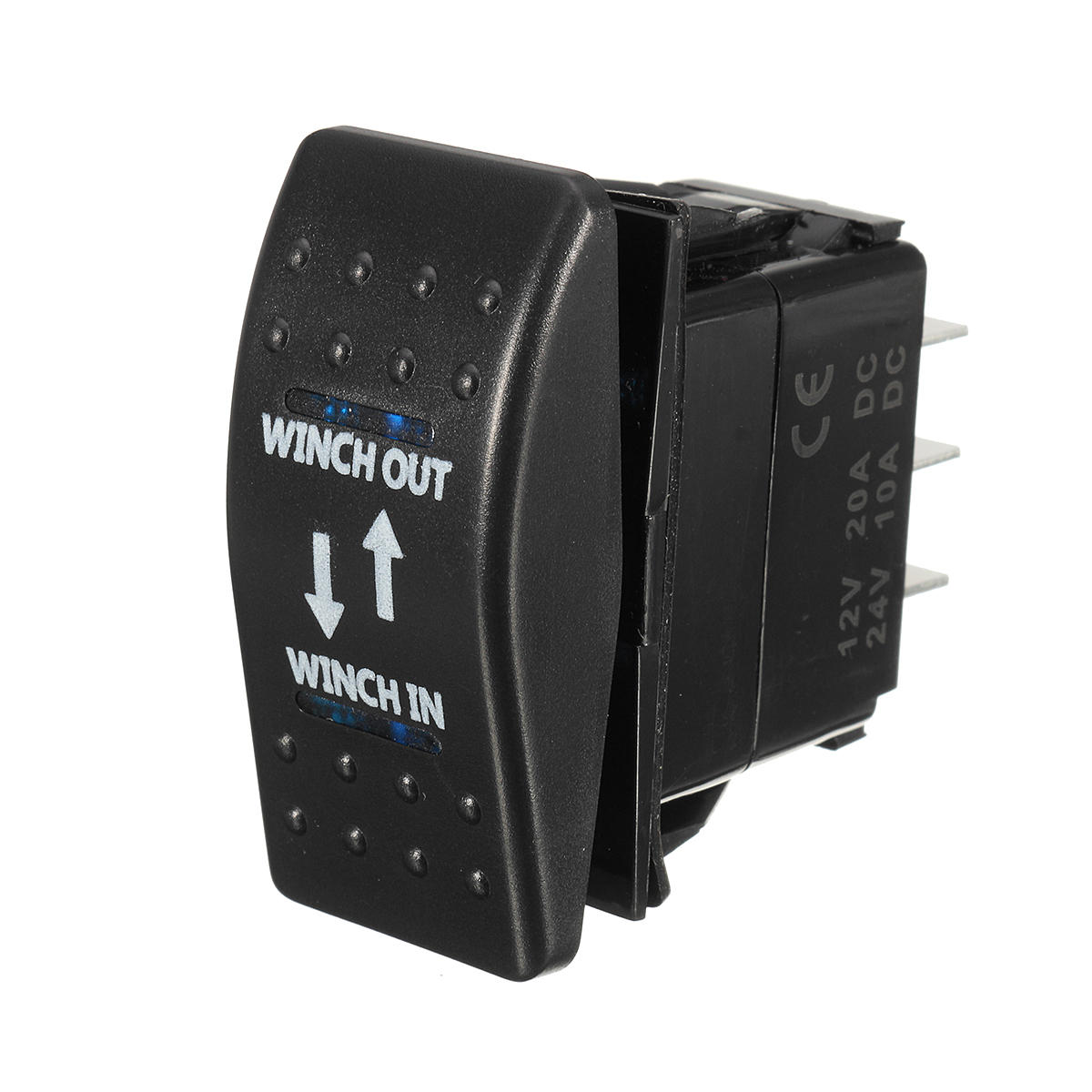

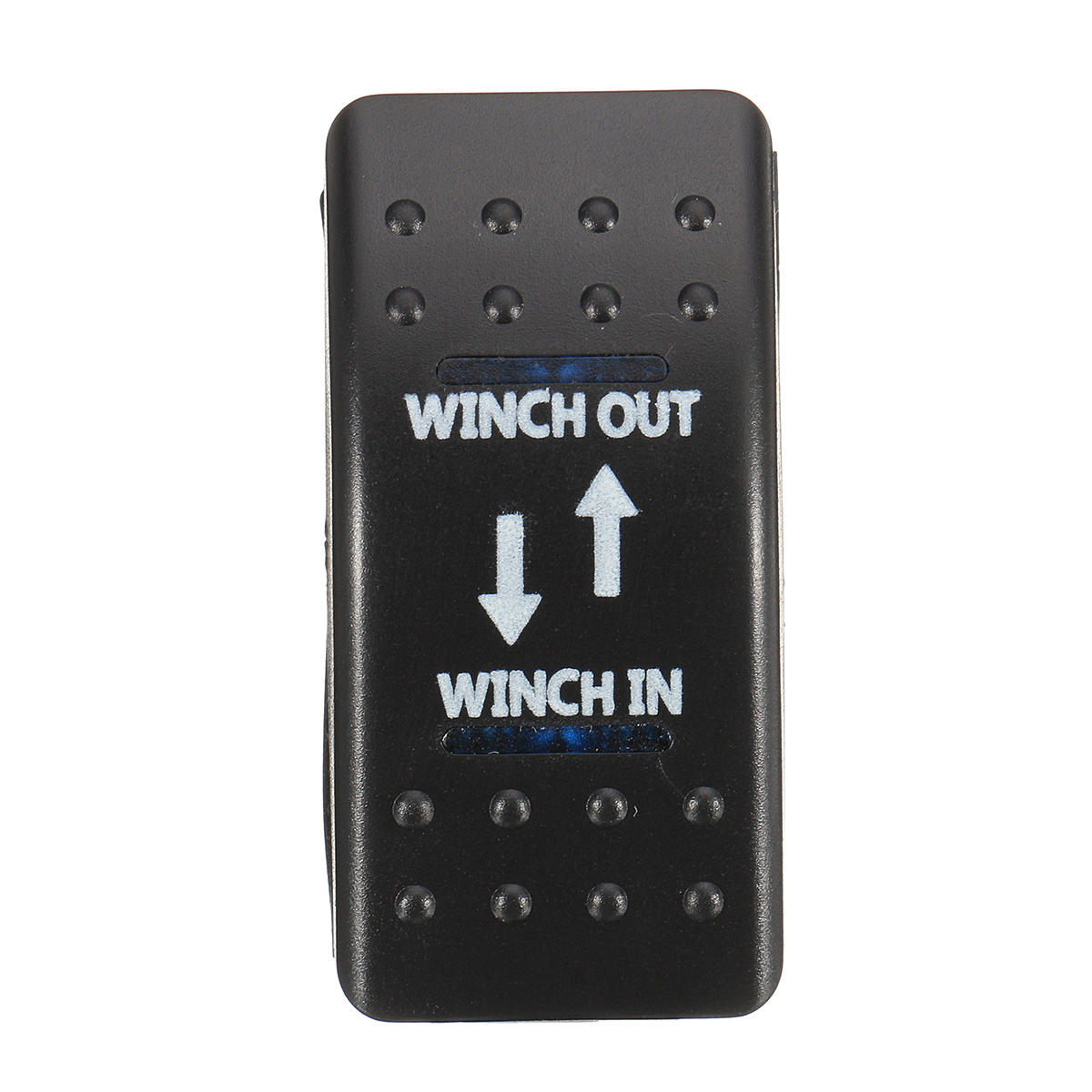

Description: Black hard surface rocker Laser etched WINCH IN WINCH OUT Legend Single upper light Single lower light Upper light is ON when the switch is pressed UP Lower light can be wired to separate dash light circuit Waterproof rating of IP66 No rear barriers between terminals Wiring diagram is not supplied Specification: Model: 569952 Product Name: Rocker Switch Color: Black Rated: 12V 20A , 24V 10A DC Pin Number: 7 Pins Light Color: Green, Yellow, Blue, Red, White Please let us know the color youd like. You can leave the message on your Paypal note or Email to tell us. Otherwise well send at random. Type: ON -OFF- ON switch Switch Operate Type: Momentary Switch Cutout dimensions are 0.83 by 1.45 21mm x 36.83mm Face surface size: 0.90 x 1.92 49mm x 23mm Note: 1. No instructions included.Professional installation is highly recommended 2. Please check the size measurement chart carefully before making payment. 3. Please allow 0.5-1 inch difference due to manual measurement. 1 inch so 2.54cm 4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding. Package Included: 1 X Rocker Switch,,,,,,,,,
