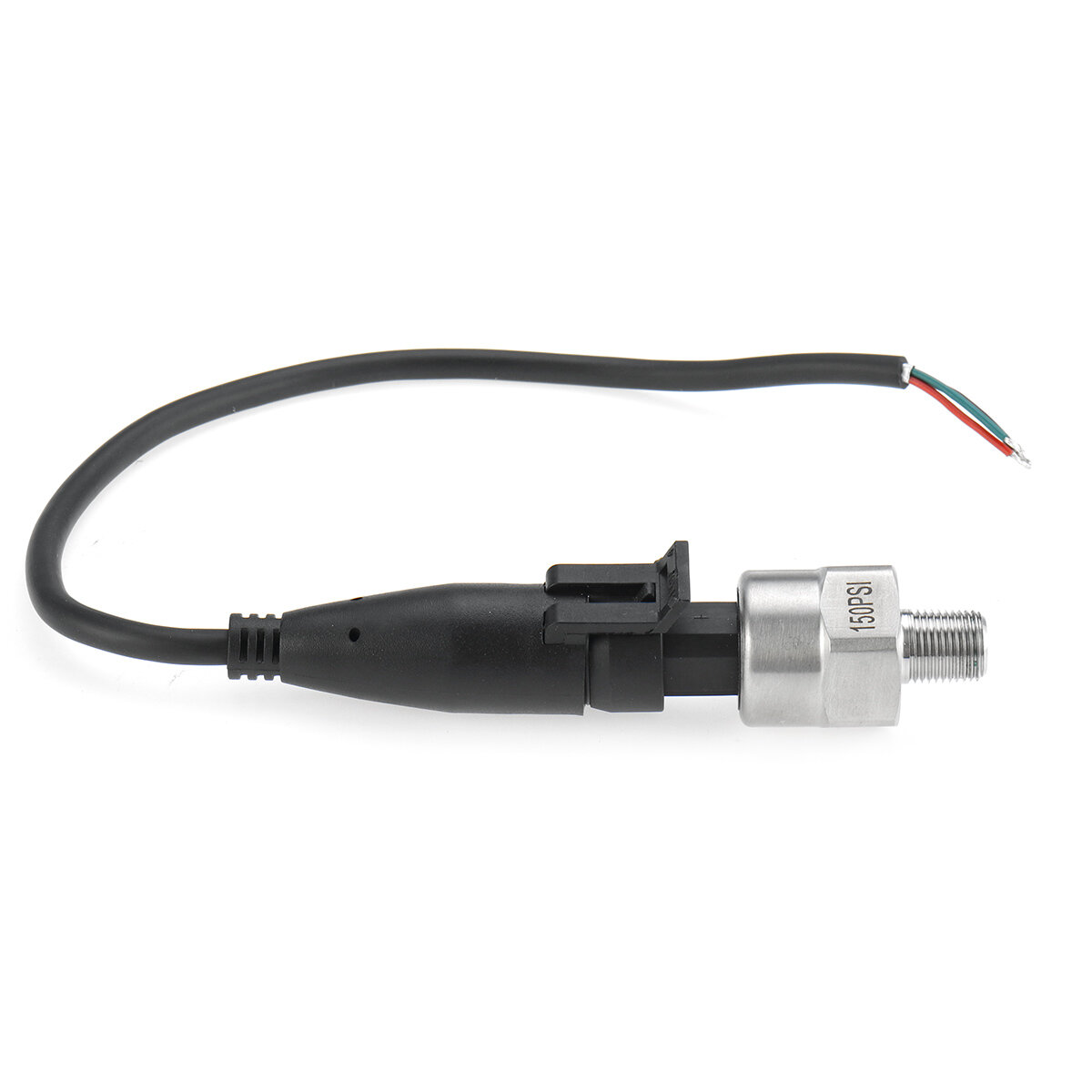

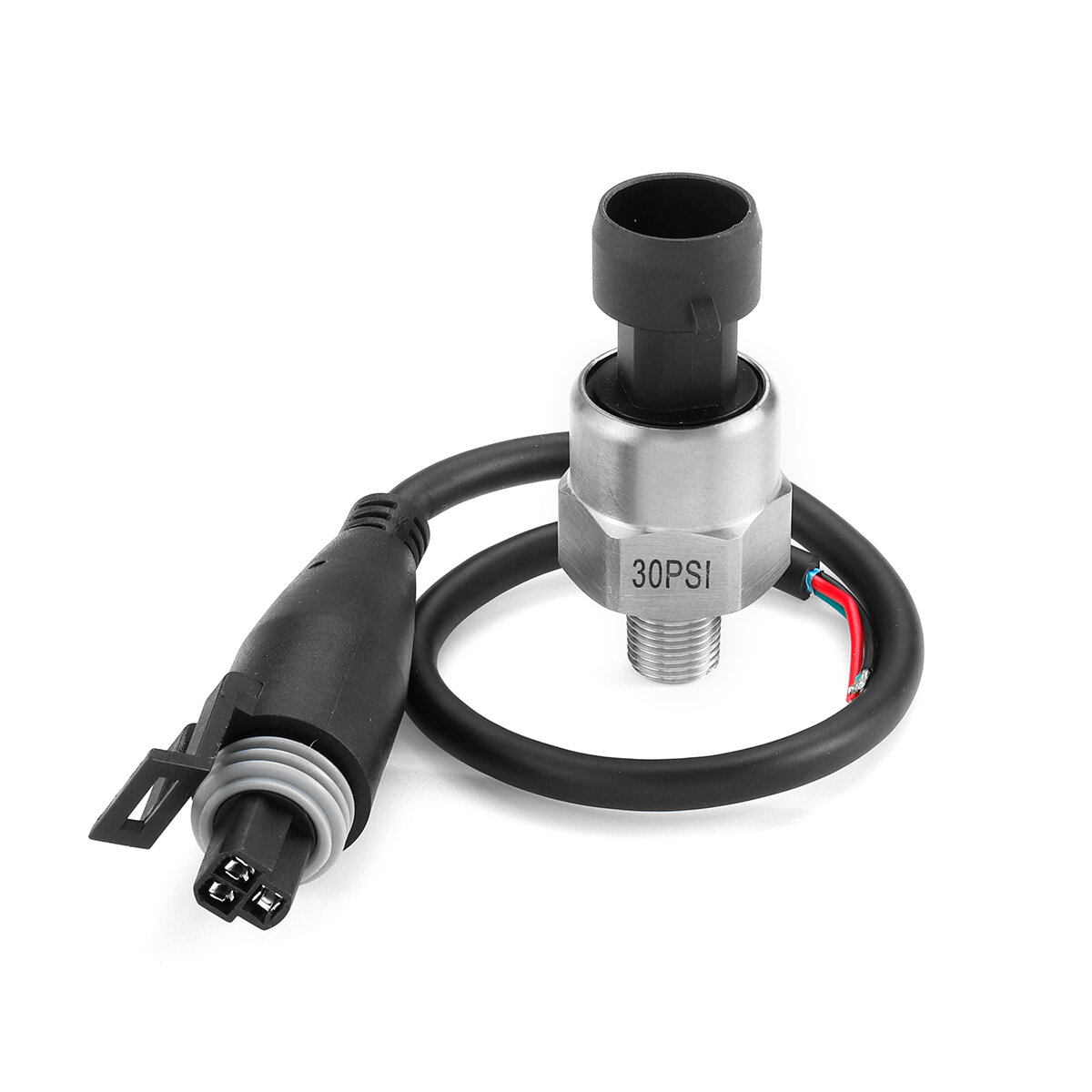

5V 1/8NPT Stainless Steel Fuel Pressure Sensor Transducer Sender For Oil Air Water 5/15/30/60/100/150/200/300/500/1000/1600 Psi – 500

Description

: 5V 1,8NPT Stainless Steel Fuel Pressure Transducer Sender For Oil Air Water 5,15,30,60,100,150,200,300,500,1000,1600 Psi Specification: Product Name: Oil Fuel PressureTransducer Material: Stainless Steel and Rubber Color: Silver and Black Voltage: DC 5V Length: 53mm Thread: 1,8 -27 NPT , 1,8 NPT Pressure: 5psi, 15psi, 30psi,60psi, 100psi, 150psi,200psi,300psi,500psi,1000psi,1600psi Please let us know the pressure you’d like,You can leave the message on your Paypal note to tell us. Quantity: 1pc 5 psi NO.5 Input: 0-5 psi. Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 2.5 psi outputs 2.5V, 5 psi outputs 4.5V. Accuracy: within 2 percent of reading full scale . Thread: 1,8”-27 NPT. Wiring connector: water sealed quick disconnect. Mating connector and wire harness pigtail is included. Wiring: Red for , 5V. Black for ground. Blue for signal output. 15 psi NO.15 Input: 0-15 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 7.5 psi outputs 2.5V, 15 psi outputs 4.5V. Accuracy: , ,-0.5 percent FS, Thread: 1,8” NPT, Wiring Connector: Packard plug-in unit is included, Wiring: Red: , 5V, Black: ground, Green: signal output, Overload Capacity: 2-4 times, Working Temperature: -40— , 120ºC, Compensation Temperature: -20— , 80ºC, Protection Class: IP67, Pressure Medium: The liquid and gas which is compatible with 316L stainless steel, Load Resistance: ≤ supply power-6.5V,0.02A Ω, Long-term stability: Less than 0.1 percent FS,year, Temperature Effect on Zero: Typical:0.02 percent FS,ºC, Maximum:0.05 percent FS,ºC, Temperature Effect on Sensitivity: Typical:0.02 percent FS,ºC, Maximum:0.05 percent FS,ºC, Shock Resistance: 1000g, Anti-Shock: ≤ , ,-0.01 percent FS X,Y,Z axes, 200Hz,g , Response Time: ≤1ms, Insulation Resistance: 100mΩ 500VDC, Explosion-proof Class: ExiaTTCT6, Electromagnetism Compatibility: EN50051-1. 30 psi NO.30 Input: 0-30 psi. Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V. Accuracy: within 2 percent of reading full scale . Thread: 1,8”-27 NPT. Wiring connector: water sealed quick disconnect. Mating connector is included. Wiring: Red for , 5V. Black for ground. Blue for signal output. 100 psi NO.100 Input: 0-100 psi. Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V. Accuracy: within 2 percent of reading full scale . Thread: 1,8”-27 NPT. Wiring connector: water sealed quick disconnect. Mating connector and wire harness pigtail is included. Wiring: Red for , 5V. Black for ground. Blue for signal output. 200 psi NO.200 Pressure Range: 0-200 psi Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, 200 psi outputs 4.5V Working Temperature: -40— , 125ºC,. Accuracy: ±1 percent FS, Thread: 1,8”-27 NPT. Overload Capacity: 2 times, Pressure Medium: The liquid and gas which is compatible with 316L stainless steel, Load Resistance: ≤ supply power-6.5V,0.02A Ω, Long-term stability: ± 0.2 percent FS,year, Temperature Effect on Zero: Typical: ±0.02 percent FS,ºC, Maximum: ±0.05 percent FS,ºC, Temperature Effect on Sensitivity: Typical: ±0.02 percent FS,ºC, Maximum: ±0.05 percent FS,ºC, Shock Resistance: 100g, Anti-Shock: ≤±0.01 percent FS X,Y,Z axes, 200Hz,g , Response Time: ≤1ms, Insulation Resistance: 100mΩ 500VDC, Explosion-proof Class: ExiaTTCT6, Electromagnetism Compatibility: EN50081-1, EN50082-2, IEC6 1000-4-3 , Wiring: Red for IN , . Black for GND. Green for OUT. 300psi NO.300 Input: 0-300 psi Gauge Pressure , Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V. Accuracy: , ,-0.5 percent FS, Thread: 1,8” NPT, Wiring Connector: Packard plug-in unit is included, Wiring: Red: , 5V, Black: ground, Green: signal output, Overload Capacity: 2-4 times, Working Temperature: -40— , 120ºC, Compensation Temperature: -20— , 80ºC, Protection Class: IP67, Pressure Medium: The liquid and gas which is compatible with 316L stainless steel, Load Resistance: ≤ supply power-6.5V,0.02A Ω, Long-term stability: Less than 0.1 percent FS,year, Temperature Effect on Zero: Typical:0.02 percent FS,ºC, Maximum:0.05 percent FS,ºC, Temperature Effect on Sensitivity: Typical:0.02 percent FS,ºC, Maximum:0.05 percent FS,ºC, Shock Resistance: 1000g, Anti-Shock: ≤ , ,-0.01 percent FS X,Y,Z axes, 200Hz,g , Response Time: ≤1ms, Insulation Resistance: 100mΩ 500VDC, Explosion-proof Class: ExiaTTCT6, Electromagnetism Compatibility: EN50051-1. 500 psi NO.500 Input: 0-500 psi Gauge Pressure , Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, 500 psi outputs 4.5V. 1000 psi NO.1000 Input: 0-1000 psi. Output: 0.5V – 4.5V linear voltage out 1600psi NO.1600 Input: 0-1600 psi Gauge Pressure , Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 80 Fitment: For oil, fuel, diesel, gas, water, air pressure Can be used in oil tank, gas tank, diesel tank etc. Features: It's ann advance pressure sender than traditional mechanical pressure sender, CMC for Load Cell Sensor, CMC for Pressure and Pull Pressure Sensor. Package Included: 1 x Pressure Transducer With Cable
