Description

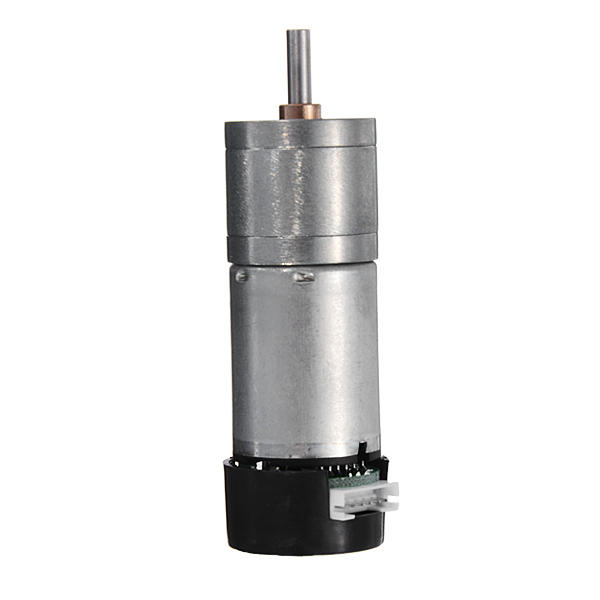

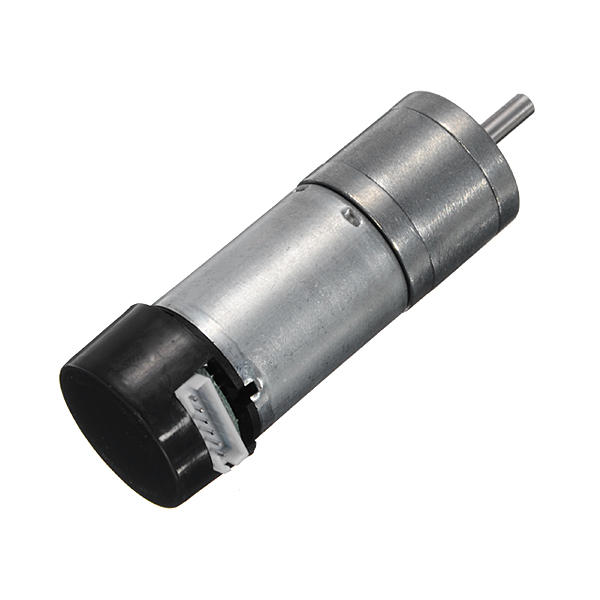

Specifications:Name: 25mm gear motor
Output speed: 150±10%rpm
No_load Current: 200mA (Max)
Stall current: 4500mA(max)
Stall torque: 9.5kgNaN
Rated speed: 100±10%rpm
Rated torque: 3000gNaN
Rated Current: 1200mA (Max)
Noise: 56dB
Working voltage: 9V
Outside Shaft Length: 14.5mm
Shaft End Play: 0.05-0.50mm
Screw Size: M3.0
Dia. Of Shaft phi4mm, D3.5
Encoder: 2 pulses/circle
Note:
This item just includes 1pcs gear motor.
Package included:
1 x 25mm gear motor
1 x Cable
,
