Description

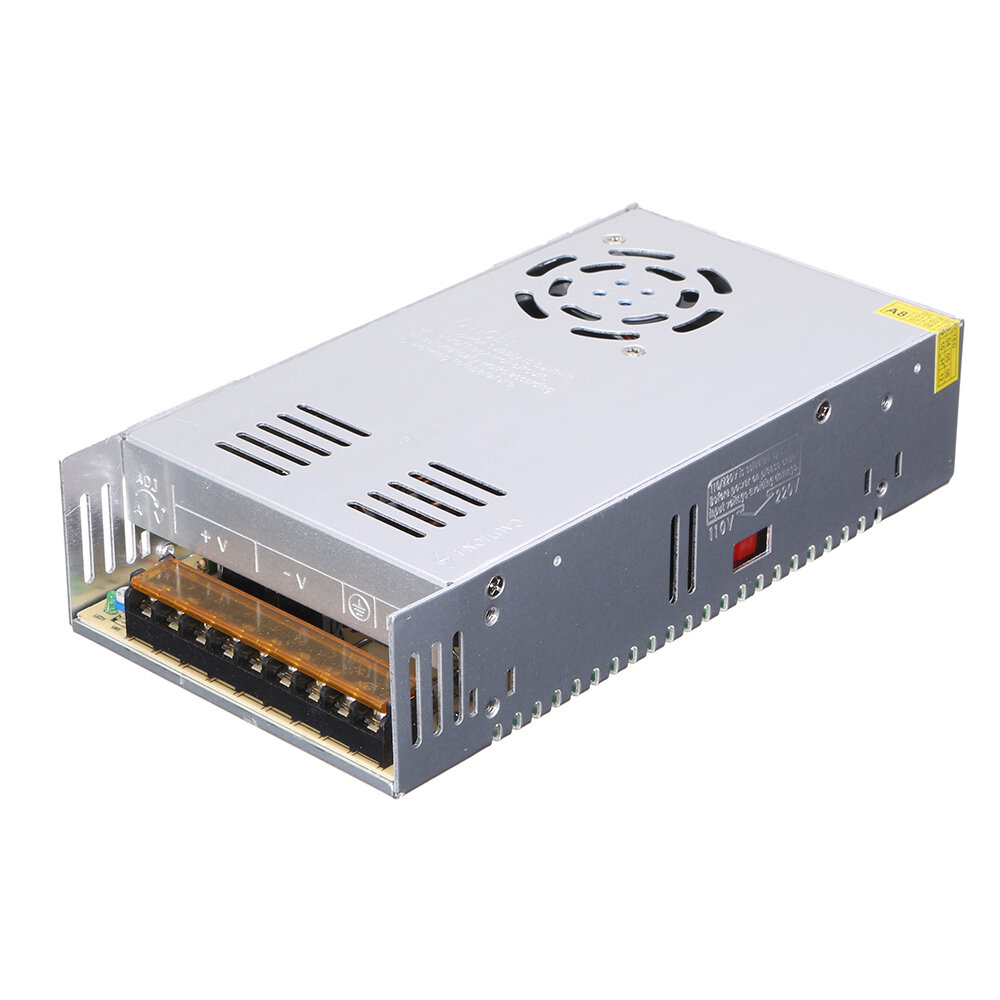

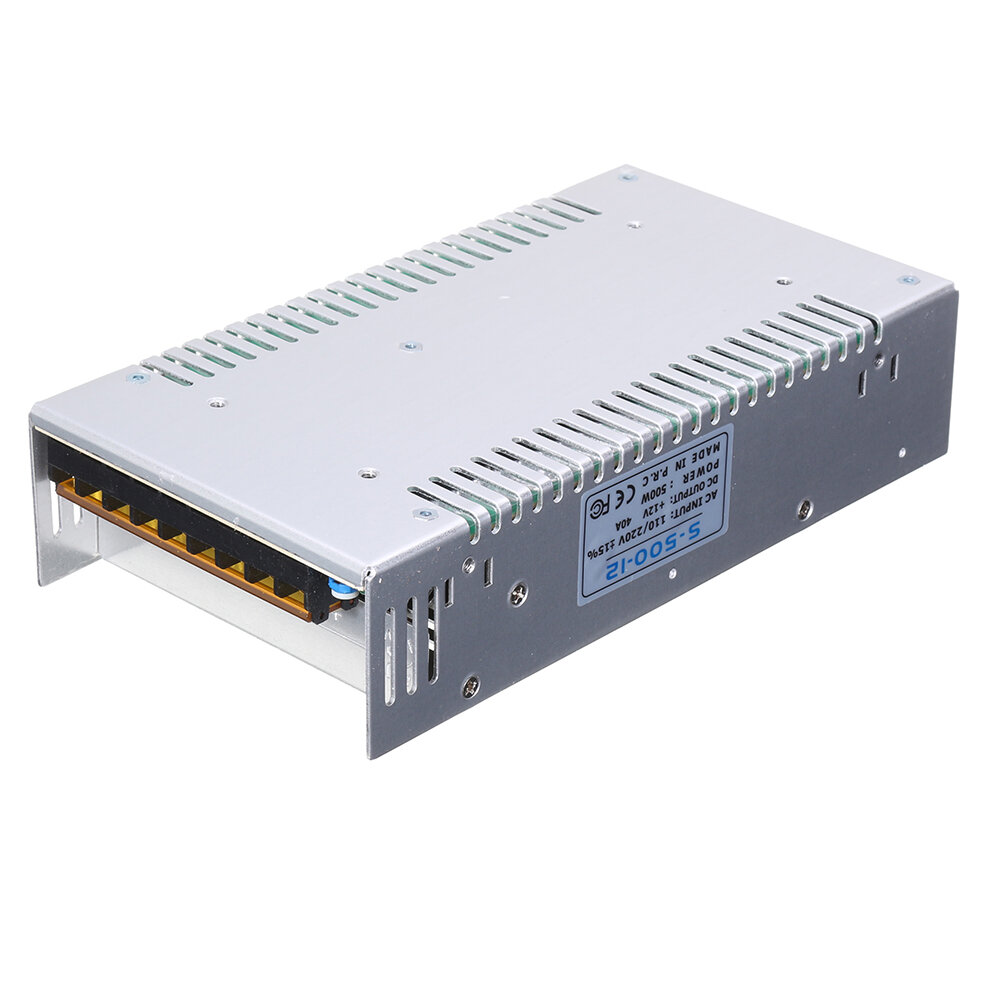

Technical Parameters:ModelS-500-12AC input voltage range110/220VACInput current0.25A/115V 0.5A/230VAC impulse currentCold-start current 20.5A/115V 20/230VDC output voltage12VDC output power500WRated output current40AOutput voltage error±1%Efficiency85%Wave and noise150mVp-pInlet stability±0.5%Load stability±0.5%Leakage current<0.5mA/240VACOverload protection105% - 150% rated power, automatically recoveryVibration10500Hz,2G 10min./1cycle,Period for 60min,Each axesCooling methodFan assisted cooling Working temperature and humidity- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)Store temperature and humidity- 30 ° ~ 85 ° c / 10% ~ 95% RH (no frost)Safety standardsCE(EMC+LVD), FCC.Dimension215x115x50mmWeight0.85kg
Feature: 1. International AC input range2. High efficiency, low working temperature3. Short circuit,overload,over-current protection4. 100% fully load burn-in test5. Built-in EMI filter, low ripple noise6. Low cost, high reliability7. CE and FCC approval Specification: 1. LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency. 2. Product interference, through the EMC testing, ripple ? 50MV. 3. Efficiency above 80%, temperature ? 25 °C. 4. LED switching power supply with overvoltage protection, short circuit protection, overload protection.5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.6. Products have the anti-interference ensures long-life LED strips, reducing the LED lighting decline. Package includes:
1 x Power supply
