Description
Feature:Driver-free, support XP WIN7, WIN8, WIN10, 32 or 64 bit system. 1. Output frequency range: ADF4351: 35M-4.4G/ADF4350: 138M-4.4G2. Power supply mode: DC002 interface DC4-9V typical 5V power supply3. Refer to the ADI official evaluation board line and layout4. Output signal: 2.2-4.4G fundamental wave (sine wave), 35M-2.2G fundamental frequency division (square wave)5. Output signal interface: SMA female6. Default +-50ppm 25M imported active crystal oscillator. Provides PDF circuit diagram and STM32 test program.7. Control mode: Three-wire SPI. Lead control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping, stepping can be 1K, low frequency stepping can be up to 0.1K, according to crystal To decide.8. External MCU control interface for easy control
Package includes:

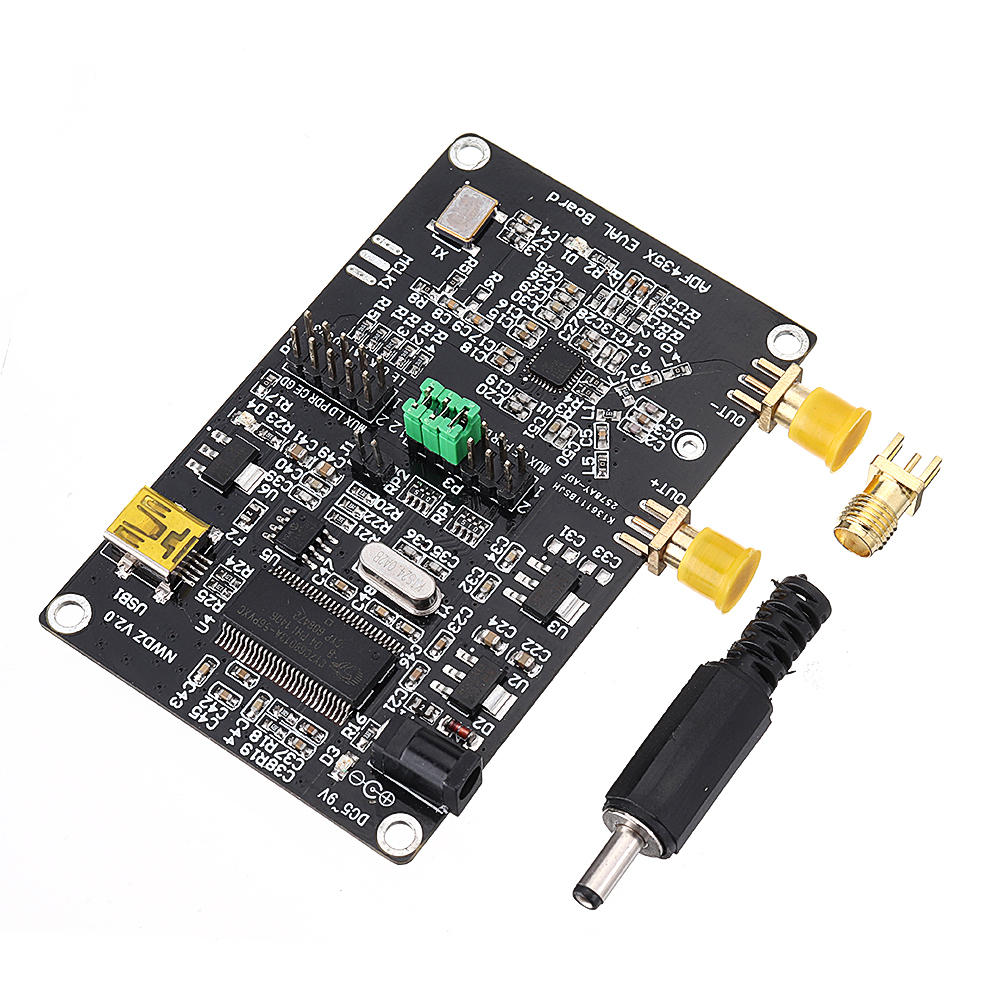

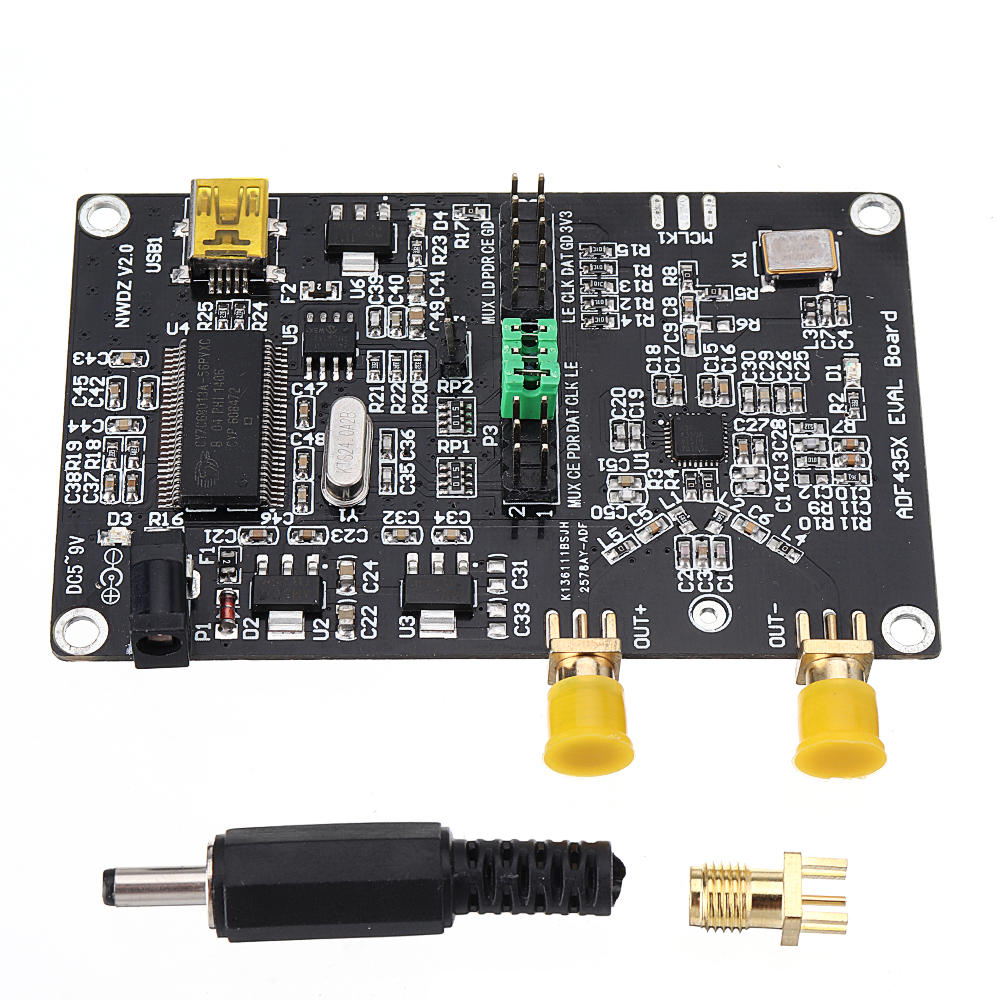

1 x Board
