Description

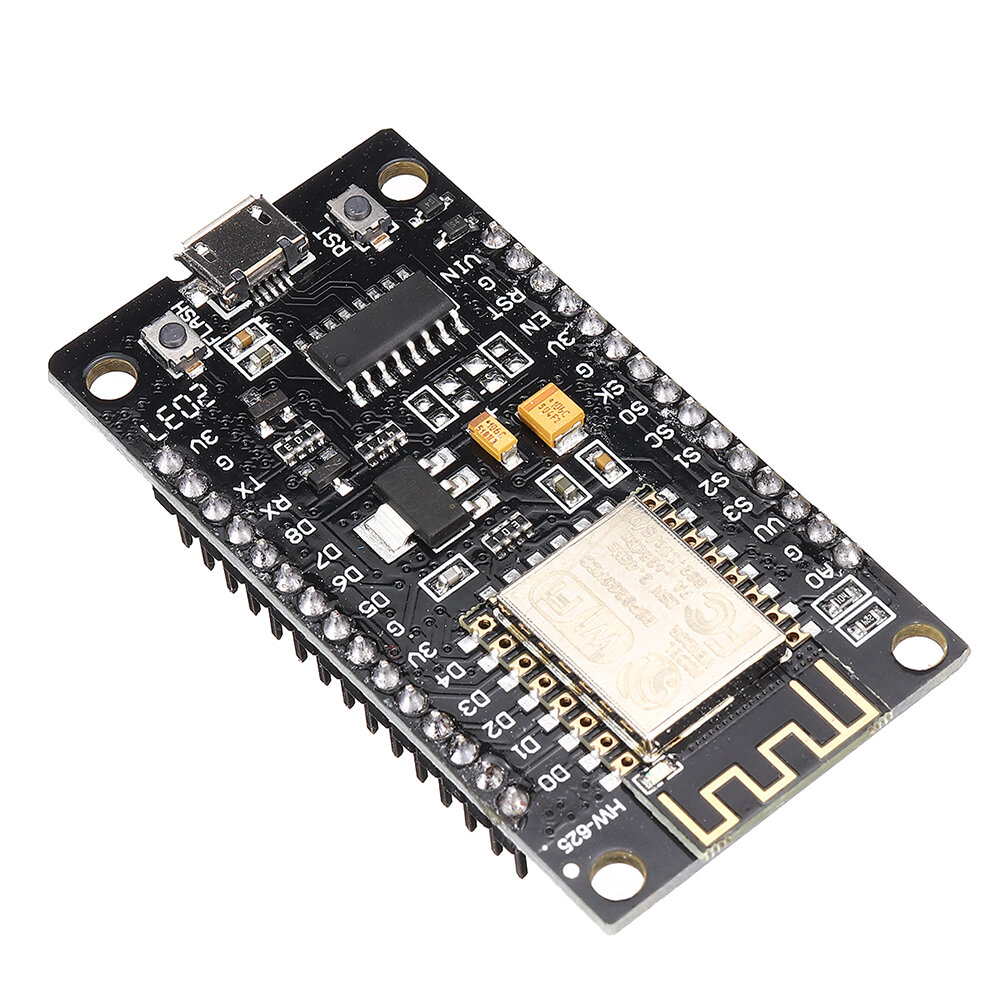

Product description:NodeMcu Lua WIFI Module- The chip model: CH340G- Output voltage: 3.3V- Input voltage: 5 V- WLAN-Standard 802.11b/g/n- PWM/I2C/SPI/UART- Dimensions: 58 x 31 x 13 mm
GY-BMP280 Sensor Module- Supply Voltage: 1.8 - 5V DC
Operational Range:- Temperature: -40 ~ +85°C- Humidity: 0~100%- Pressure: 300~1100 hPa
Resolution:- Temperature: 0.01°C- Humidity: 0.008%- Pressure: 0.18Pa
Accuracy:- Temperature: ±1°C- Humidity: ±3%- Pressure: ±1PaI2C address:- SDO LOW : 0x76 SDO HIGH: 0x77
0.96" OLED display- Size: 0.96 inch- Controlling Chip: SSH1106- Display Area: 29.42*14.7 MM(1.16*0.58 IN)- Driving Voltage: 3.3V-5V- Operating Temperature: -40~70 ?- Interface Type: IIC- Light Color: Blue Yellow
Jumper wire- Material: Copper-clad aluminum and PVC.- Each cable length: 10 cm- Quantity: 40 pin- Type: Male to Female / Female to Female
Breadboard- Dimensions: 82mm x 55mm x 8.5mm- Board Material: White ABS plastic- Internal Contacts Material: Phosphor bronze finished.- Board Base: Self-Adhesive Tape- Socket Pitch: 2.54mm- Dimension: 84 x 55 x 8 mm
Micro USB cable- Color: Blue- Length: 1 meter

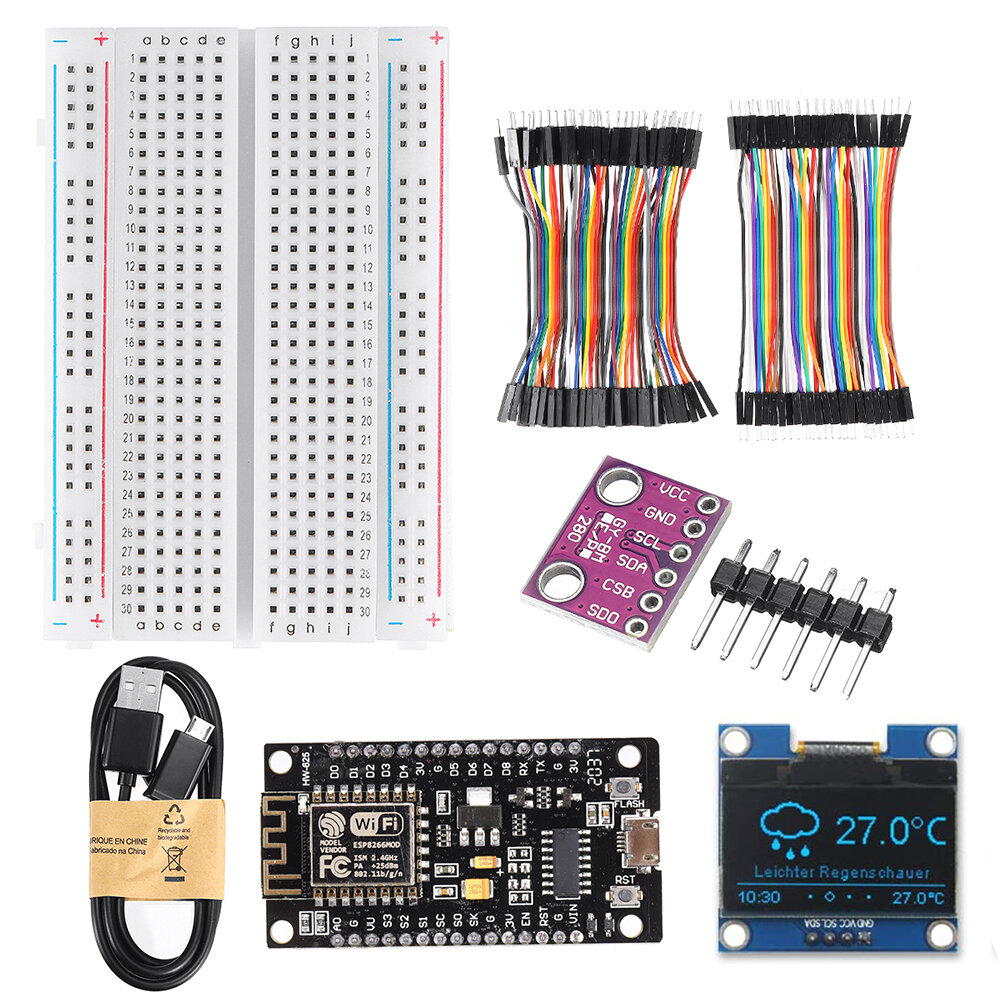

Package Included:
1 x NodeMcu Lua WIFI Module1 x BMP280 Sensor Module1 x 1.3" OLED display1 x Breadboard1 x Male to Female jumper wire1 x Female to Female jumper wire1 x Micro USB cable
