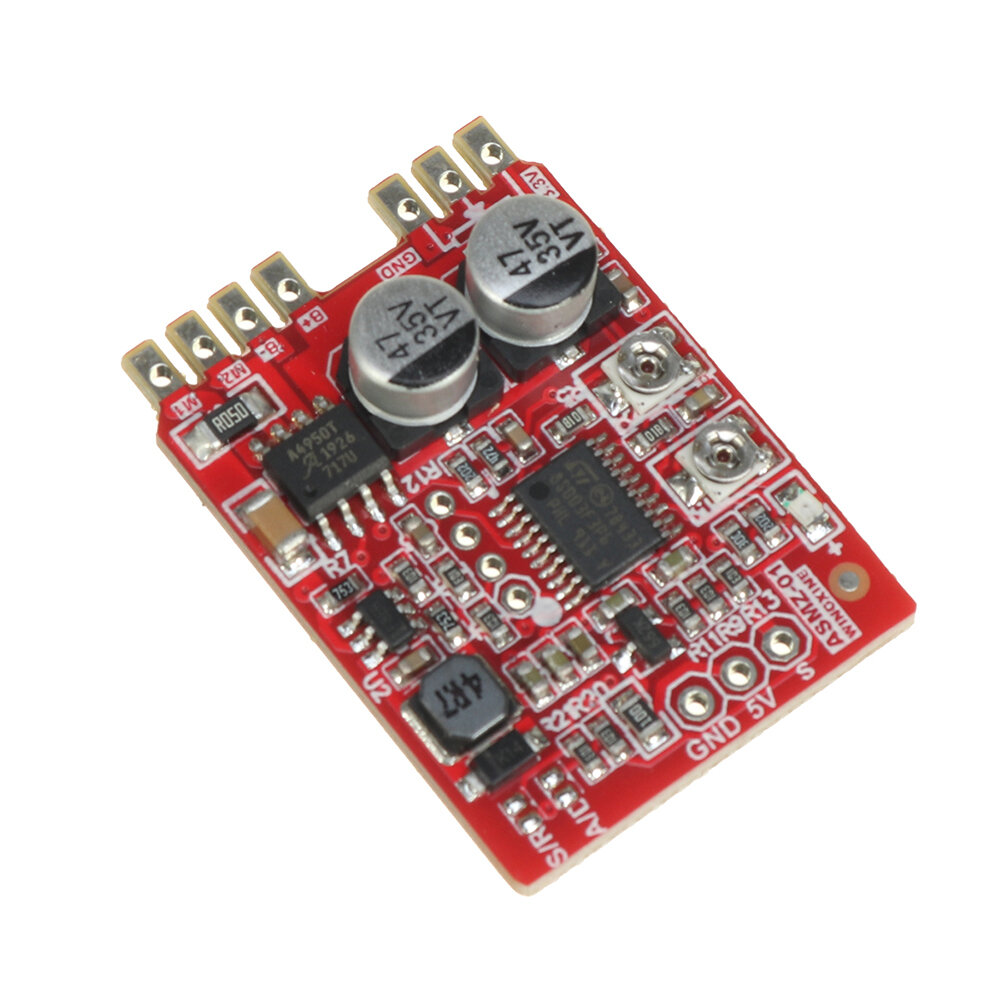

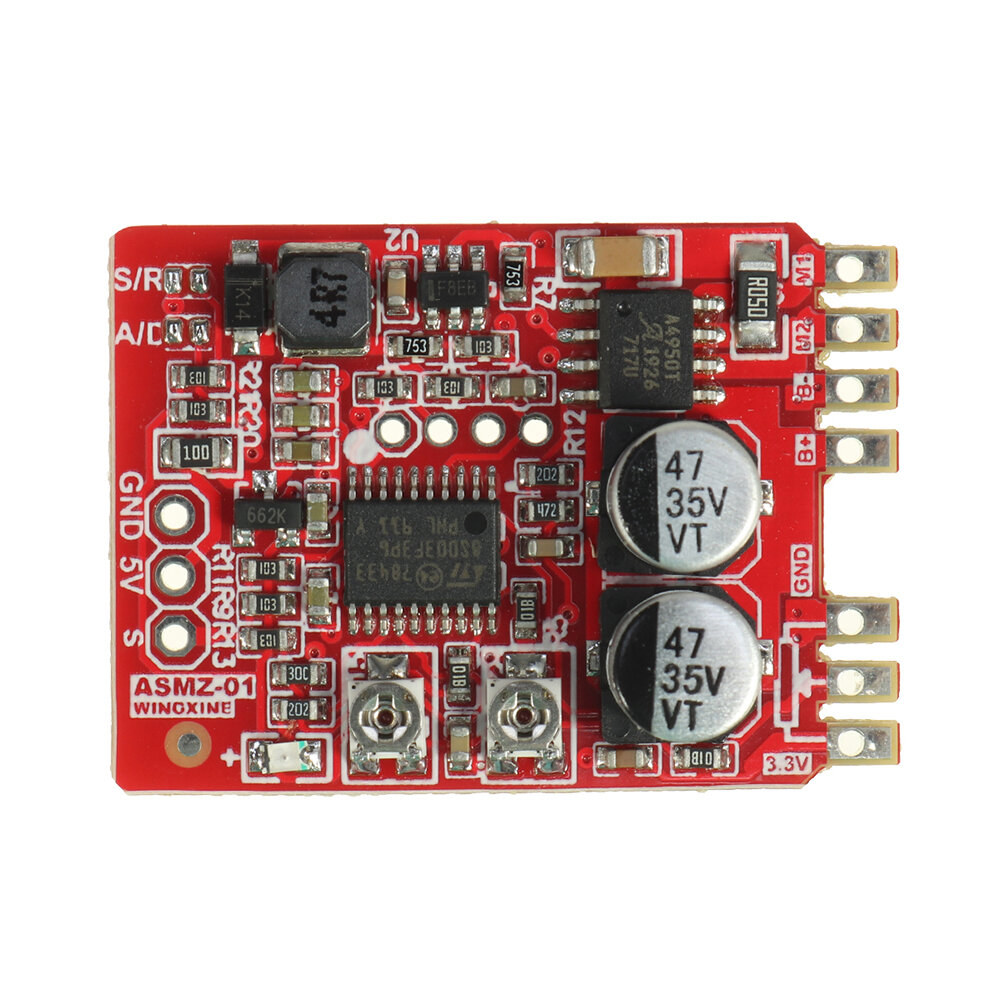

Description
Description:Suitable for steering gear controller, model airplane wireless remote control and analog voltage control. Cooperate with high-torque output of metal gear high-power motor. With current limiting protection function. Easy to install, sturdy and durable. Can be assembled into a steering gear.Application scope: Wireless follow focus angle servo control; Micro-mechanical angle control; Precise control of valve angle; Camera PTZ remote control; Various occasions requiring angle control.1. This wiring diagram is the first part to be assembled with the steering gear controller and must be done. No matter which input mode is used, the basic wiring must be done according to this step.2. Do not reversely connect the positive and negative poles of the power supply, as the reverse connection will burn the controller.3. The sliding end of the angle feedback potentiometer must be connected to the IN end of the corresponding channel. Wrong connection will cause damage to the controller and potentiometer
Parameter:
Rated voltage: 7V~24V/DC (5V/MIN~24V/MAX, limit voltage)Quiescent current: less than 25mAWorking angle: related to the maximum electrical stroke of the selected sensorRC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50HZ (frequency)2ms pulse mode: 0.5ms~2.5ms (pulse width)/50HZ (frequency)Analog voltage mode: OV-5V input voltageSensitivity: 0% (stopped) ~ 100% (fastest response speed)Angle scaling: 0%(0°)~100% (maximum angle range)Application scope: robots, manipulators, manipulators, pan-tilt control, valve control, production line robots, camera pan-tilt control, etc.Limit voltage: 5V-24V/DC (MAX)Current limit value: 2.5A +/- 0.1A (MAX)Working angle: related to the angle sensor usedRC mode: 1ms pulse mode: 1ms~2ms (pulse width) 30Hz~400Hz (frequency)2ms pulse mode: 0.5ms~2.5ms (pulse width)/30Hz~400Hz (frequency)Analog voltage mode: OV-5V input voltageLow-power steering gear controller seriesASMZ-01RC pulse/analog voltage controlColor: redMaterial: PCB+metalSize: 33 x 24 x 6mmWeight: 4.0g
Package included:
1 x Servo controller
