Description

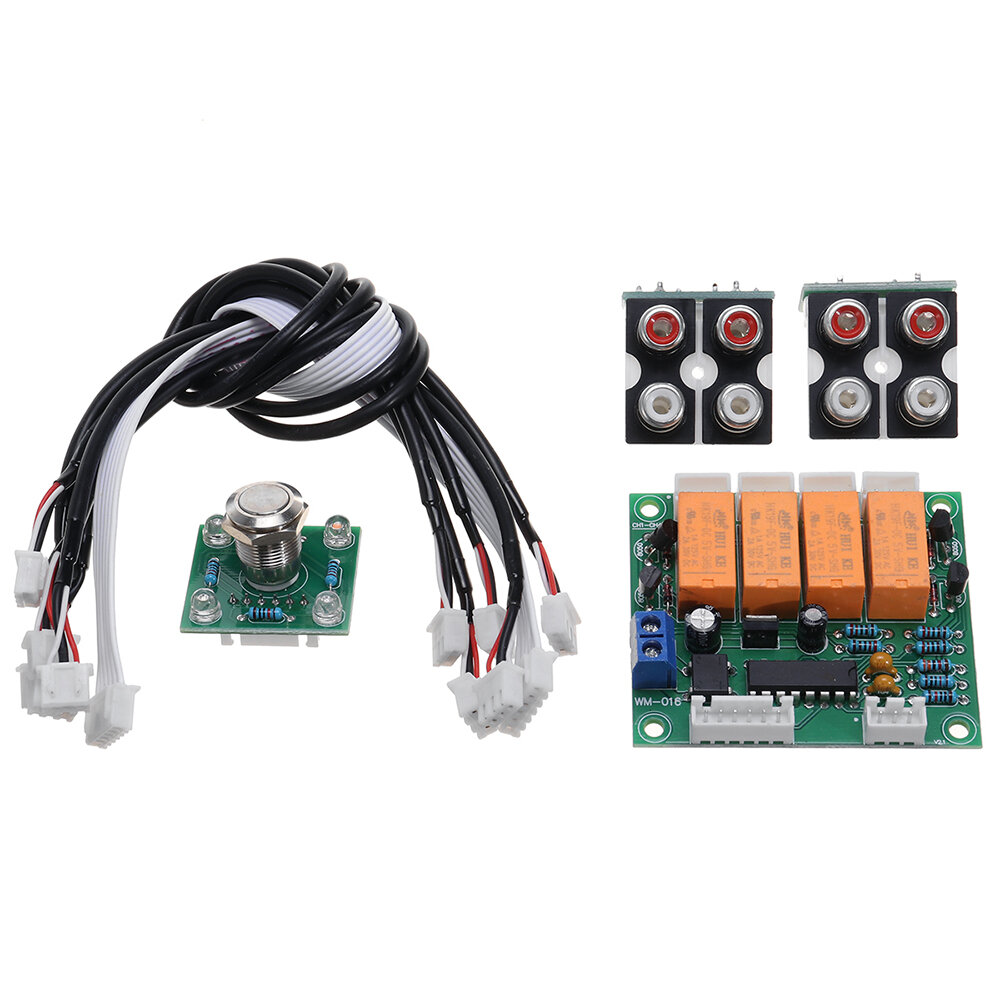

Parameter Description:Name: Audio signal switcherVoltage: DC 7V-24V, AC 6V-18V, AC and DC universal regardless of positive or negativeFunction: four in one out (four groups of audio signals are connected at the same time, and one group of signals is output)Method: Push-button switch, the first group of output is defaulted, press once to switch one groupFeatures: Relay switching, zero lossApplication: computer, TV, mobile phone, home theater, etc.Product size: 60*52*15mmProduct weight: 50 grams
Operation guide:
1. Supports four groups of input signals, with the switch button, one of the outputs can be selected, and the default is onThe first group of signals is connected;2. Use the relay to switch the four-way signal, basically there is no loss;3.Wide voltage range, DC 7V-24V, AC 6V-18V, AC and DC universal regardless of positive and negative;4. This product has no signal amplification function, just switching the signal source;5. The control board has four kinds of signal lights, each group corresponds to one signal, and the switch is clockwise.Top left ? top right ? bottom right ? bottom left ? top left, cycle in turn;6. The control board can be fixed on the panel, please adjust the hole position of the panel first, and then solder the PCBButton soldering point on the board
Package includes:
1 x Audio signal switcher
