Description
Description :Baofeng UV-5RA Blue Dual Band Handheld Transceiver Radio Walkie Talkie
Brand Name : Baofeng
Model Number : UV-5RA
Type : Two Way Radio
Voltage : 7.4V
Weight : 0.55kg
Talk Range : 5-8KM
FM radio : 65-108MHz
Storage Channel : 128
Dimensions : 58 x 32 x 110mm
Frequency Range : 136-174MHZ/400-520MHz
Features :
Frequency Range : 136-174 / 400-520MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power : 4 /1Watts
128 Channels
50 CTCSS and 104 CDCSS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step : 2.5/5/6.25/10/12.5/25KHz
ROGER SET
Specification : Item numberUV-5RAFrequency Range65-108MHz (FM Receive only)136-174MHZ and 400-520HZ (TX/RX)Channel No.128Frequency Stability±2.5ppmAntennaHigh gain DualBand antennaAntenna Impedance50?Operating VoltageDC 7.4VMode of operationSimple or semi-duplexDimension(W x H x D)100 x 58 x 32 mmWeight250g(including battery, antenna)TransmitterOutput power4W / 1W (Max 5W)Modulation Mode16k?F3E / 11k?F3EMaximum deviation<5kHz(Wide) / <2.5kHz(Narrow)Spurious Radiation<7?WAdjacent Ch. power?-65dB(Wide) / ?-60dB(Narrow)Pre-emphasis characteristics6dBCurrent?1.6A(5W)CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)Intermediation sensitivity8-12mvIntermediation distortion<10
Package included :
1 x Baofeng UV-5RA Handheld Walkie Talkie
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Dual Band SMA-Female Antenna
1 x Belt Clip
1 x Earphone
1 x Hang Rope
1 x Desktop Charger ( 100V ~ 240V ) (US/EU/UK power plug optional)
1 x English User Manual

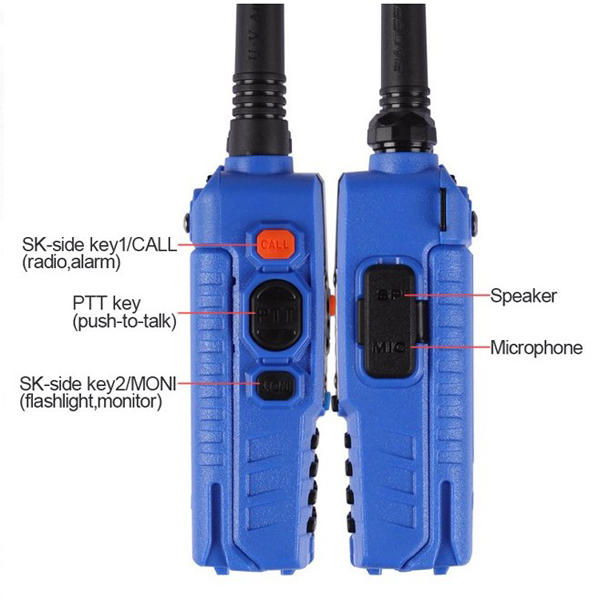

Details pictures :
