Description
1#: No password2#: password 1234>>>Manual: Click here to open<<<
Specifications:

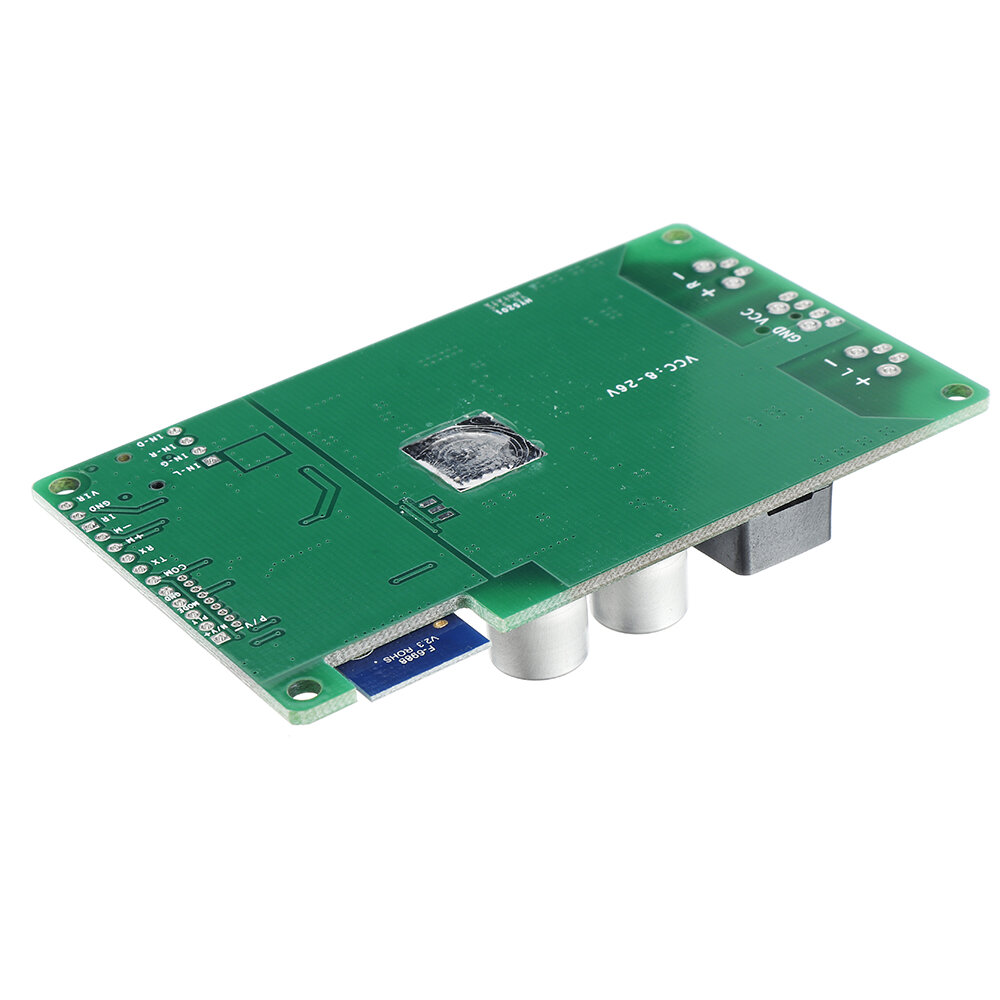

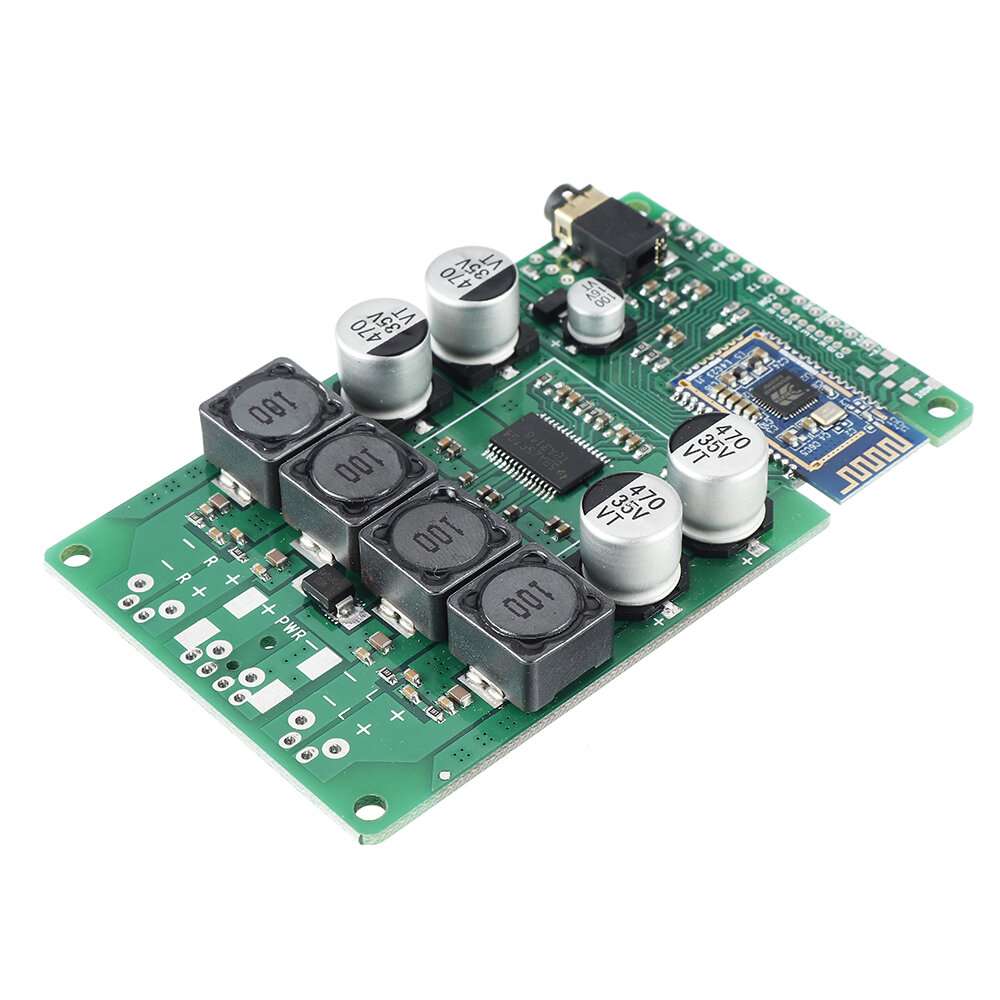

1>.Power amplifier board size: 7.8x5.2CM2>.Fixed hole distance: 7.3x4.7CM3>.Bluetooth 5.0, support serial port to change the name and password, support button to turn off / boot, support serial port to change the tone volume and off, power on, no call function, the default volume is the largest4>.TX, RX, GND: TTL serial port configuration 9600, N, 8, 15>.At 24V4A, the maximum output power is 2x30W, and the power varies with voltage.6>.Suitable impedance: 4/6/8 ohms8>.8-26V power supply with reverse connection protection, support for laptop power adapter9>.Board and device, excellent workmanship, material and reliable quality.
Package Included:
1 x Bluetooth 5.0 Power Amplifier Board 2x30W/20W
