Description
Specification:Model: MT10AInput voltage range: 18 -45VInput current: max 10AOutput voltage range: 24-85V (default 57V)DC-DC efficiency: 92%-97%MPPT tracking efficiency: 99.5%Working temperature: -20~+60?Size: 123*70*50mmWeight: 300g
Note:
1. The battery stores a lot of energy. In any case, be sure not to short-circuit the battery. We have connected a 10A fuse to the battery for you.2. This controller is a boost type, so the input voltage must be lower than the output voltage!
Operation :
Connection settings: connect the photovoltaic panel first, and then connect the battery.Display switching: short press to switch to display [output voltage] [output current]Set the charging voltage: long press to make the number flash, then short press to adjust, +0.1V each time, or long press +1V each time, after the adjustment is completed, wait for the number to stop flashing and then automatically save.Error Code:E06 -- Input high voltage protectionE08 -- Input low voltage protection
Battery voltage type and setting value:
Battery TypeVoltage TypeString NumberCharging Voltage Setting ValueTernary Lithium Battery24V7S7*4.2=29.4V36V10S10*4.2=42V48V13S13*4.2=54.6V52V14S14*4.2=58.8V60V16S16*4.2=58.8V64V17S17*4.2=71.4V72V20S20*4.2=84VLithium Iron Phosphate Battery24V8S8*3.6=28.8V36V12S12*3.6=43.2V48V16S16*3.6=57.6V60V20S20*3.6=72V72V24S24*3.6=86.4VLead-acid Battery24V2S2*13.8=27.6V36V3S3*13.8=41.4V48V4S4*13.8=55.2V60V5S5*13.8=69V72V6S6*13.8=82.8V
Package Included:

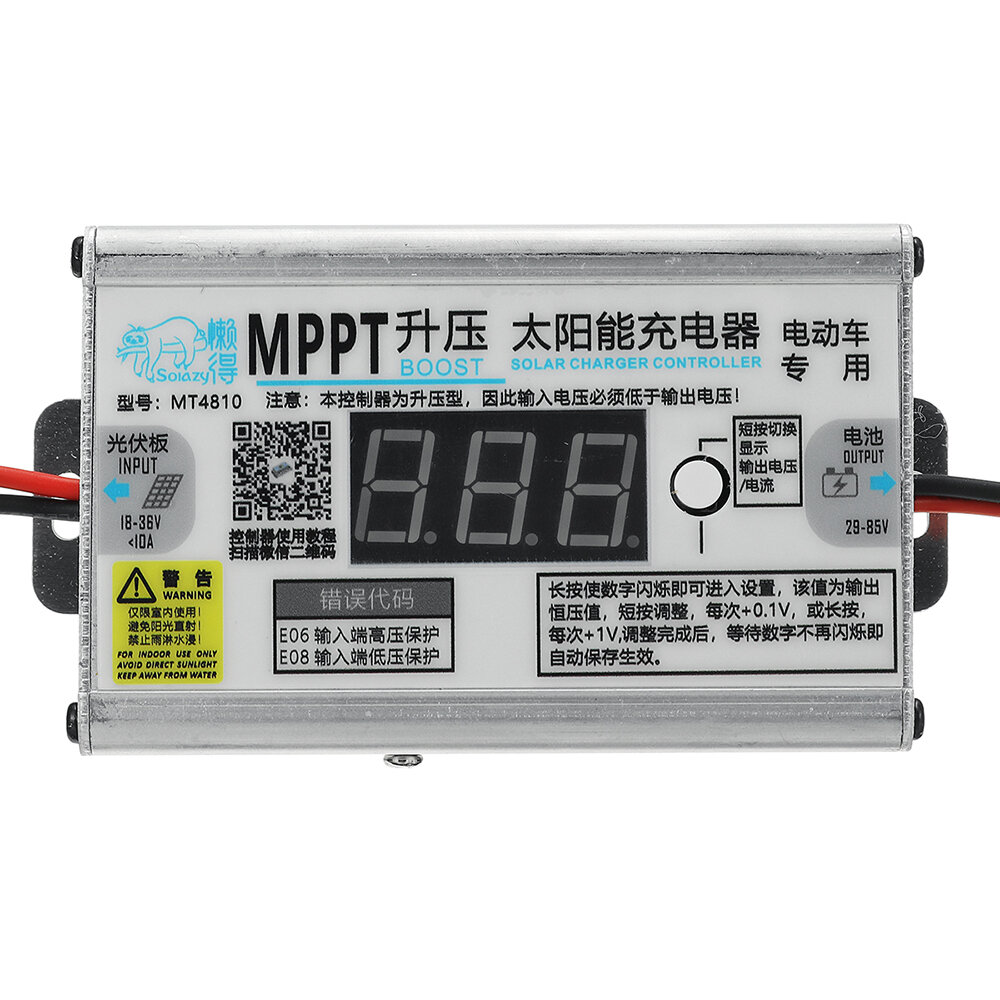

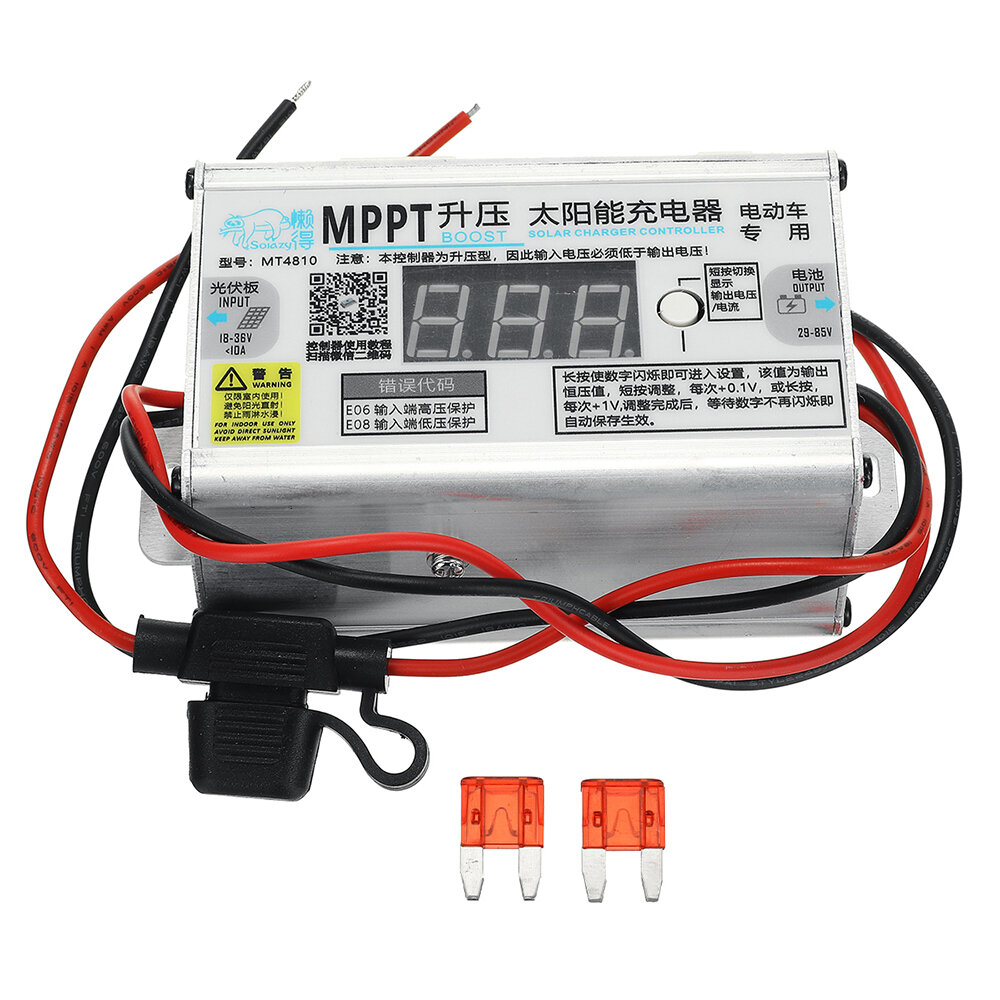

1 x Boost MPPT Solar Controller for 24V 36V 48V 60V 72V Battery
