Description

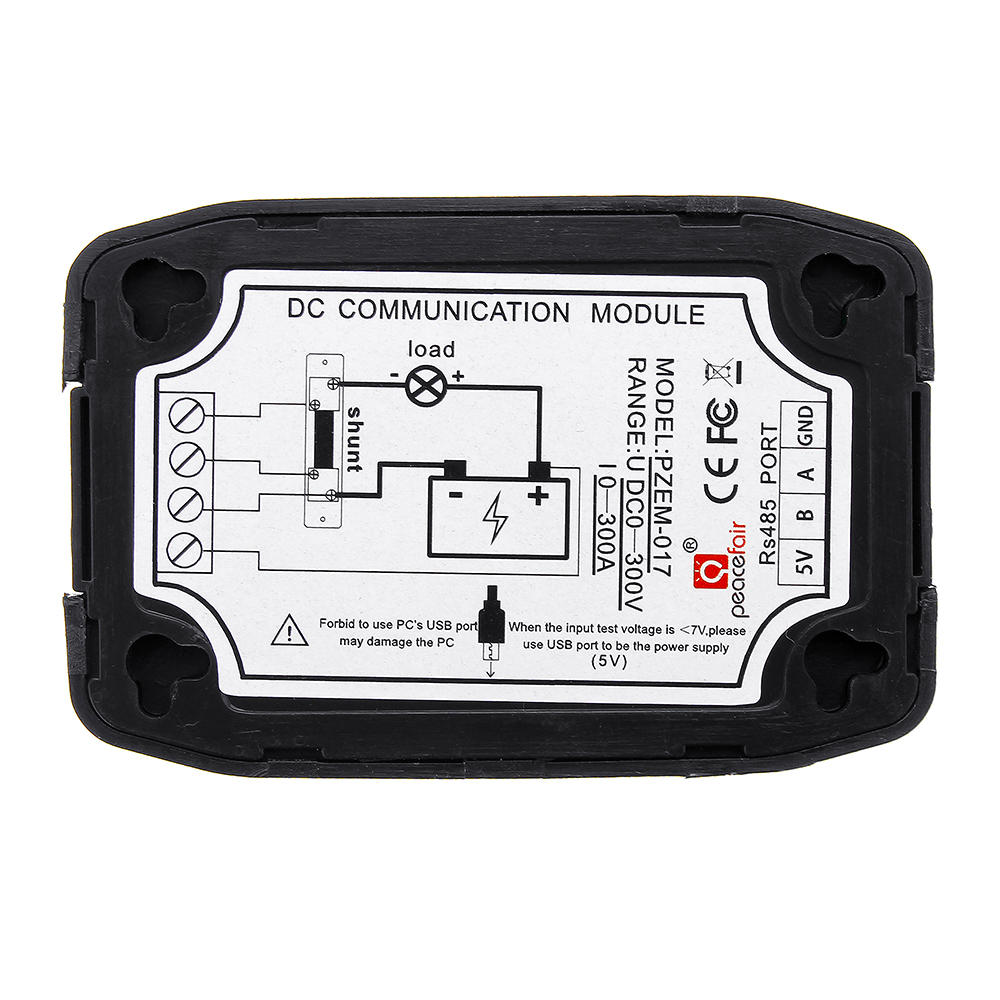

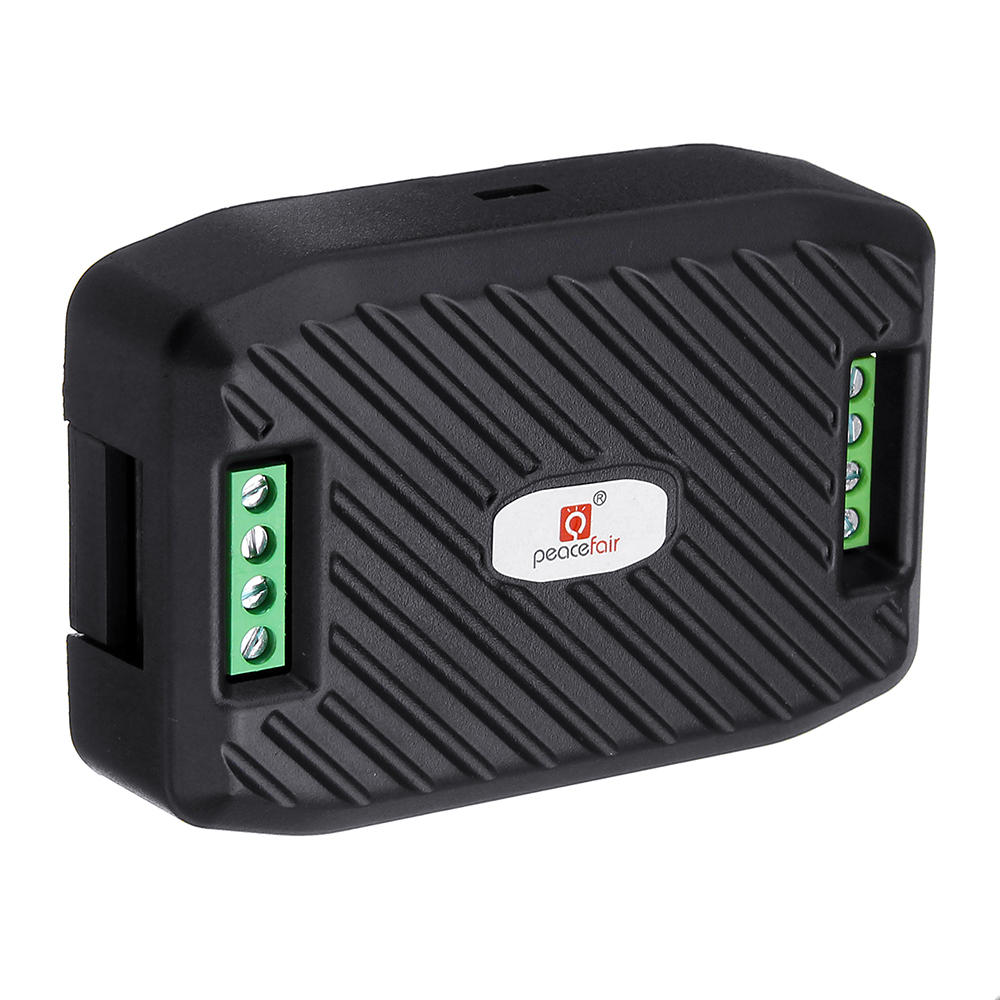

Specifications: Measurement accuracy: 1.0 gradeWorking temperature:-20?~ +60?Communication port:RS485Power Supply:DC Certificate:CE,FCCDimensions:90*60.5*23mm(L*W*H) Function and Display Format: Voltage 1. Measuring range:0.05-300V. (when the test voltage is 7V, please use the independent power supply mode) Resolution:0.01V.2. Measurement accuracy:1%. Current 1. Measuring range: 0.02-300A(PZEM-017).2. Resolution:0.01A3. Measurement accuracy:1% Power 1. Measuring range:0.2-90kW(PZEM-017)2. Resolution: 0.1W3. Measurement accuracy:1% Energy Consumption 1. Measuring range: 0-9999kWh2. Resolution: 1Wh3. Measurement accuracy:1% Over Voltage alarm 1. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm2. The default high voltage threshold is 300V, the default low voltage threshold is 7V. Note: Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC ! Package Included: 1 x PZEM-017 Communication ModuleIf you are looking for 10A PZEM-003 click here 1386555
