Description

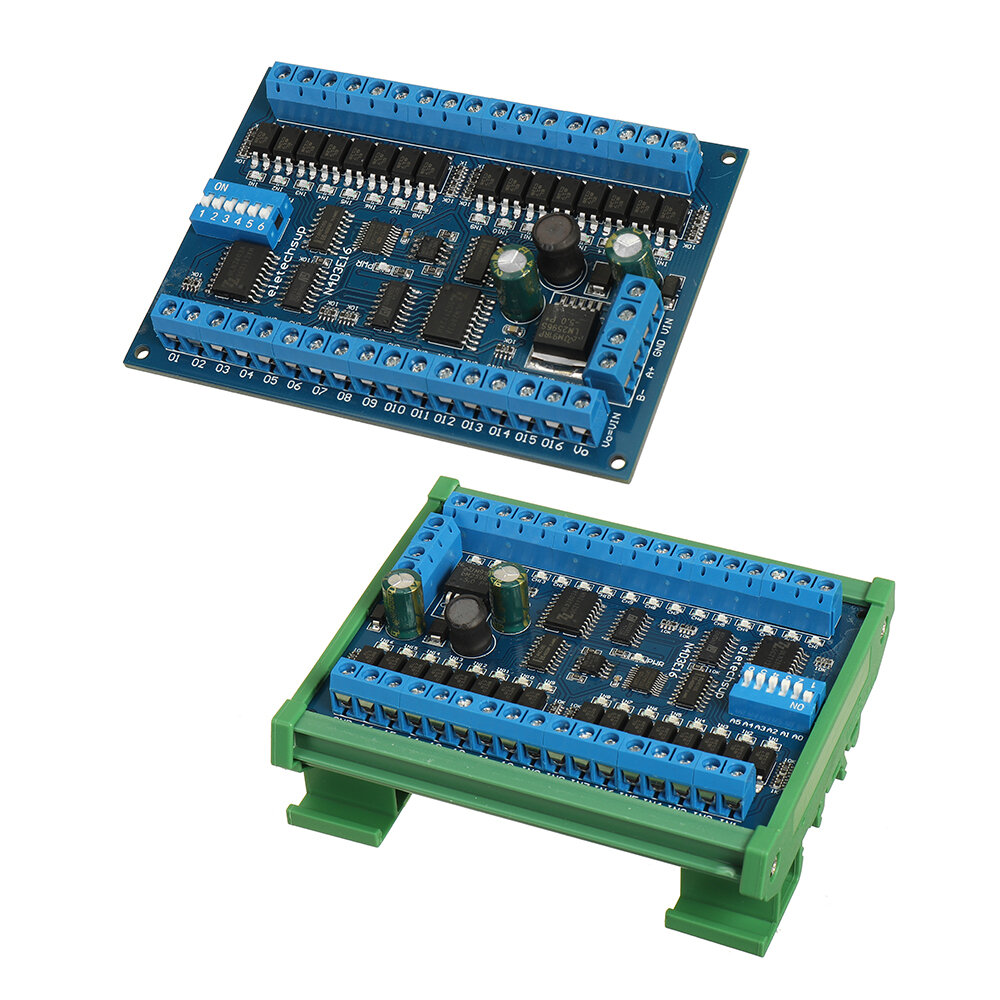

Desription:1. Working voltage: DC 6.5-30V (7.5V 9V 12V 15V 24V)2. Working current: 8-50MA3.16 optically isolated input ports (NPN low-level effective)4.16 Darlington output (ULN2803 NPN output)5. "Open", "Close", "Instantaneous", "Self-lock", "Interlock", "Delay" 6 commands6. 16-channel input can remotely control 16-channel output of another board through RS485 bus (relevant registers need to be set)7. MODBUS RTU instruction, support 03 06 function code (some registers support 16 function code)8. Under the "Delay" command, the maximum delay is 255 seconds;9. MODBUS commands can be entered in the serial port terminal (serial port assistant) OR Modbus Poll;10. In MODBUS command mode, up to 64 devices can be connected in parallel11. The default baud rate is 9600BPS. The baud rate can be selected by jumpers: 2400 4800 9600 19200BPS12. Size: 100 * 72 * 20mm (PCB board only); 120 * 88* 42mm (with DIN rail box)13. Weight: 64g (PCB board only); 143g (with rail box)14. Maximum load: the maximum load current of each channel is 300MA
DIN rail box parameters:
Product model: UM72Color: greenWidth: suitable for PCB board width UM72 (72mm)Insulation grade: flame retardant VO gradeBackplane length: suitable for 100 mm PCB boardNet weight: 72gInstallation method: DIN35 and C45 rails???????
Application:
PLC IO expansion boardSmart home, home automation, smart home;PTC cameraSecurity MonitoringRecognition system;Web cameraLED light driverAutomatic curtain control
Package includes:
1 x Module
