Description
Overview:The newly developed and produced new learning code 6-way remote control switch is upgraded on the basis of the old model, and adopts the American industrial control shell design in appearance, and the style is more elegant. The terminal is upgraded. When the interference is strong, the suction cup antenna and the high-sensitivity receiving module can be connected to enhance the signal receiving ability. Chip IC upgrade, using IC that can be burned multiple times, and the program can be changed according to customer requirements. Each relay has an independent working indicator. Another buzzer prompt function.
There is no need to use traditional jumpers or DIP switch coding, and the wireless signal transmitted by the remote control needs to be received and stored by the receiving controller to achieve supporting use. If the learned remote control is lost during use, the information stored in the receiving controller needs to be cleared, and the lost remote control will not be able to remotely control the receiving controller. If you want to regain the right to use, the owner must restart it. It can be used after learning once. There are six output modes that can be switched.
Mainly used in electric doors, windows, lifting equipment, gateways, elevators, industrial control and security industries and other fields.
Parameter:

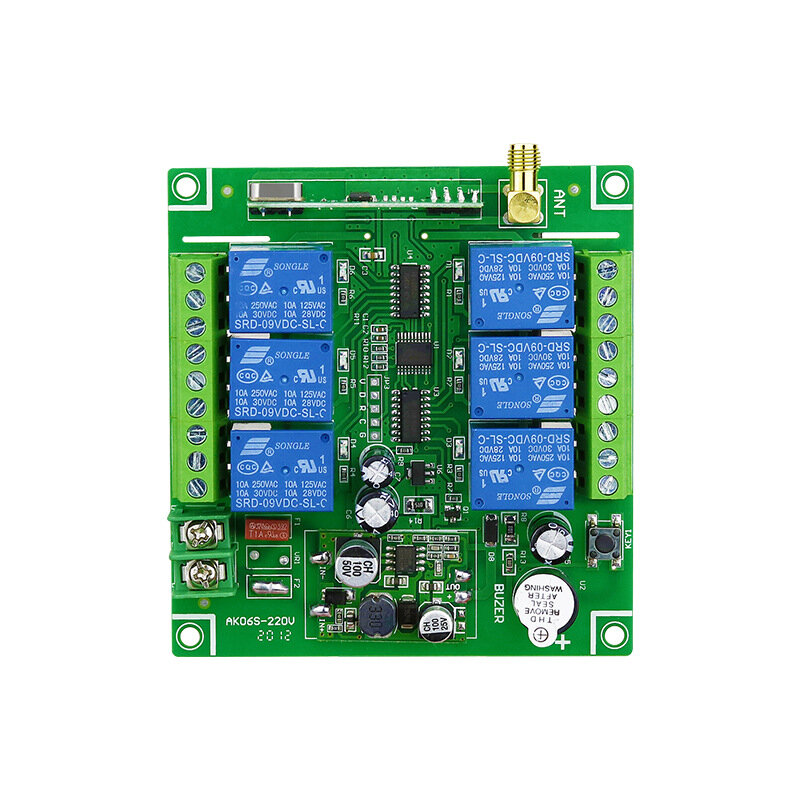

1. Working voltage: DC24V/AC220V(Optional)2. Working temperature: -40?-+80?3. Receiving sensitivity: ?-105dBm4. Working frequency: 315MHz, 433MHz (Optional)5. Output voltage: AC and DC optional6. Output current: ?3A7. Weight: 0.17KG8. Size: circuit board: 87*92.6*16.4mm with shell: 90*115*40 mm
Output method:
Signal jog-press the remote control button 1 to learnSignal interlock-press the remote control key 2 to learnSignal self-locking-press the remote control key 3 to learn
1-3 jog, 4-6 self-locking-press the 4th button on the remote control to learn1-3 jog, 4-6 interlock-press the 5 key of the remote control to learn1-3 interlock, 4-6 self-locking-press the No. 6 button on the remote control to learn
Learning methods and steps:
1. Press the learning button of the receiver-the buzzer sounds, indicating that it has entered the learning state.2. Press any key on the remote control-the buzzer stops ringing, indicating that the learning has been successful.
Clear saved information:Long press the receiver learning button until the buzzer stops, indicating that the stored information has been successfully cleared.
Package included:
1 x Switch1 x Remote Controller
