>>>Manual: Click here to open<<<Overview:

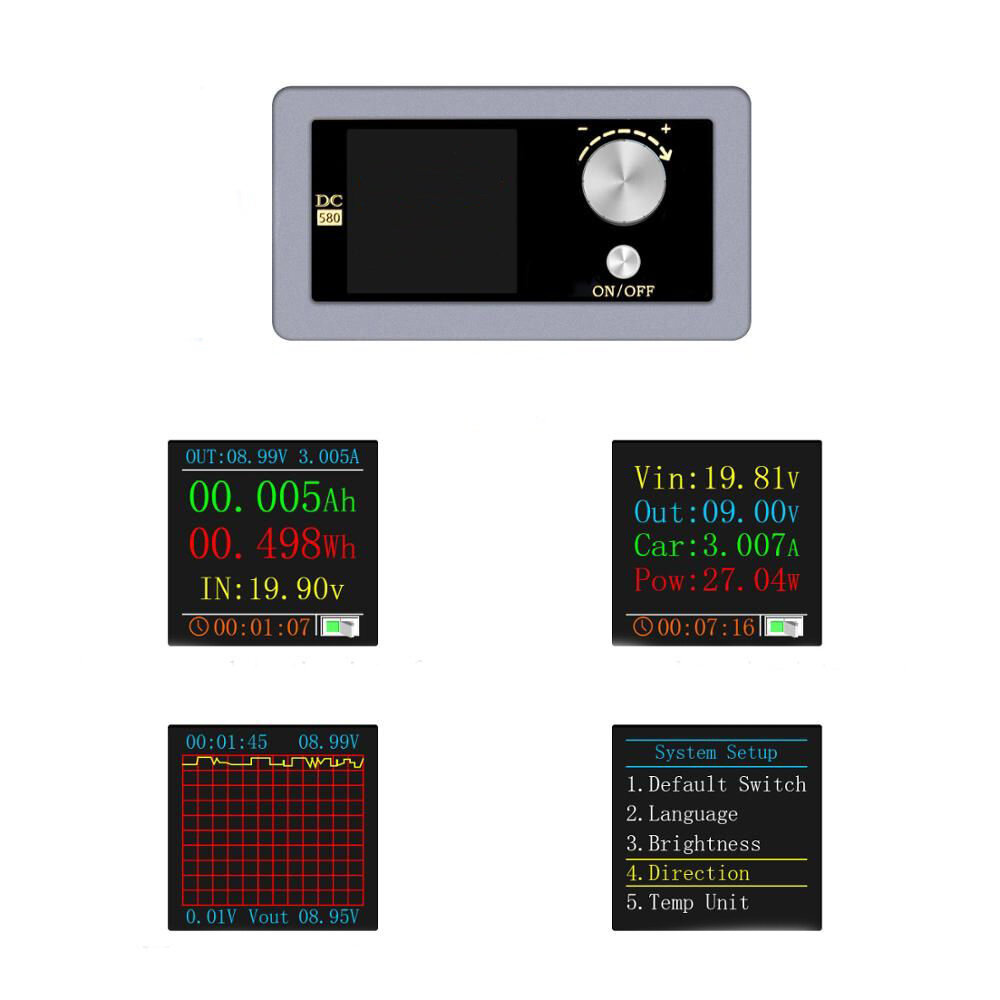

DC-580 NC step-up and step-down adjustable power supply is small in size, powerful in function, stable in performance, high in precision, and has various humanized system settings. Adopt 1.44 inch LCD high-definition display screen, display a variety of data on one screen, the page is concise and rich.? Color screen display?? Minimal operation??SoftwareProtection??Intelligent temperature control Parameter Description:1, The parameters of DC-580 numerically controlled buck-boost adjustable power supply are as follows:DescriptionParameterInput voltage8V-32V (Note: the lower the input voltage, the smaller the output power)The output voltage1.8-32VOutput currentUp to 5AOutput Power80W (Note: It is necessary to ensure that the input source voltage is greater than 15V andthe power is greater than 100W when running at full load)Voltage resolution0.01VElectric current Resolution0.001A2?The protection mechanism parameters are described in the following table?Input anti-reverse connection, output anti-backflow, can charge the rechargeable battery directly, no need to add anti-backflow diode DesriptionParameterInput anti-reverseHaveOutput anti-backflowHaveOutput overvoltage protection (OVP)1.8V-32V custom adjustment, default 35VOutput overcurrent protection (OCP)0-5A custom adjustment, default 5AOutput over power protection(OPP)0-80W custom adjustment, default 80WOutput over temperatureprotection (OTP)45-120 ? custom adjustment, closed by defaultOutput timeout protection(OHP)0-100h custom adjustment, closed by defaultPower on default (ACQ)Off by default
Package Included:
1 x DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module
