Description
>>>Manual: Click here to open<<<Overview:

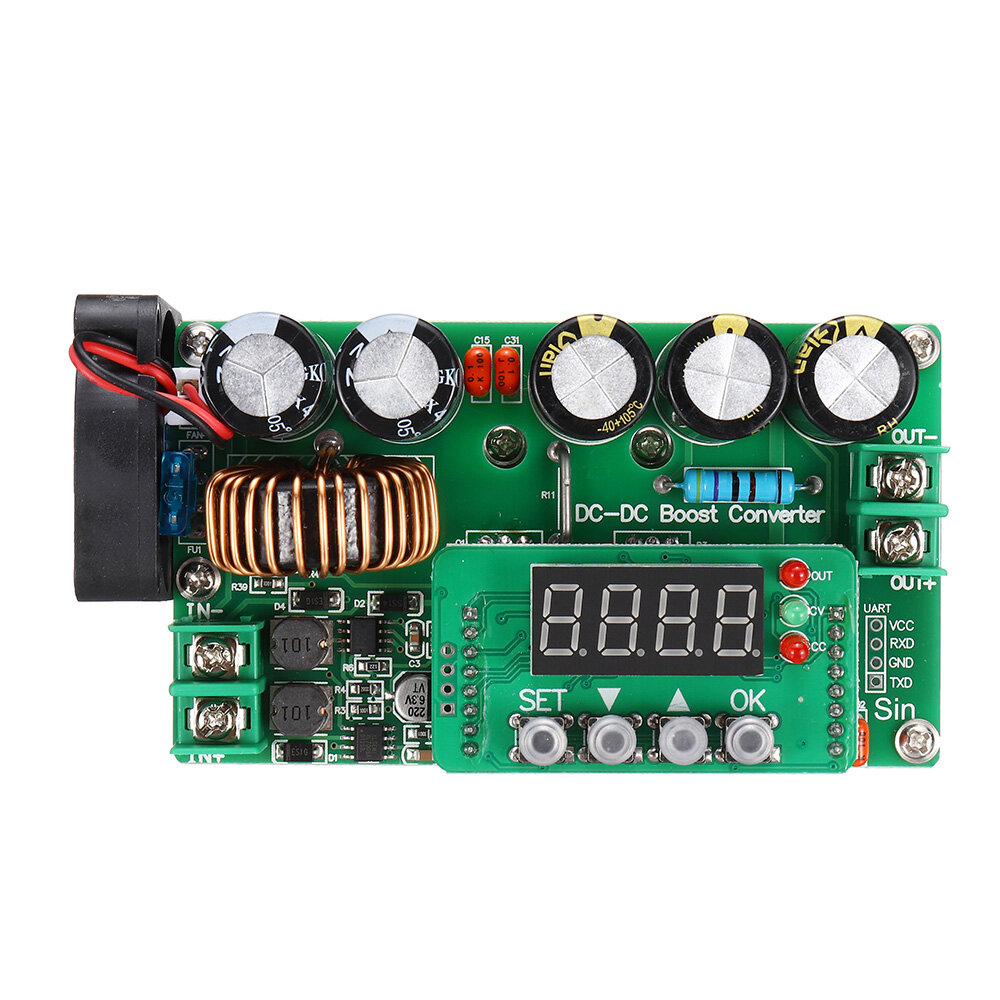

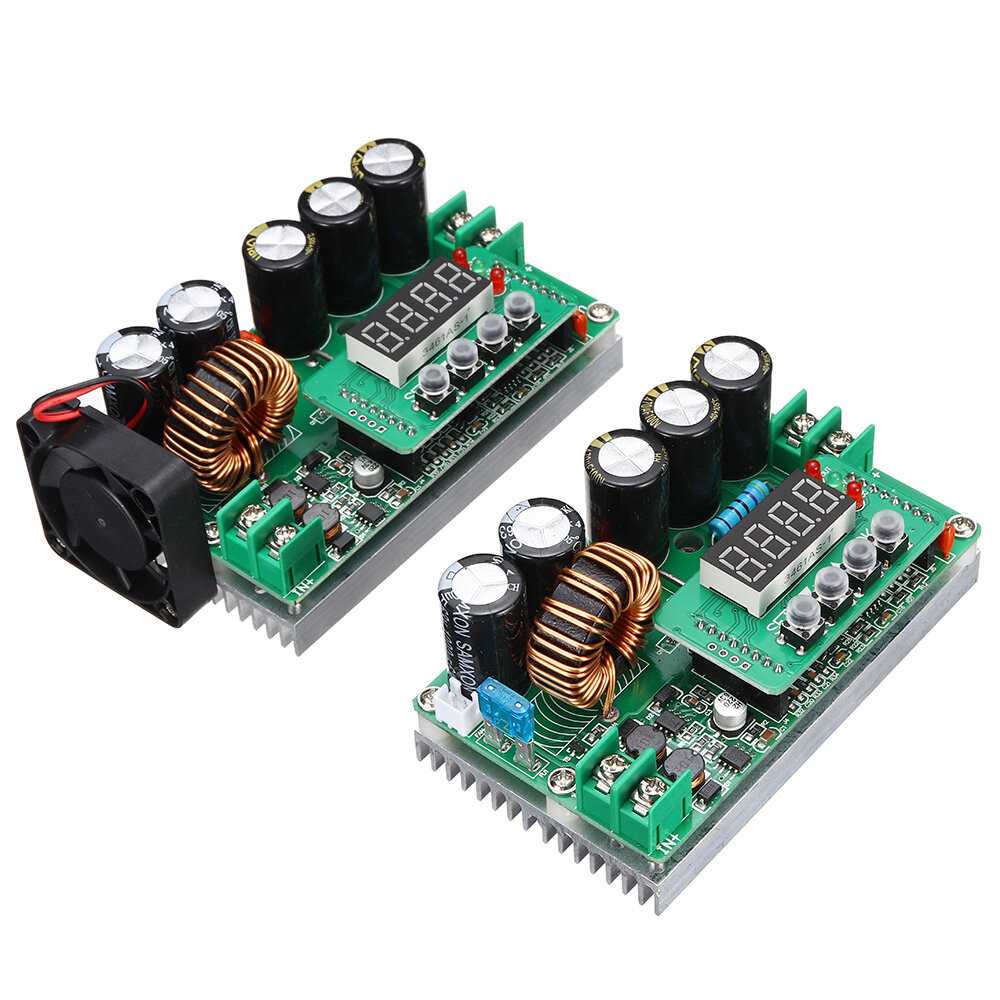

The 400W DC-DC numerical control boost module is a full digital display boost module with small size, high power, high efficiency and stable operation. It adopts advanced microprocessor control, the voltage and current are accurately adjusted by buttons, and can be output at constant voltage and current. Equipped with a four-digit eight-segment LED digital tube, which can display the output voltage and current in real time. At the same time, the numerical control boost module has a working status indicator, which can check the working status in real time. In addition, the machine has an automatic output function after power-on, which can be turned on or off as needed.
Feature:
1. The use of high-quality power devices and the CV and CC loops formed by peripheral precision op amps greatly improve the performance of the module;2. Two 1mm double-wire winding high-current inductors are used, the input uses two 1000uF/63V electrolytic capacitors, and the output uses three 470uF/100V electrolytic capacitors, with a fan for heat dissipation, low temperature rise, and very good output voltage quality;3. Full digital display, convenient and easy to use;4. It can output with constant voltage and constant current;5. The module has working status indicators, which are output OUT, constant voltage CV, and constant current CC indicators, which can check the working status in real time;6. Using advanced microprocessor, the button can accurately adjust the output voltage and current;7. Adopt 4-digit high-brightness digital tube, which can display output voltage, current, capacity and time in real time;8. It can be set to output automatically after power-on.
Specification:
Input voltage: 6-60VInput current: 10A (MAX)Output voltage: 6-90VOutput current: 0-9.99AInput power: 600W (MAX)Voltage adjustment/display resolution: 0.01VCurrent adjustment/display resolution: 0.01AOutput ripple: ?50mVShort circuit protection: 15A car fuseWiring mode: 8500 terminal blockProduct size: 104*60*44mmWeight: 295g
Package Included:
1 x Digital Controlled DC-DC Boost 400W/600W Module
