Description
Features:The latest revision instructions, the new version cancels the manual switch, the input selection is changed to automatic
When the COAX is input separately, it is the coaxial input mode;When the OPT is input alone, it is the fiber input mode;When OPT and COAX are input at the same time, it is the coaxial input mode, and the fiber will be automatically disconnected;To use the OPT input you need to unplug the COAX;
Sampling rate: 24Bit---96kHzSystem clock frequency: 256 fsSupply voltage: 5VInput interface: coaxial RCA, fiberOutput interface: standard IIS, left aligned, right aligned, format can be changed by yourselfFormat Setting? FMT1 FMT0 DOUT
0 0 16-bit?MSB-first?right-justified
0 1 24-bit?MSB-first?right-justified
1 0 24-bit?MSB-first?left-justified
1 1 24-bit?MSB-first?IIS
Package Included:

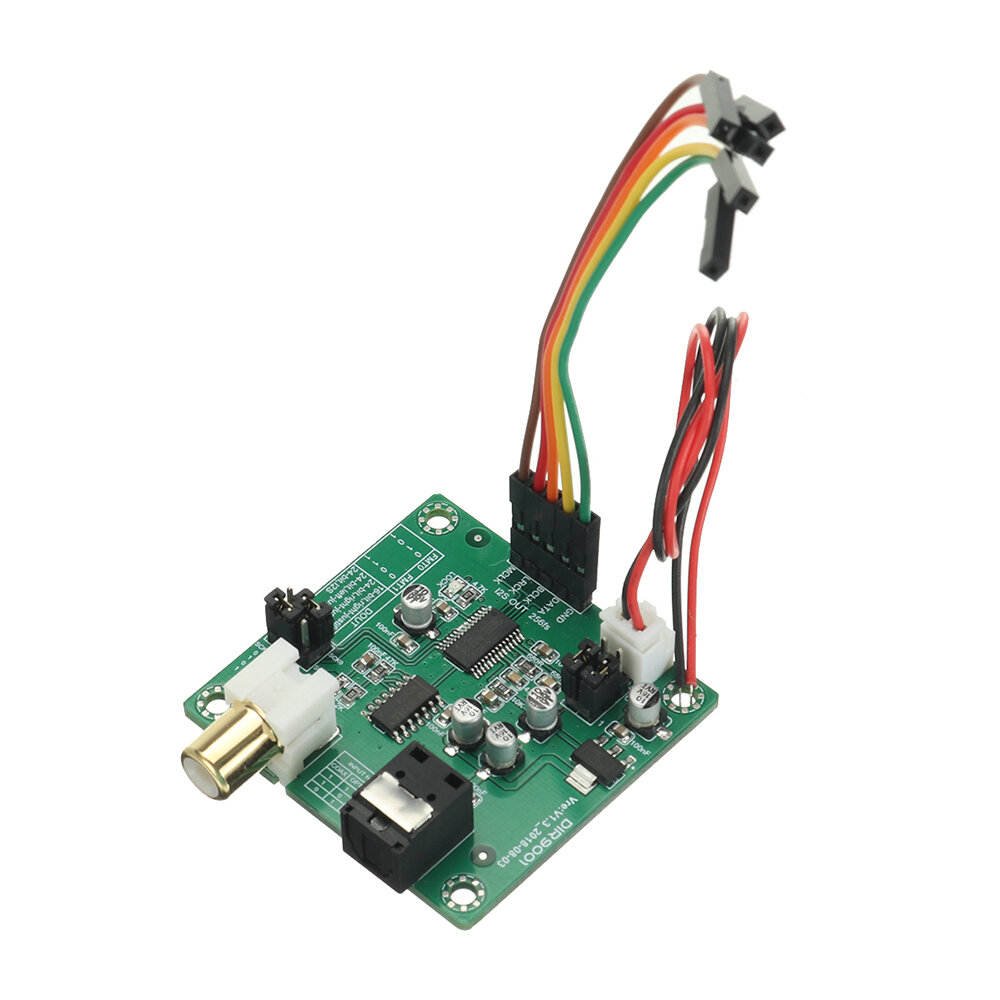

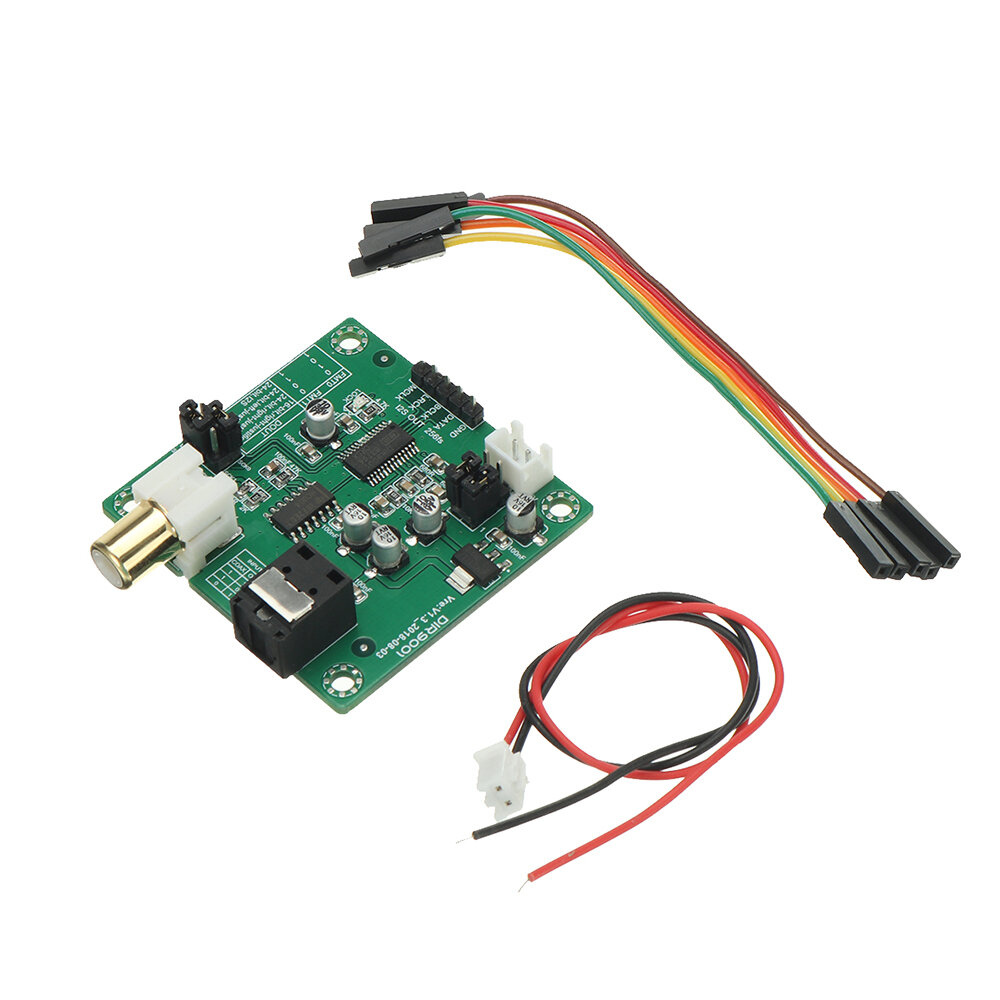

1 x DIR9001 Module Coaxial Optical Fiber Receiving Module
