Description
Overview:DKP3603 DC-DCThe digital controlled buck module is a programmable buck module with full digital display, Small size, High power, efficient, Stable work. Advanced microprocessor control, The voltage and current are precisely regulated by the key, Constant voltage and constant current output, Through the reserved port, it can communicate with MCU or computer, which is convenient for secondary development. With four eightLEDDigital tube, The output voltage can be displayed in real time, electric current. meanwhile, The digital control step-down module is equipped with working status indicator, The working status can be viewed in real time. This machine has automatic output function after power on, It can be turned on or off as needed,In addition, the machine also has the function of key locking, Lockable parameter adjustment button, To prevent the output voltage and current parameters from being mistakenly adjusted
Features:
1. Advanced microprocessors, The output voltage can be adjusted accurately by pressing the key, electric current;2. Bring your own2individualUSB2.0Charging interface, One is fixed voltage5V, Maximum current1Aoutput; The other is voltage0-36VAdjustable, Maximum current3Aoutput3. Lockable parameter adjustment button, Prevent misoperation and adjust output voltage and current parameters.4. Automatic output after power on can be set;
5. High quality power devices, The system is composed of external precision operational amplifier CVandCCRing Rd, The performance of the module is greatly improved;6. All digital display, Easy to use;7. It can keep the pressure constant, Constant current output;8. The module has a working status indicator, They are outputOUT, constant voltageCV, constant currentCCindicator light, The working status can be viewed in real time;9. modularThe reserved port can communicate with MCU or computer for secondary development.10. use4High brightness digital tube, The output voltage can be displayed in real time, electric current, capacity, time.
Specifications:
Input voltage range: 5-40VOutput voltage adjustment range: 0-36VOutput current adjustment range: 0-3AOutput power: 0-90WOutput voltage setting resolution: 10mVOutput current setting resolution: 1mAPower effect: CV?0.5%+10mV CC?1%+1mALoad effect: CV?0.5%+10mV CC?1%+1mAOutput ripple: <40mVpp (input 30V, output 12V, current 1A)100Hz fluctuating transmission ratio: <1/10000Typical efficiency: 85% (input 30V, output 12V, current 1A)Voltage and current display accuracy: 10mV, 1mAVoltage display error: +1%+20mVCurrent display error: +2%+2mAResponse time: <50msStorage operation: 10 sets of parameter storage from M0~M9Operating environment temperature: 0~40°CStorage temperature: -20~70°CUse environment: indoor use design, maximum humidity 80%Dimensions (length x width x height): 80.5x53.8x30 (mm)
Package Included:

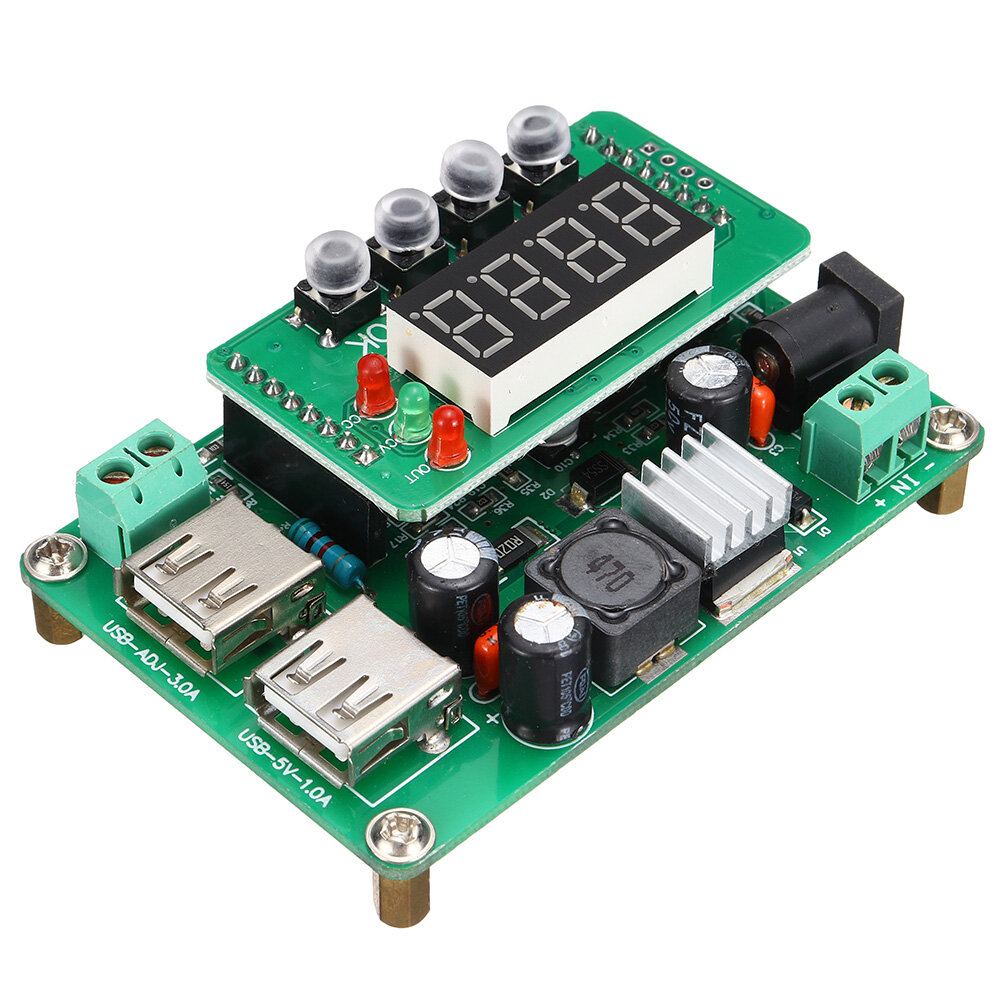

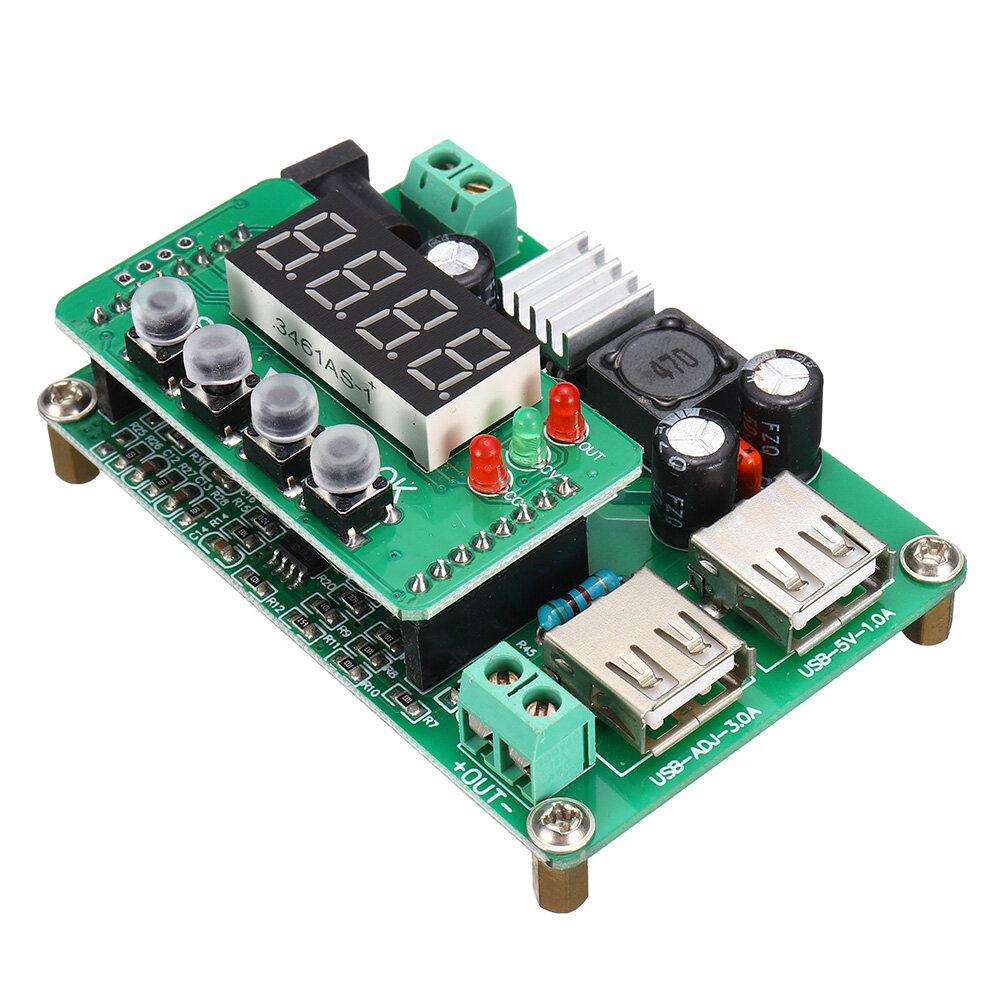

1 x DKP3603 Adjustable Step Down Power Supply Module
