Description
Features :

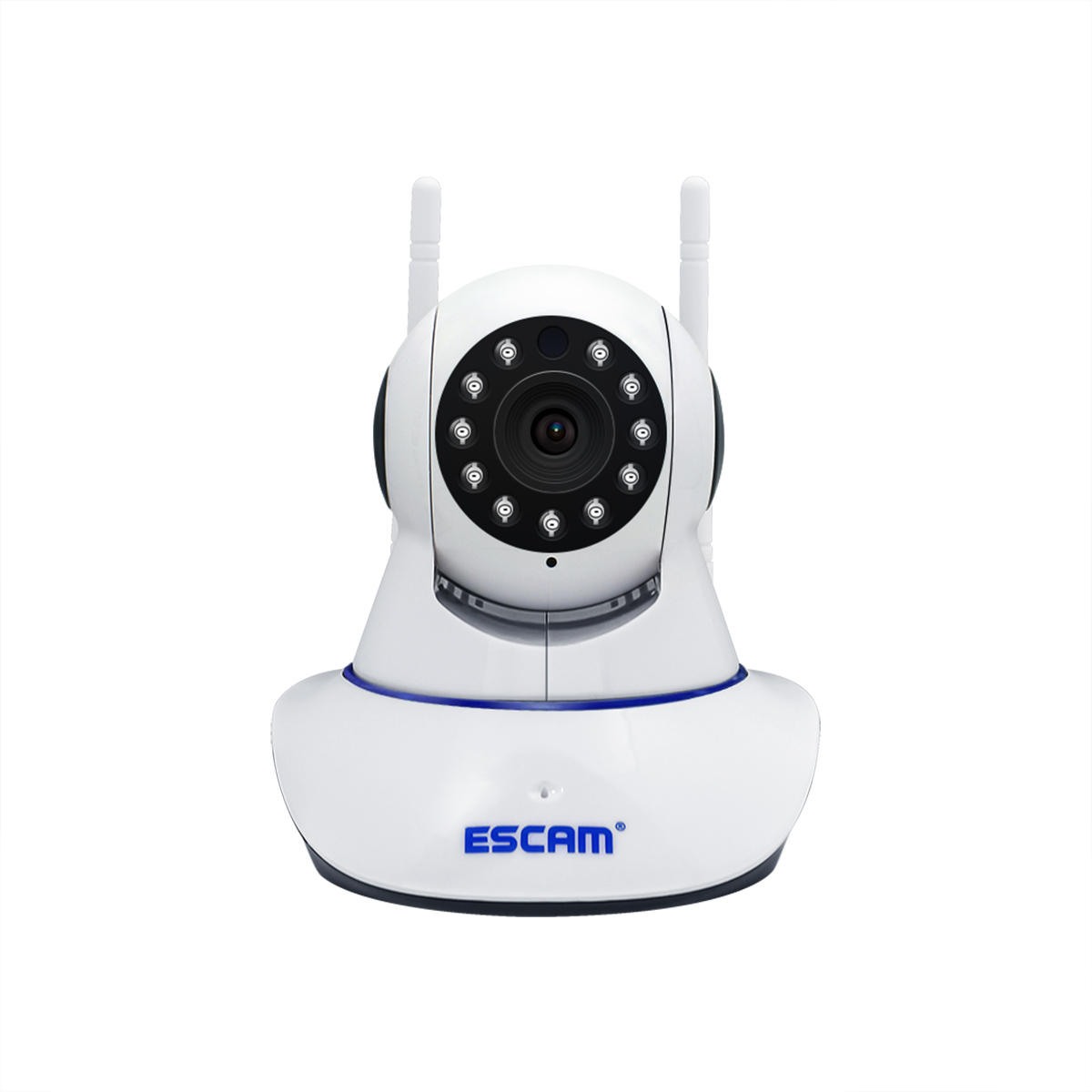

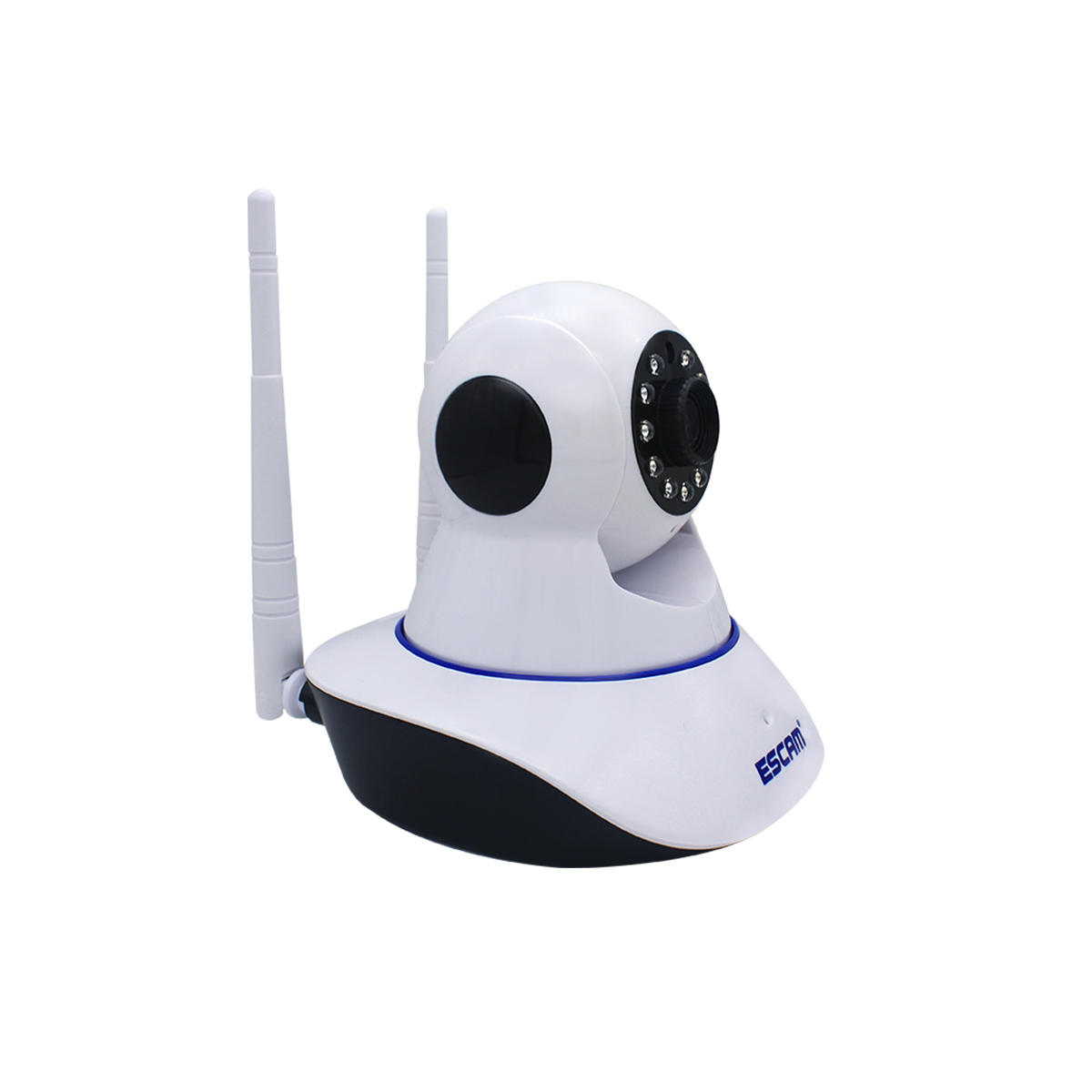

ESCAM G01HD 1080P Pan/Tilt WiFi IP IR Camera.
HD 1080PHigh definition image quality, resolution up to 1Megapixel, 1920*1080.
Magapixel Lens3.6mm Megapixel lens.
Pan and Tilt monitoringPan 355°+Tilt 120°, sliding screen manually enables remote control of the rotation of camera and real-time monitoring.Two Way TalkBuild in microphone and high quality audio speaker, it can do two way talk online between camera and mobile phone.Infrared monitoring&Motion DetectionWhen motion objects detected, it will trigger Email alert.10pcs IR Leds design, it can capture ultra clear night time image, max up to 8m IR range.Support Multi-Platform.Support Android/iOS mobile tablets and computers.TF card max up to 128G.Build in TF card slot, support max up to 128GB no need computer and HDDs and get video recorded.Dual AntennaDual antenna designed, WiFi connection is more stable and powerful.WiFi ConnectionWithout cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
Specification:
Model: ESCAM G01SystemOSEmbedded Linux OSProcessorGK7102C-ASensor1/4 2MP Progressive CMOS sensorVideo Compression FormatH.264 Video codingMain stream:1920*1080@15fps;Sub stream: 640*352@25fps,320*176@25fpsPicture AdjustmentContrast, Brightness, Saturation ,Flip and Mirror are adjustable,Minimum illumination0.8Lux/F1.4(colourful mode ),0.4Lux/F1.4(B&W mode)Bit RateCBR/VBR, bit rate range: 32-6144kbpsOSD Support OSD Lens3.6mmNight VisionNight vision11pcs IR LED,8m IR distanceIR control IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. AudioCompression formatG.711AInputBuilt in microphoneOutputBuilt in speakerP/T FunctionP/TPan:355°,Tilt:120°Preset Postion support up to 8 preset postions NetworkNetwork interface10Base-T/100Base-TX Ethernet interfaceNetwork ProtocolTCP/IP,HTTP,SMTP,FTP,DHCP,DDNS,NTP,UPnP,RTSP,etc.Online visitorSupport 5 online visitors simutaneourslyIP addressDynamic IP and static IP addressWIFIWIFI 802.11 b/g/nOnvifSupport Onvif protocolAlarmMotion DetectionSupport 4 independent detection areas (sensitivity 1-100 )Audible alarmAudible alarm(Sensitivity 1-100 )Alarm linkageSending picture to Email;Uploading picture to FTP;Saving picture or video to TF card OthersStorageSupport max to 128GB TF CardApplication environmentIndoorRated VoltageDC5±0.3VTemperature-10~50 °CHumidity10 ~ 95%RHPower consumption3.5WPackage size195x155x120mm (L×W×H)WeightGross Weight : 0.5kg(Note: in kind prevail)AccessoriesIP camera*1,Power adapter*1, USB cable*1, Manual*1, Mounting bracket*1, screws*1.System RequirementSystem configurationWindows XP/7/8/10;IOS and Android
Package Included:
1 x ESCAM G01 IP camera
1 x Power adapter
1 x USB cable
1 x Manual
1 x Mounting bracket
1 x screws
