Description
Features :1. Support smart functions with SLINK protocol IPC
2. Support 4ch 1080P or 1ch 5MP main stream preview and playback
3. HDIM/VGA video output
4. Support Onvif other IP camera,support onvif other software platform
Specification :
Model NumberK716Operating SystemEmbedded LINUX operating systemVideo Standard H.265+/ H.265/H.264Smart AnalysisWith Smart IPC,suppoatTarget Count, Object Left /Lost, Area Detection, Line CrossingVideo & Audio InputVideo Input16CH 5MP IP Network CamerasAudio Input IPC composite stream network audio input Video & Audio OutputHDMI Output1CH, HDMI can output audio at the same timeVGA Output 1CHPreview Split 1/4/9 screenVideo & Audio CodecVideo Resolution5MP and below resolutionSynchronized PlaybackSupport adaptive stream preview and playback:9 screens D1, 4 screens 1280*720, single screen 2560*1920External
PortsInternet 1 x RJ45 10M/100M/1000M adaptive Ethernet portUSB2 x USB2.0 rearHDD HDD Port 1 x SATA HDD Port MAX Capacity up to 8TB POE interface/Support Standard/Network ManagementNetwork ProtocolUPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)P2P
Remote MonitoringAEeyeSupports iPhones, iPads, Android Smart phoneSupports Windows 7 and above computer client, supports Apple MACS computer clientPower Supply12V 2A Working Temperature -10?--+55?Working Humidity 10%-90%Power ConsumptionNVR motherboard function?25W(Without HDD)Dimensions Device:255mm×220mm×43mm
Packing:355mm×260mm×87mm Weight (Without HDD) N.W.: 0.63Kg; Packing:1.1Kg Outside Carton 10 pcs/carton.Dimension:462mm×365mm×530mm; Weight:12KgInstallation Method Desktop installation
Package includeds :

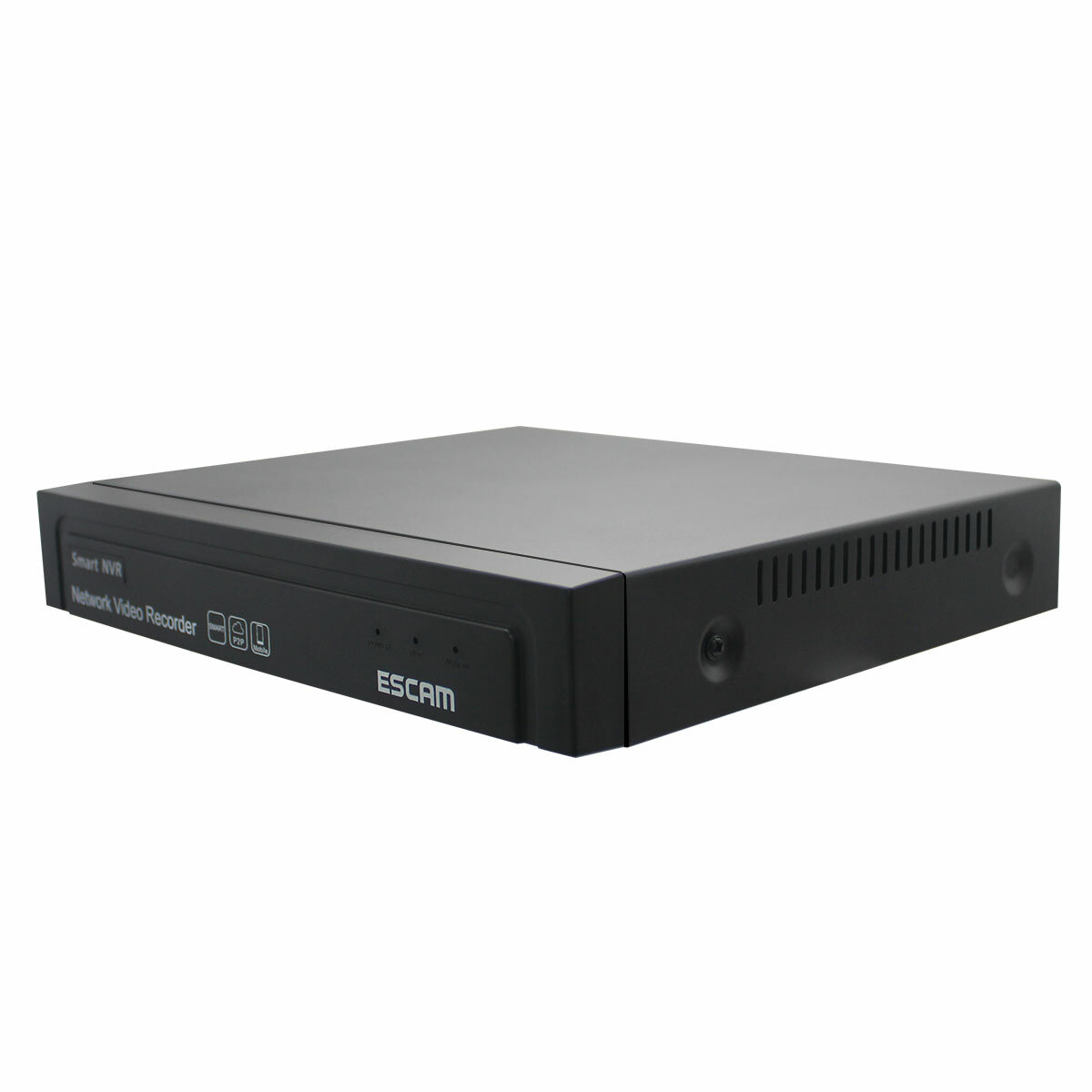

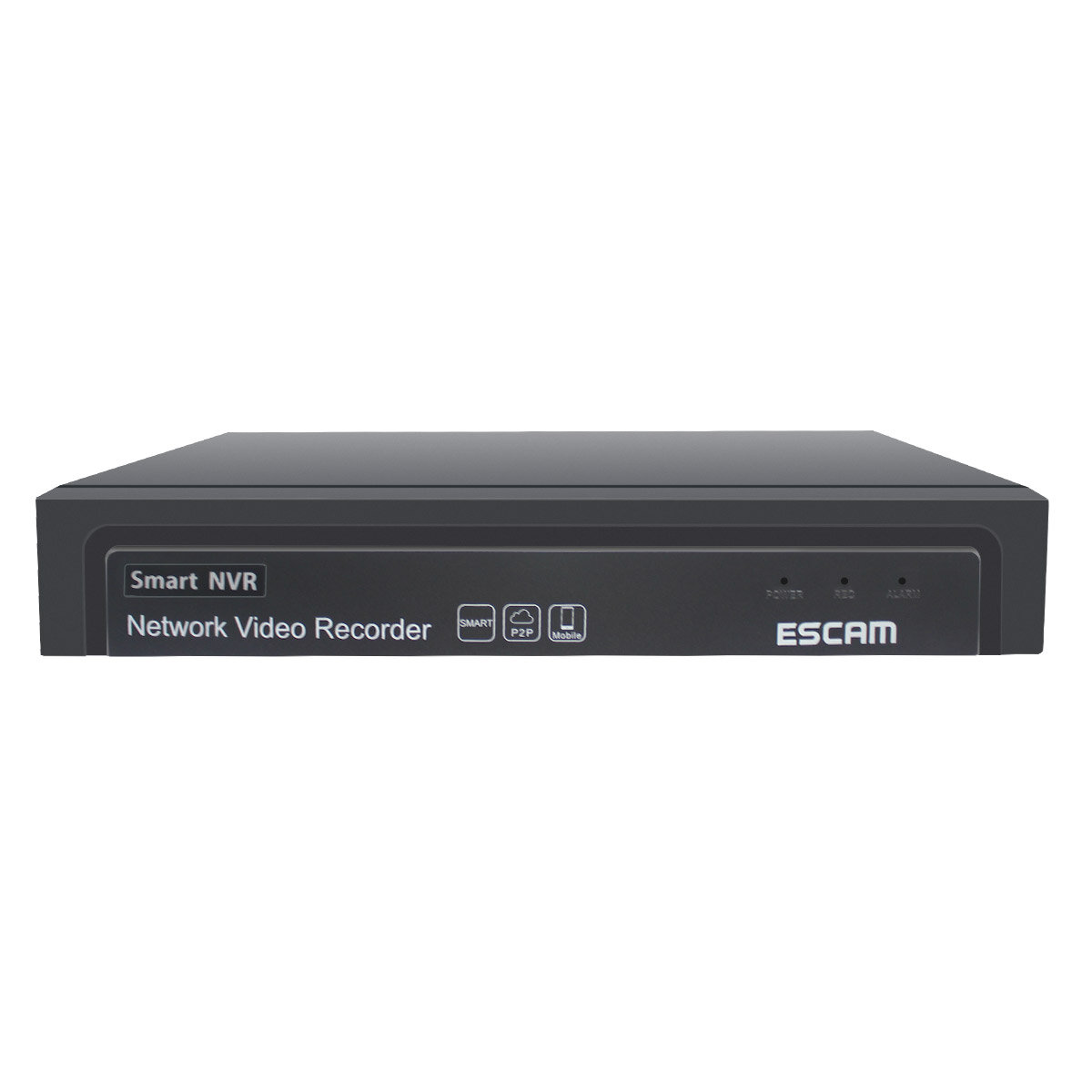

1 x ESCAM H.265 Video Surveillance NVR
Details pictures :
