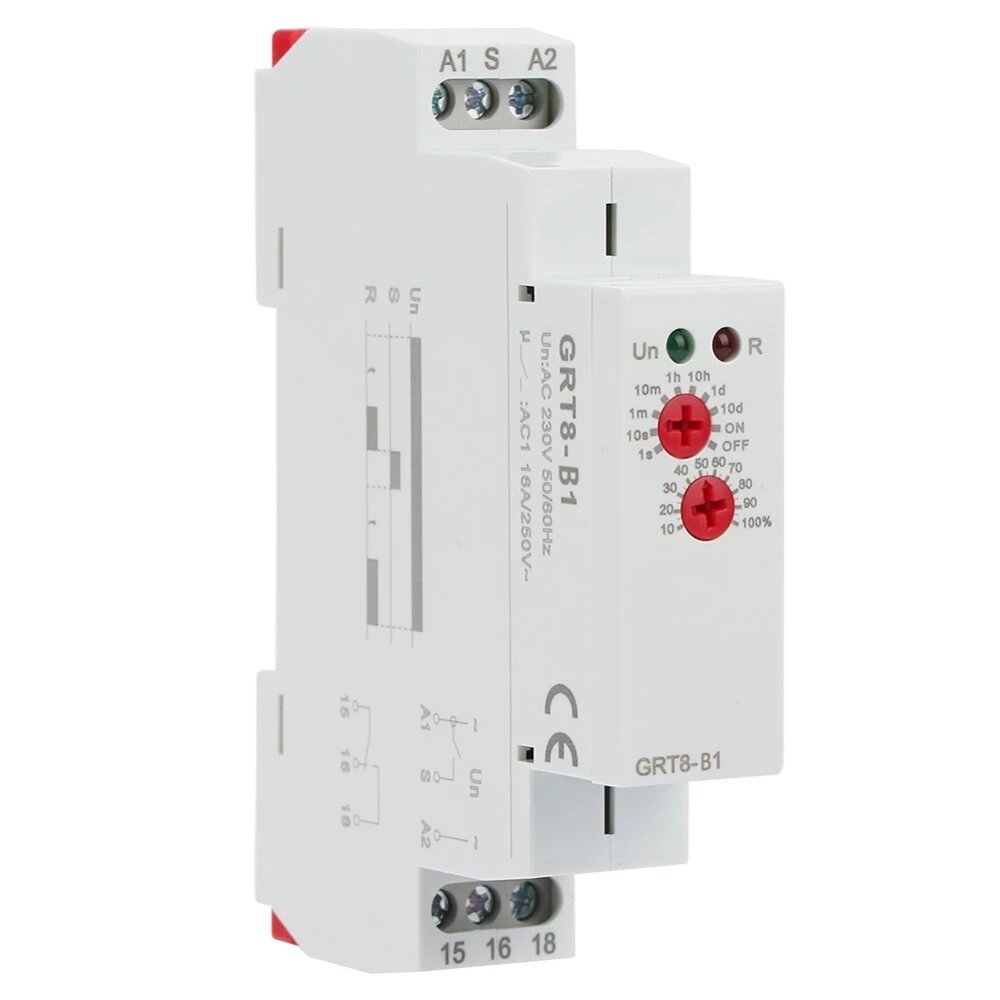

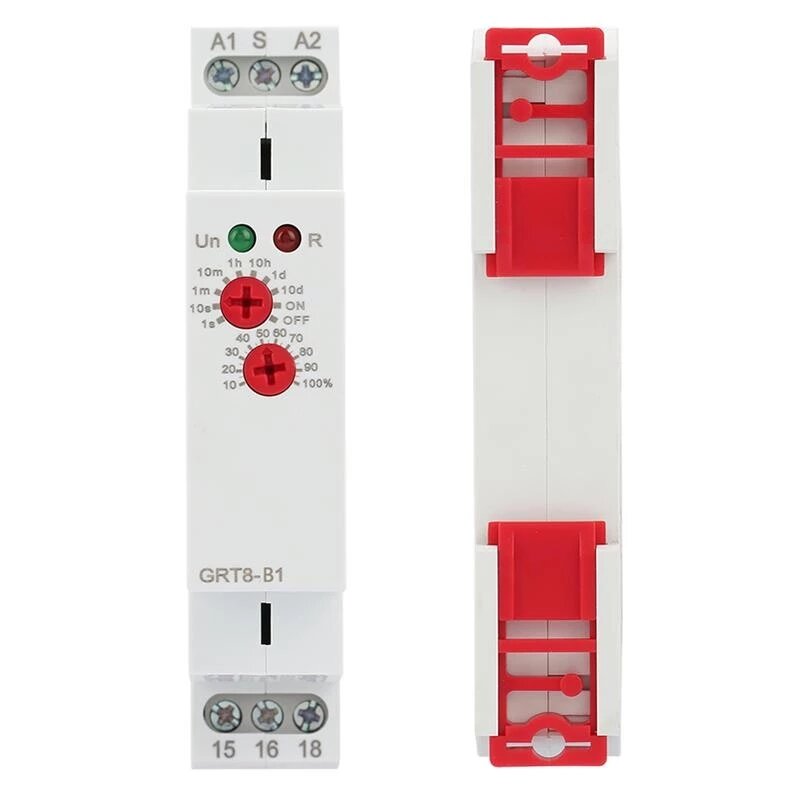

Description
Features:1. This is a single-function power-off delay relay, and the time delay can be set through the panel knob.2. Ultra-wide delay range of 0.1s-10 days.3. Stable performance and long service life.4. The working status of the relay is indicated by the LED indicator.5. Small size, the relay can be installed on a 35mm DIN rail.6. Apply to delay on or off the line, such as controlling the power-on time of the heating element, the working time of the pump and the delay of the fan
Specification:
Model: GRT8-B1 B2Power Terminal: A1-A2Rated Control Power Supply Voltage: AC230V AC/DC 12-240V (50-60Hz)Power Consumption: B1: AC max 6VA / 1.3W B2: AC 0.7-3W/DC 0.5-1.7WPower Supply Allowable Range: -15%; +10%Power Indicator: Green LEDDelay Range: 0.1 seconds-10 days, normally open, normally closedSetting Method: KnobSetting Accuracy: 5%Repeatability Accuracy: 0.2%Temperature Fluctuation Error: 0.05%?, at = 2?Output: 2 Sets of Conversion Contacts 16A/AC250VACMinimum Switching Power: 500mWOutput Relay Indication: Red LEDMechanical Life: 10000000Electrical Life (Resistive Load): 1000000Working Environment Temperature: -20?-55?Storage and Transportation Environment Temperature: -35?-75?Installation Method: 35mm Rail InstallationProtection Level: IP20Installation Altitude: 2000 MetersPollution Degree: 2Wiring Capacity: 1x2.5mm² or 2x 1.5mm²Weight: Approx. 95g / 3.4ozSize: Approx. 90 x 18 x 64mm / 3.5 x 0.7 x 2.5in
Package Includes:
1 x Off Delay Time Relay
