Description
Features:Easy to use: only one AD acquisition pin and one control pin are neededAnalog output: The output voltage is linearly related to the dust concentration in the effective range, with a built-in attenuation circuit, the output voltage does not exceed 1.5VSensitivity: 0.5V/(100?g/m3)Effective range: 500?g/m3Wide power supply range: built-in booster circuit, working voltage range 2.5V to 5.5VLow power consumption: within a sampling period, the current does not exceed 20mA
Mechanical parameters:
Product size: 63.2mm x 41.3mm x 21.1mmFixing hole size: 2.0mm (4 pieces)Vent size: 9.0mm
Interface Description:
Take the access MCU as an example:
VCC: Connect 2.5V~5.5VGND: Connect to GNDAOUT: connect to MCU.IO (analog output)ILED: connect to MCU.IO (module drive pin)
Documents:
Schematic: Click here to openSample tutorial: Click here to openGP2Y1014AU0F: Click here to open
Package includes:

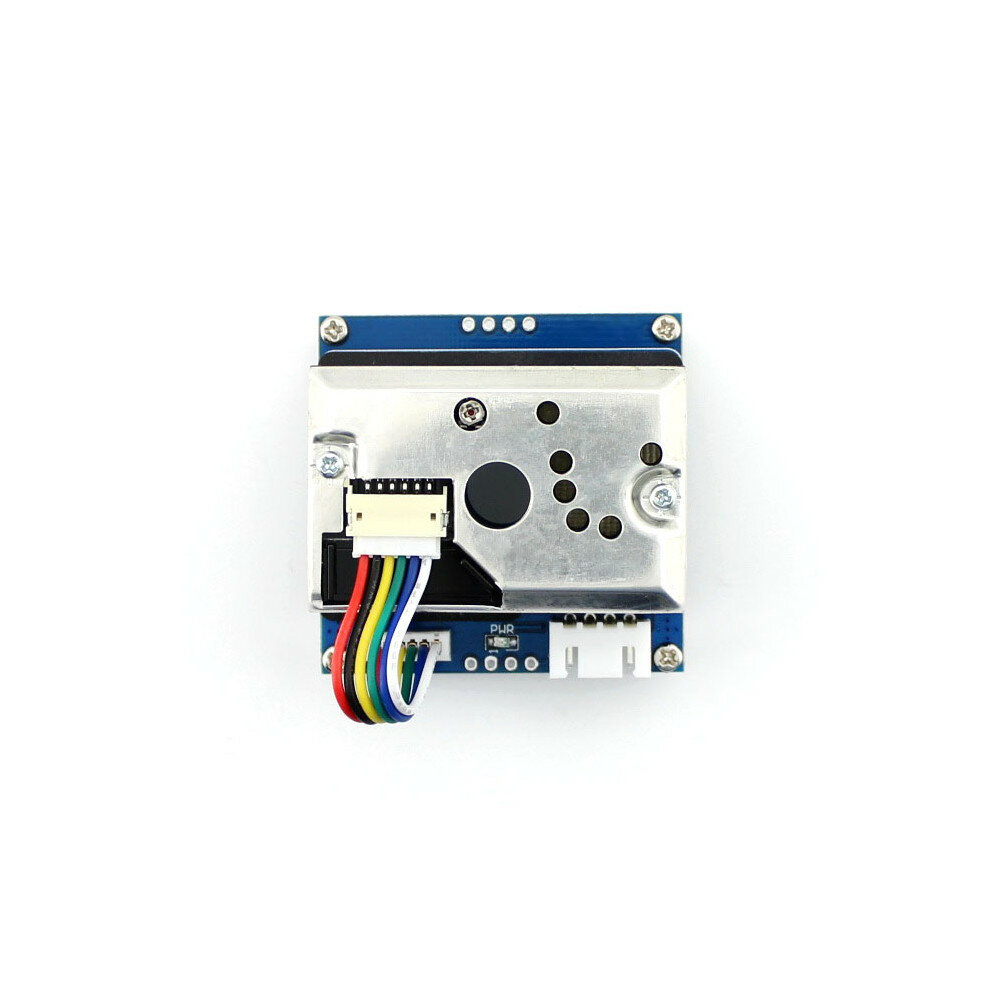

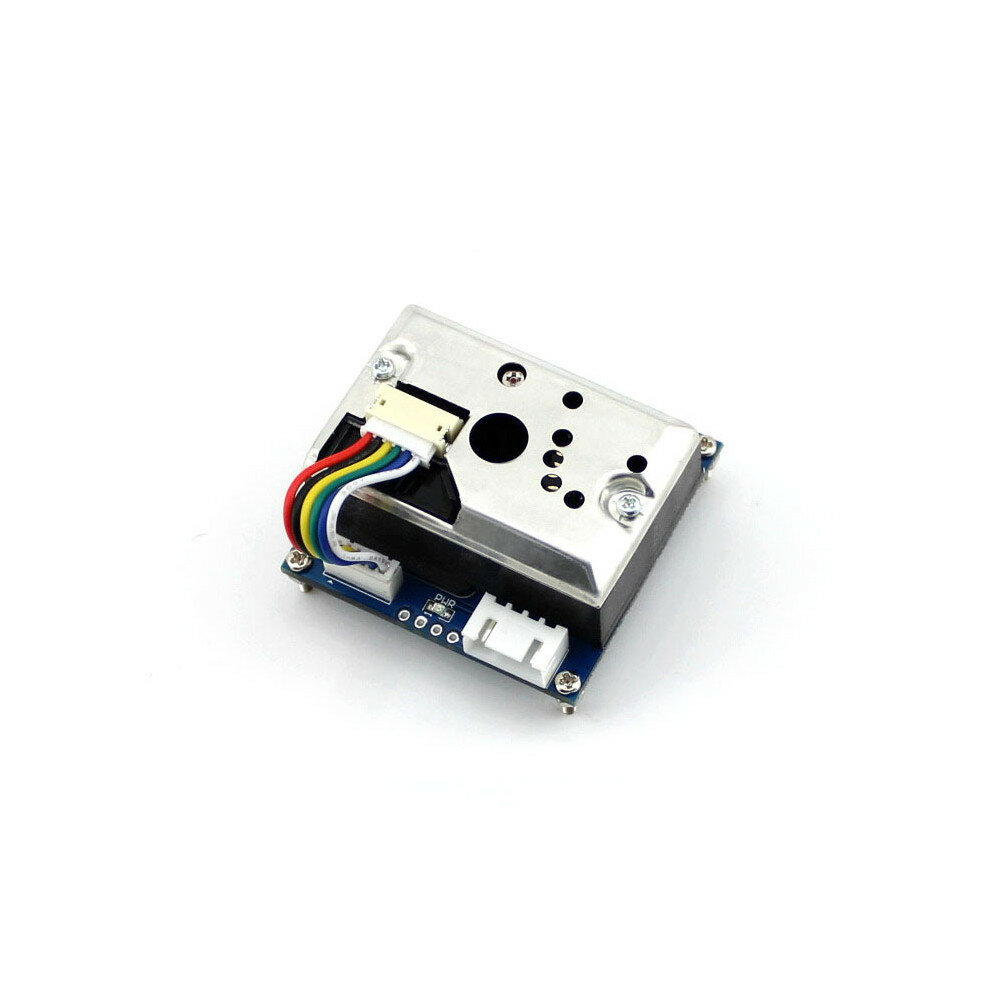

1 x GP2Y1010AU0F Dust Sensor
