Description
Specification:Main Chip Sets CPU frequency 770MHz Dual Core Flash Memory 64MB SPI Flash DDR2 Memory 512M RAM TS Demux Demultiplexer ISO/IEC 13818-1 Input Bit Rate Max 100Mbit/s Video Decode Video Decode HEVC main profile@level 4.1 and main10 profile@L4.1, High tier
MPEG-2 MP@ML
H.265 BP, MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder PAL/NTSC Automatic PAL/NTSC conversion Aspect Ratio Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box Video Resolution 1080P, 1080I, 720P, 576P, 480P, 576I, 480I Audio Decode Audio Decode MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
Dolby AC3/AC3+, DRA CH/5.1CH Sound Mode LEFT/RIGHT/STEREO/MONO Sampling Frequency 32KHz, 44.1KHz,48KHz Hardware specifications Panel display 4-digit LED display LED Indicator Power ON: Green; Standby: Red Button NC Wifi Support USB Wifi dongle (MTK7601/RT5370) IR Exit IR for 38KHz, Infra Remote control Rear Panel LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X) HD OUT (up to 1080P) SCART OUT 2xUSB 2.0 HOST Power (DC 12V/1.5A) DVB-S/S2 Tuner specificati-ons System standard ETS 302 307 Frequency Range 950~2150MHz for DVB-S/S2/S2X LNB Power and Polarization DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC@400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection Input Level Range -80dBm ~ -25dBm Symbol Rates DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Carrier frequency acquisition range ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Symbol Rates 2 ~ 90MSPS(Code Rate 1/2) Code Rates 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates ANT. Connector Connector: IEC TYPE F Input Impedance: 75 ? Sortware Features Standard Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite) Channels Number 6000+ channels TV and Radio programmable Favorites 16 different favorite groups selection OSD Language OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) EPG Fully support to 7 days Electronic Program Guide(EPG) OSD Color 16-bit OSD with anti-flickering Channel Search Supports Automatic network search for newly added transponders Channel Edit Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort) Parental Ctrl Parental control for channels Easy Menu Plug and Play installation, with an easy to use Menu System SoftUpgrade Software upgrades through USB port upgrade Channel Recording one channel, can view another channel under the same TP, Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort) Subtitle support DVB EN300743 and EBU Teletext support DVB ETS300472 by VBI and OSD Time Set Time set by GMT offset automatic and manual,Summer Time support Timer 5 event timers, off/Once/Daily/Weekly Mode USB Decode USB 2.0 Support FAT/FAT32/NTFS big capacity hard disk PVR Option USB 2.0 for PVR, TIMESHIFT, media files playback Media Codec TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files Audio Codec WMA, MP3 Photo Codec JPG, BMP, PNG, GIF Packing Product Dimension 140x80x32mm ?LxWxH? Packaged Size 233x165x49MM Unit Weight 0.45 Kg with gift box Accessories Adapter, IR remote control, HDMI Cable, Network Card, User Manual, Warranty card Physicals Power Supply AC 100-250V, 50Hz/60Hz Power Consumption 8W in operation
?1 W Standby Power Mode Temperature Operation 0?+45?; Storage -10~+60? Humidity 20~90%, non-condensed
Feature:
Support DVB-S/S2/S2X, H.265(8bit), AVS+, CCM, ACM, VCM, multi-stream/T2-MISupport Fastest BISS auto roll, Full PowerVu, DRE &Biss keySupport Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully supportSupport Full speed USB 3/4G dongle and USB wifi dongleSupport Online Movie (Youtube, Youporn)Support for Cccam, NewcamTechnical support website: www.freesat.cnNote:
We reserve the right to change the design and OEM/ODM supported
Package Included:

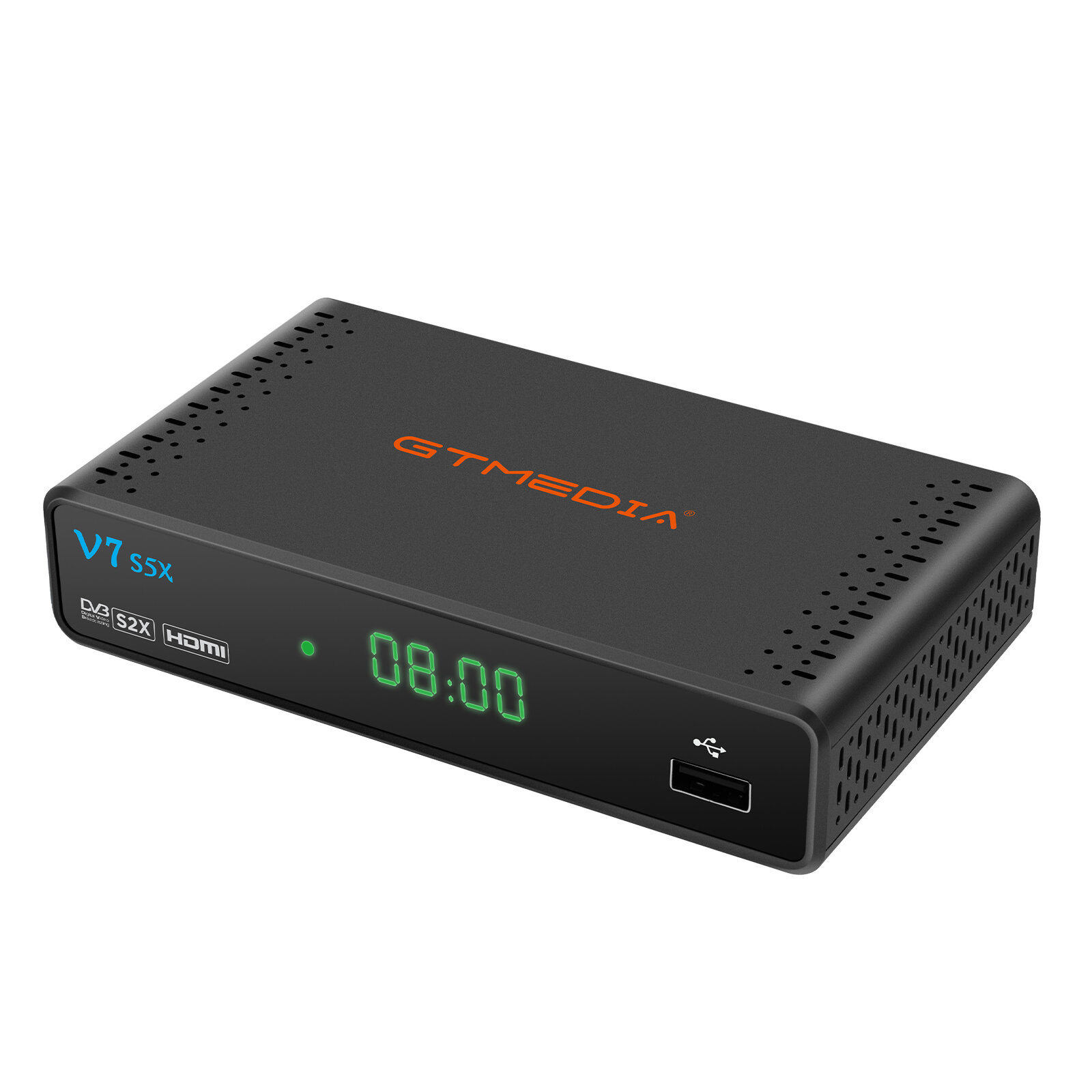

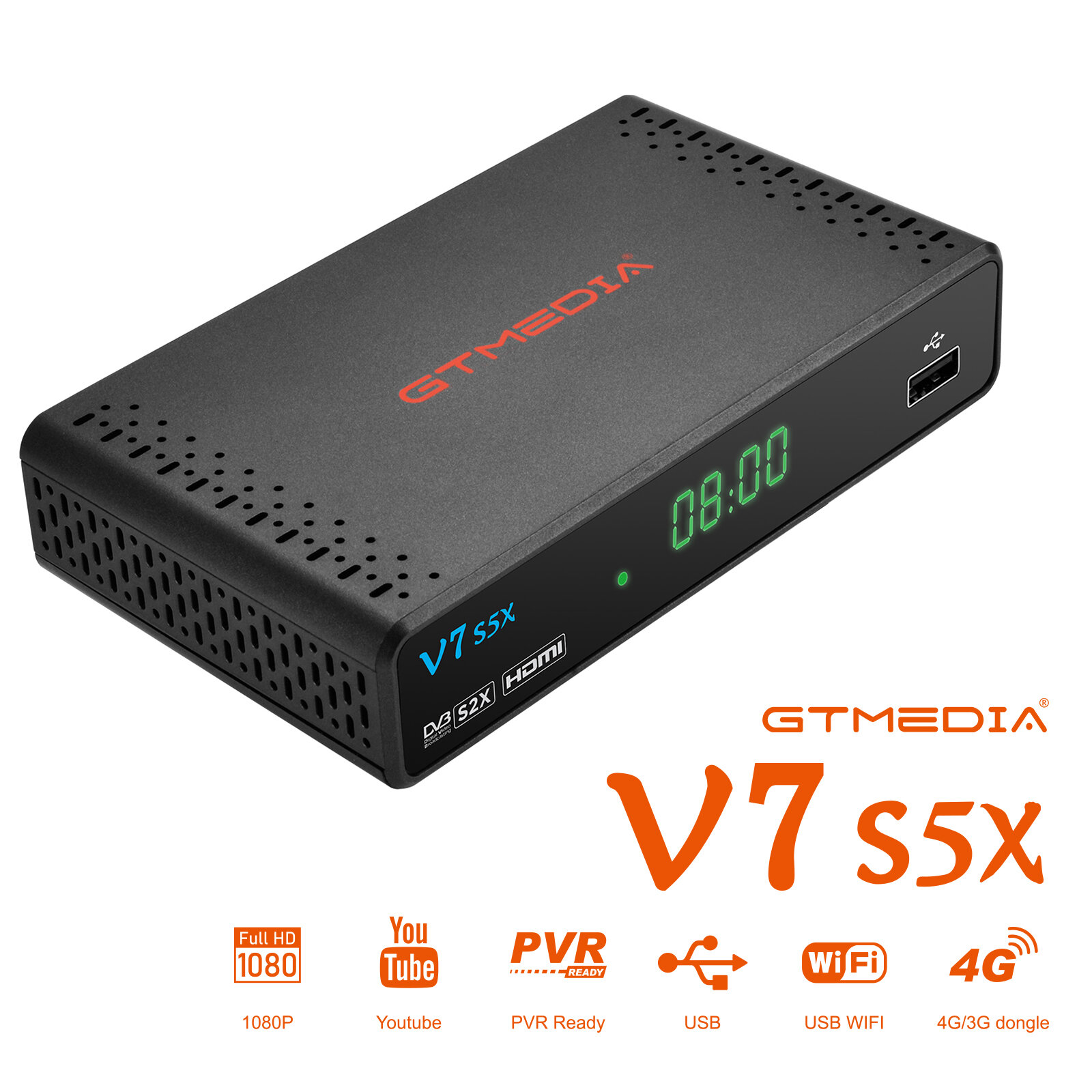

1 x GTMEDIA V7 S5X Satellite TV Receiver(Other products are not included)1 x Power Adapter1 x IR Remote Control1 x HDMI Cable1 x Network Card1 x User Manual1 x Warranty Card
