Description

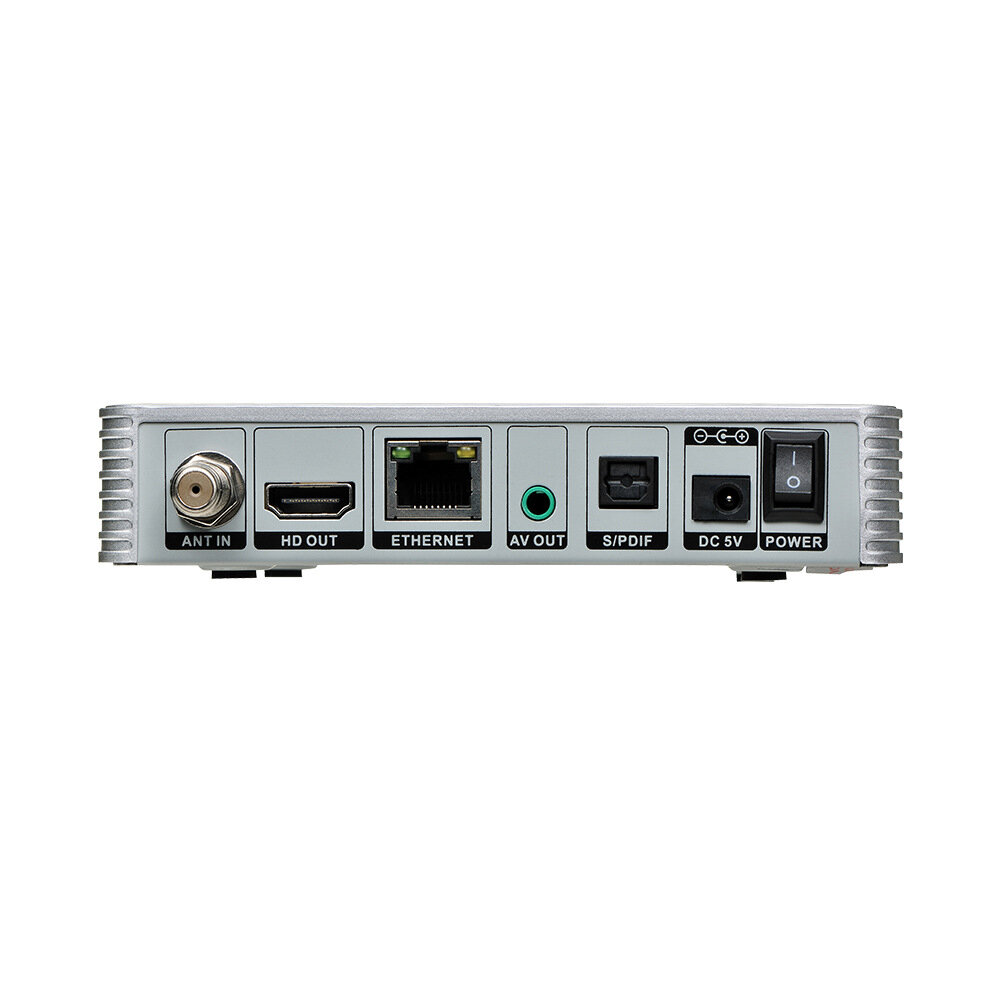

Specification:Main Chip Sets CPU frequency 770MHz Dual Core HEVC 10Bit Flash Memory 64MB SPI Flash DDR2 Memory 1G bit RAM TS Demux Demultiplexer ISO/IEC 13818-1 Input Bit Rate Max 100Mbit/s Video Decode Video Decode MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL PAL/NTSC Automatic PAL/NTSC conversion Aspect Ratio Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box Video effects Standard, Default, Vivid. Video Resolution 1920×1080,1280×720,720×480 HDMI Color Space RGB, YUV422, YUV444, Auto Audio Decode Audio Decode MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3 Sound Mode LEFT/RIGHT/STEREO/MONO Sampling Frequency 32KHz,44.1KHz,48KHz Audio Out LPCM Out, BS Out Hardware specifications Panel display 4-digit LED display LED Indicator Power ON :Green; Standby :Red Button NOT Wifi Support USB Wifi dongle (MTK7601) IR Exit IR for 38KHz,Infra Remote control ETHERNET 10/100M Rear Panel ANT IN ( EC-type IEC169-2 Female DVB-T/T2/Cable) HD OUT (up to 1080P) AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND) ETHERNET(10/100M) S/PDIF *1 2*USB 2.0 HOST Power (DC 5V/2A) DVB-Cable specificati-ons Frequency Range 50--858MHz For DVB-Cable Demodulation 16QAM,32QAM,64QAM,128QAM,256QAM FEC Code Rate 1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8 Input Signal level Min -80dbm max -20dbm ANT. Connector IEC 169-2, female. Input Impedance:75 ? DVB-T/T2 specificati-ons System standard ETSIEN 302 755 Frequency Range VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2 H.265 Demodulation COFDM,16QAM,64QAM,256QAM Bandwidth model 6MHZ,7MHZ and 8MHZ Country England, Germany, Italy, France, Australia, Brazil, Chile, Argentina, Peru, UK, Russia, Colombia, Poland, Spanish, Sweden, Greek, Slovenia, Denmark, Finland, USA-GA, Indonesia, Belgium... FEC Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 FFT 2K and 8K Guard interval 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 Input Signal level Min -79dbm max -20dbm (64QAM,8K 1/8,7/8) Antenna Power 5V DC @ 100mA MAX ANT. Connector IEC 169-2, female. Input Impedance:75 ? Sortware Features Standard Fully comply with DVB-T/T2/Cable, MPEG-2/4 H.265 Standard Channels Number 6000 channels TV and Radio programmable Favorites 16 different favorite groups selection OSD Language OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) EPG Fully support to 7 days Electronic Program Guide(EPG) OSD Color 16-bit OSD with anti-flickering Channel Search Supports NIT Search ,Automatic network search for newly added transponders Channel Edit Various channel editing function(favorite, move, lock, skip,
delete, rename, find, sort) Parental Ctrl Parental control for channels Easy Menu Plug and Play installation, with an easy to use Menu System SoftUpgrade Software upgrades through USB port . Channel Recording one channel, can view another channel under the same TP,Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort) Subtitle support DVB EN300743 and EBU Teletext support DVB ETS300472 by VBI and OSD Time Set Time set by GMT offset automatic and manual,Summer Time support Timer 5 event timers, off/Once/Daily/Weekly Mode USB Decode USB 2.0 Support FAT/FAT32/NTFS big capacity hard disk PVR Option USB 2.0 for PVR, TIMESHIFT, media files playback Media Codec TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files Audio Codec WMA, MP3 Photo Codec JPG, BMP, PNG, GIF Packing Product Dimension 140 x 110 x 30mm Packaged Size 212 x 168 x 52MM Carton Size 430 x 280 x 355MM (20pcs/ctn) Unit Weight 0.67 Kg with gift box Carton Qty&Weight 20 pcs/Carton, 14.5 kgs Accessories Gift Box, Adapter, IR remote control, HDMI Cable, User Manual Physicals Power Supply AC 100-250V,50Hz/60Hz Power Consumption 7W In operation
?1 W Standby Power Mode Temperature Operation 0?+45?; Storage -10~+60? Humidity 20~90%, non-condensed
Package Included:

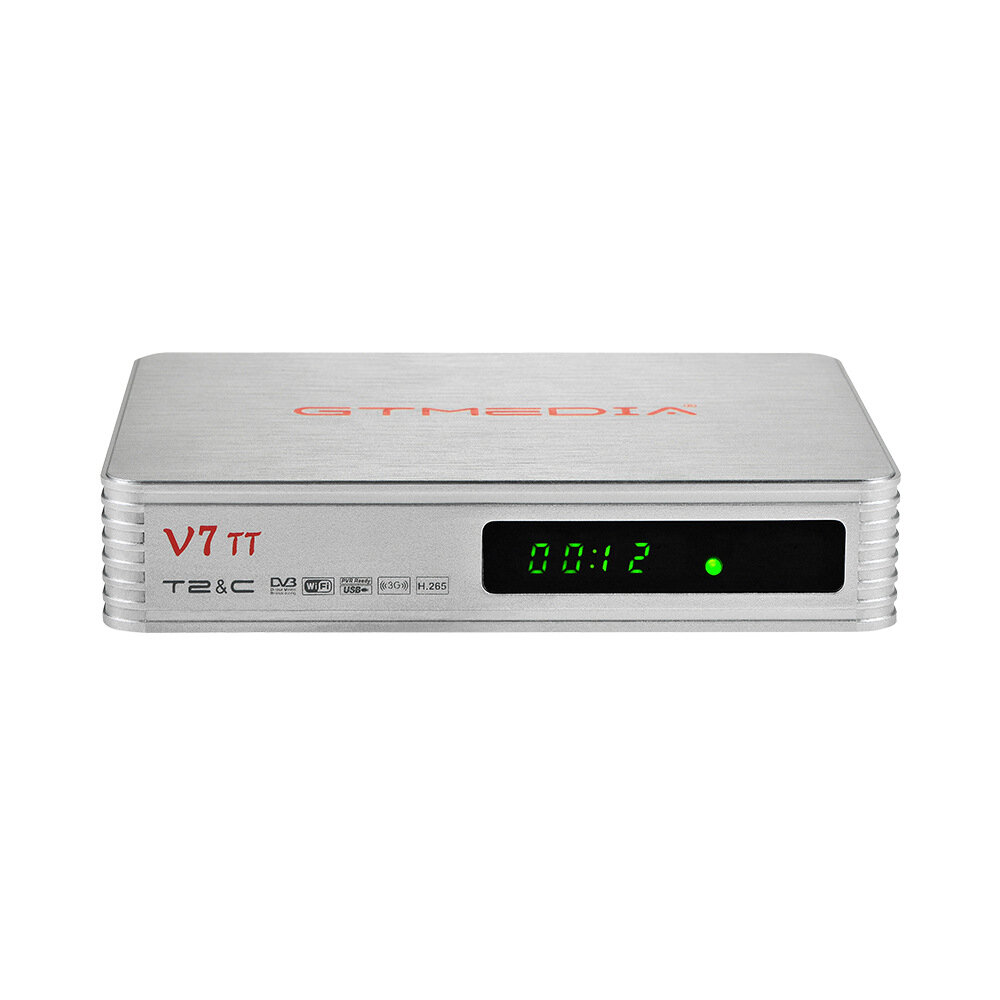

1 x GTMEDIA V7TT Satellite Receiver1 x IR Rmote Control1 x Power Adapter1 x HDMI Cable1 x User Manual
Features:
1080P Full HD DVB-T/T2/DVB-C/J.83B, Support H.265 HEVC 10bit.Support multi PLPSupport USB PVR Ready and USB wifi to Network SharingSupport Full speed USB 3/4G dongle and USB wifi dongleSupport Europe Book StandardSupport YouTube, Youporn , and for Cccam, Newcam
