Description

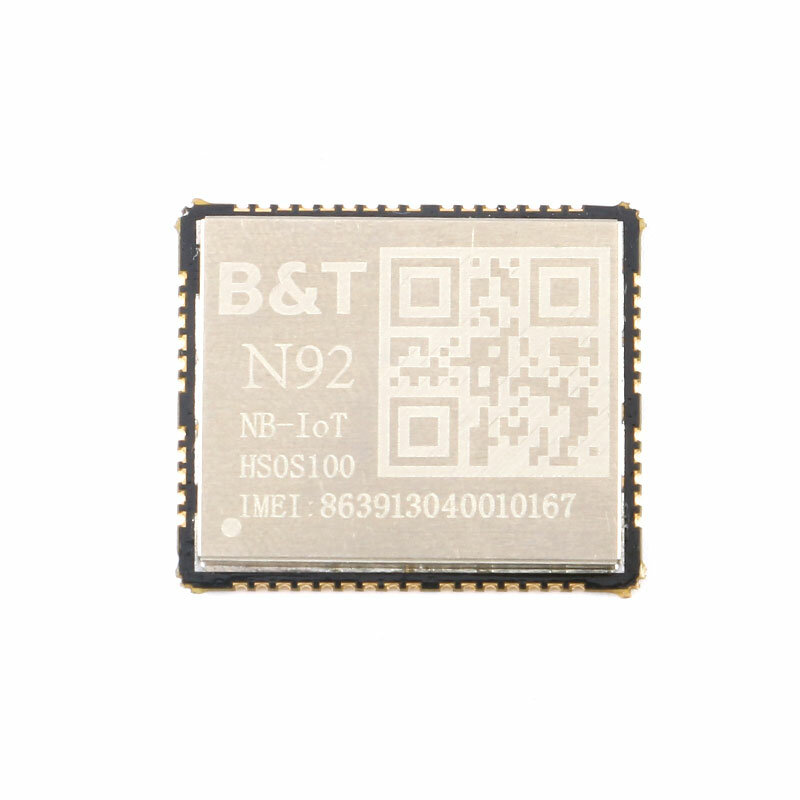

Description:The N92 series is a module developed based on the RDA8908A and GK9501 platforms. The N92 module supports single-band NB-IOT function, dual-band NB-IOT function, NB-IOT + GNSS function, etc., which perfectly matches the product requirements in different application scenarios. The module itself has functions such as MCU, RF transceiver unit, baseband, power management, etc., and is highly suitable for IoT technology products in the current NB-IoT and GNSS markets. Utilizing the N92 module can quickly promote the implementation of industrial applications and accelerate the scale of the current NB-IoT in rich scenarios such as smart municipalities, smart parks, smart meter reading, public asset tracking, shared product positioning, safe cities, industrial IoT, and smart home application. Parameter:
NB-IOT chip RDA8908ACPU frequency: 12/52/72/96/144 / 192MHzWorking mode: support PSM, eDRX modeAT command: 3GPP Rel.13 / Rel.14FLASH: Built-in 32Mb SPI NOR FlashSRAM: Built-in 32Mb SRAMRTC: SupportNetwork protocol: UDP / TCP / CoAP / LWM2M / MQTT GNSS chip GK9501Support BDS / GPS / GLONASS / GALILEO / QZSS / SBAS Multi-system joint positioning and single system independent positioning, support D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR integrated navigation application, fastest data update rate 10Hz32-bit application processor with a maximum frequency of 133MHz, supporting dynamic frequency adjustmentSupport PPS outputBuilt-in reset controllerPeripheral interface: UART, SPI, I2C, GPIO
Package included:
1 x Wireless Communication Module
