nullFeatures:
?
? ?Application: Working with the Prusa I3 3D Printer, solve the hot bed force is too big and the load current problem; General add-on expansion module for the heated bed.
? 25A Maximum Current:This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful. With this add-on module to board lead the maximum current up to 25A.
?? If you need anything greater or equal to 15A this module is a must! For example, if your total power usage is 240W and you have 12V power supply, then it means at least 20A is needed (20X12=240W).
? Saftey:When using heated bed 3D printer for 12V power supply which may cause excessive current during times, with this module, it can well protect the connectors on the controller board from burning.
?? Mounting holes: 0.12in diameter, for M3 screws
?? Completely solve the hot bed power is too large and the load current issue
?? As ChiTu controller board is only capable of 15A this setting will not work.
?

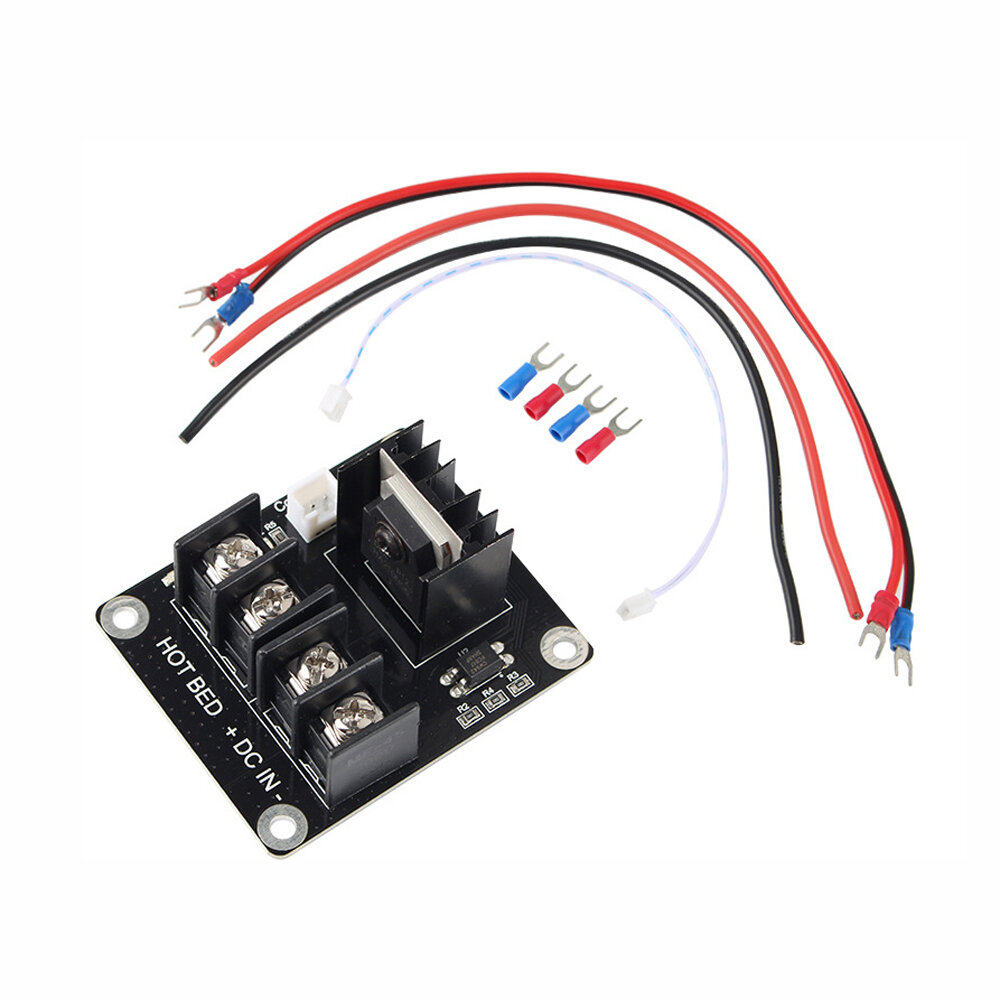

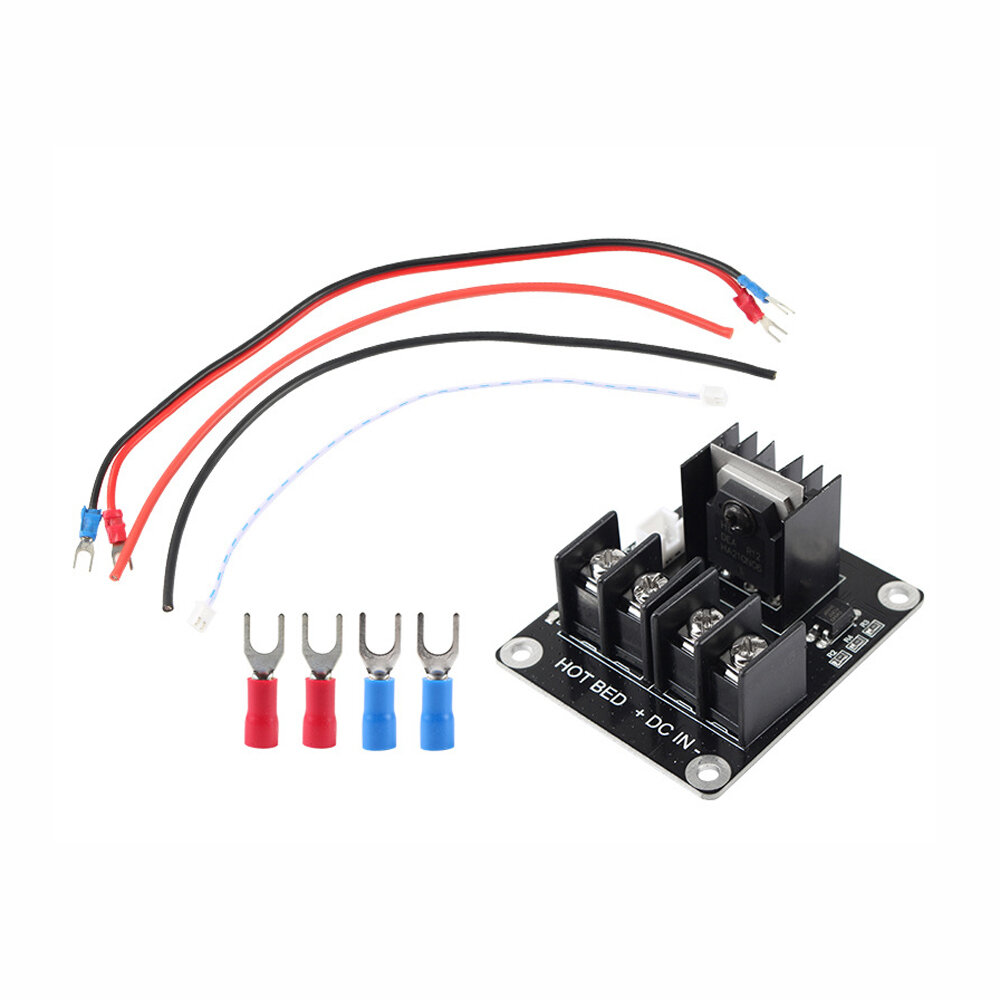

??Package Included:
?
?New MOS Module * 1 Double head power cord * 1PCS Red power cord * 1PCS Black power cord * 1PCS 2PIN cable * 1PCS U-shaped terminal * 4pcs
