Description
Features :AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
- Infrared distance is about 15M, waterproof.- The lens is 3.6 mm.- Camera AHD style: bullet-type camera high definition- Bullet camera high definition: 2 million pixel capacitance- Closed system / CCTV cable: 3.6mm- Sensor: CMOS technology infrared properties
Specification :
SpecificationsImage SensorAHBB121/3" 2.0MP CMOS SensorTV SystemPAL/NTSCIR CUT YesActive Pixel1920*1080SYNC.InternalResolution1080PVIDEO OUT1Vp-p,75ohm, BNCMinimum Illumination0 Lux ( When IR is on)Auto compensationAutoIR LEDs24 PCS IR LEDsIR Distanceabout 15MLens 3.6 mm defaultElectric Shutter1/50s-1/50000sS/N Ratio>50dBDay/NightAuto(ICR) / Color / B/WPower SupplyDC12V±10%Waterproof IndoorWorking temperature-15°~50°Transmission distanceOver 500m via 75-3 coaxial cable
Package includeds :
1 x Hiseeu AHBB12 AHD 1080P Camera
1 x Set of Screws
1 x User Manual

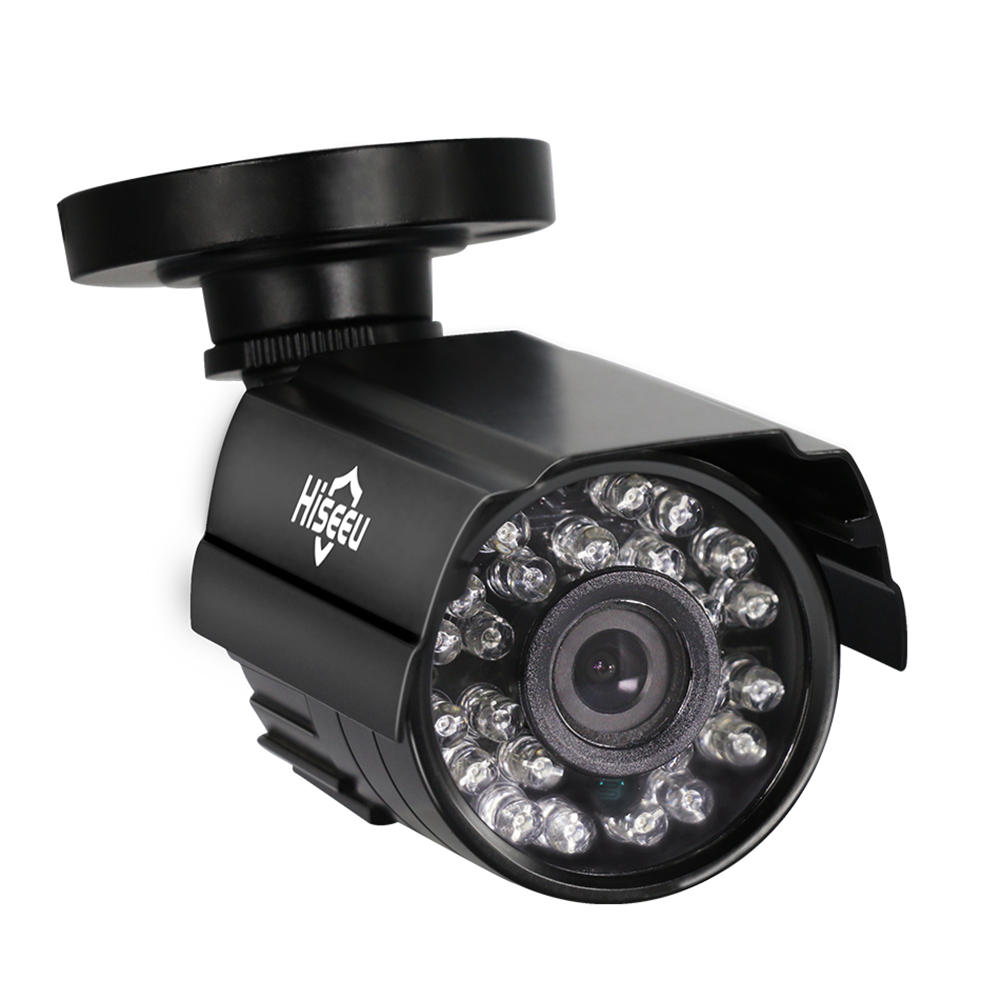

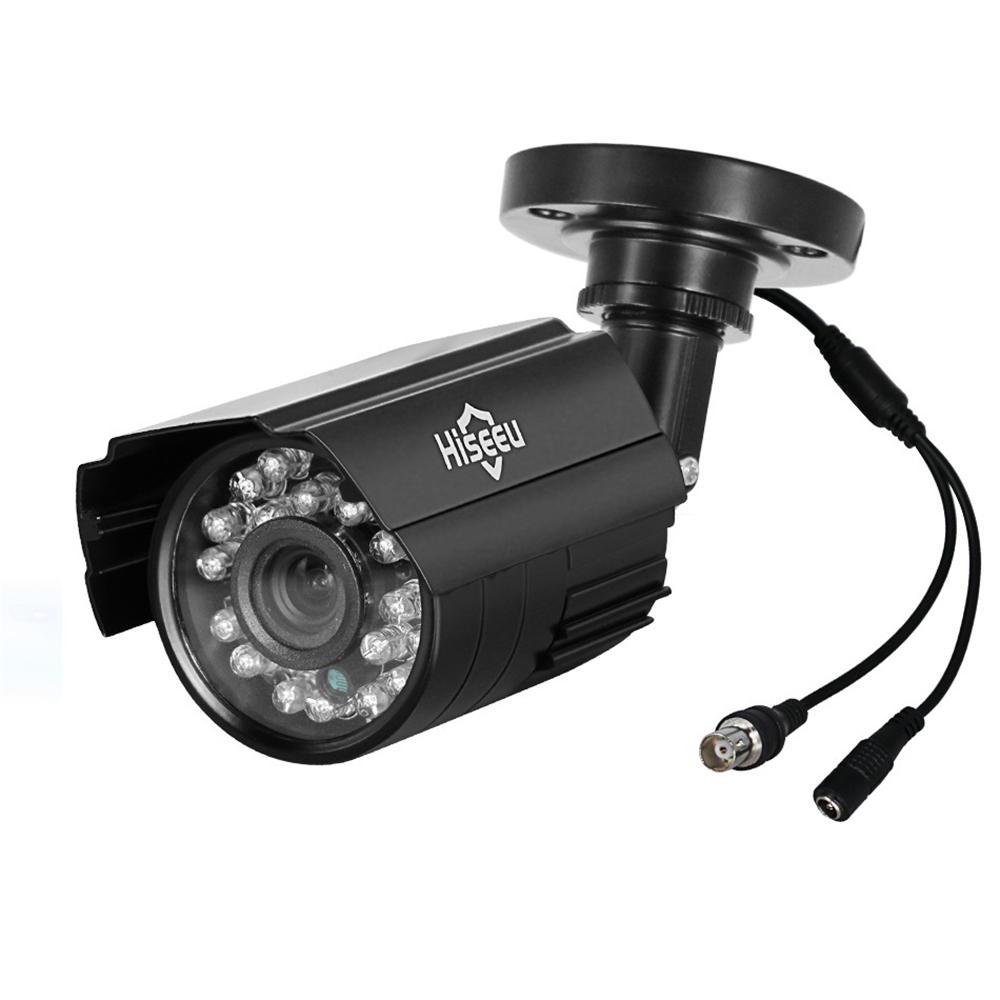

Details pictures :
