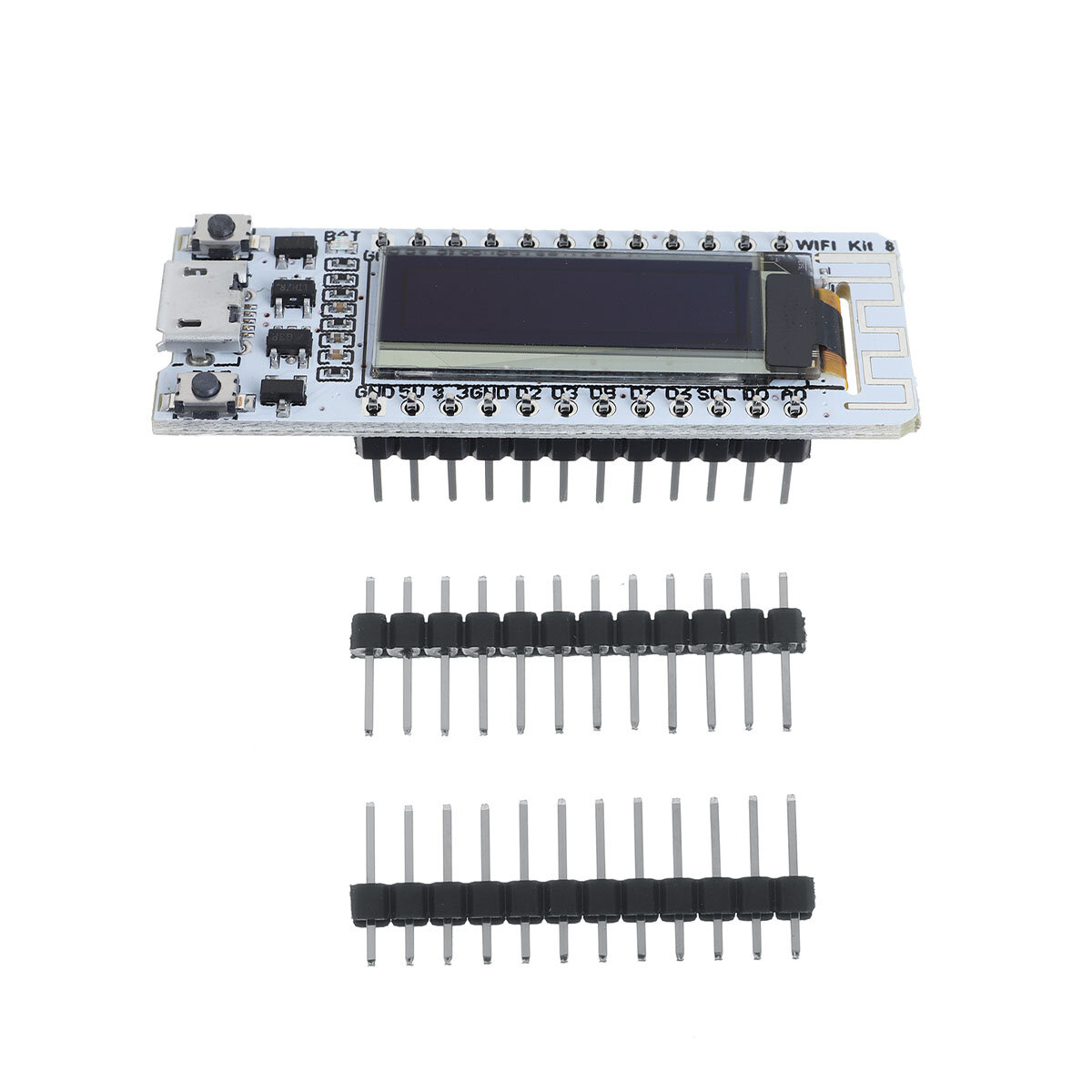

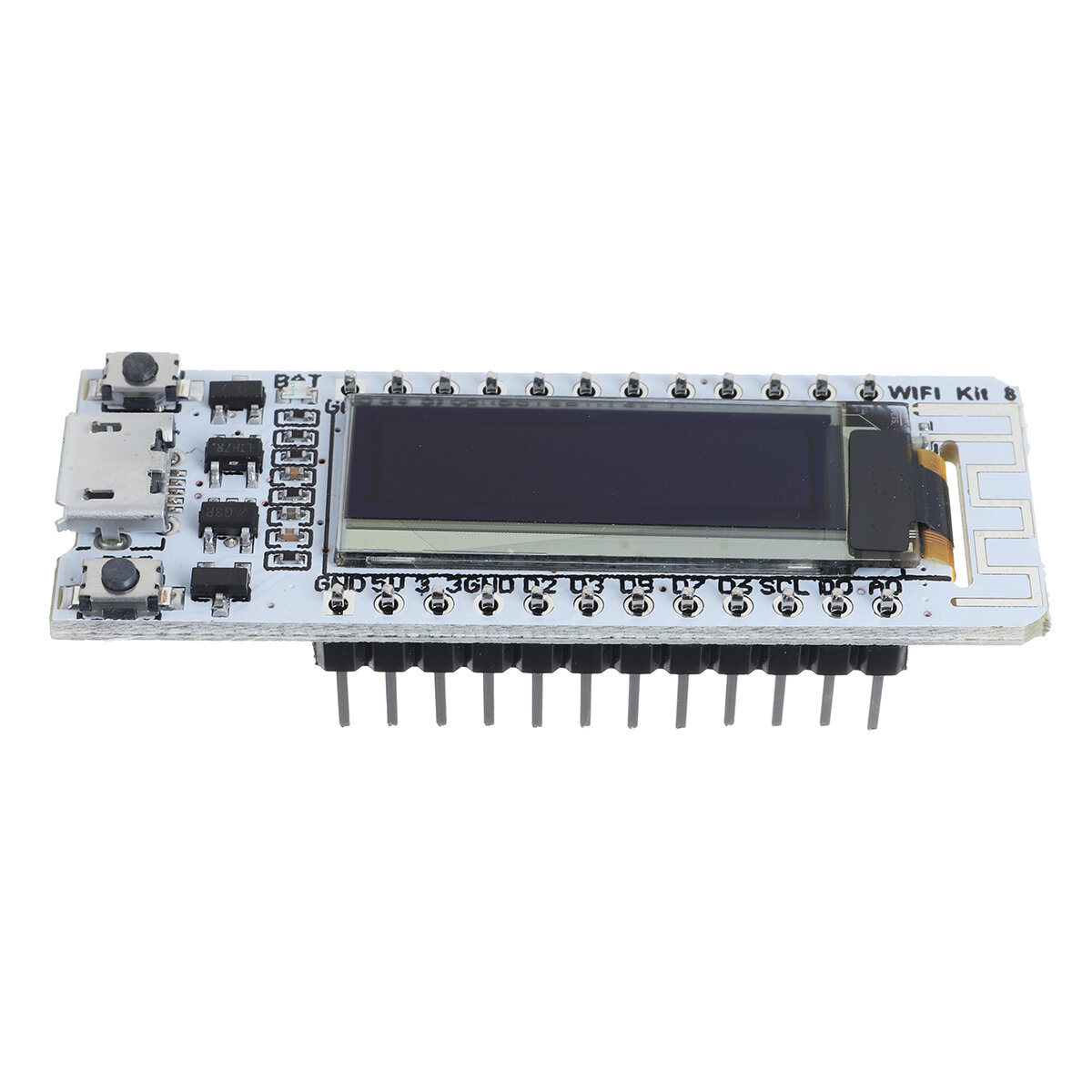

Description
Features:Perfect support for Arduino and NodeMCU development environments.Drivers are automatically installed on Win7 and above systems.Lead out all ESP8266 pins and configure for read, write, IIC, SPI mid-range, PWM and other functions.Pin pitch 2.54 * 23mm, can be used directly with breadboard.Can charge lithium battery directly.Integrated lithium battery charge and discharge circuit and interface on the board.
Specifications:
- Main control chip: ESP8266- Flash: 32 M- Bits- OLED: 0.91 inch 128x32- Working voltage: 3.3 ~ 7V- USB to interface chip: Cp2102- Support modes: softAp, station, softAp + station, WiFi-Direct- Working temperature:-40 ~ 90C- Output power: 19.5dBm@11b, 16. 5dBm @ 11g, 15.5dBm@11n
Package Included:
1 x Development Board2 x 12-pin Header
