Description

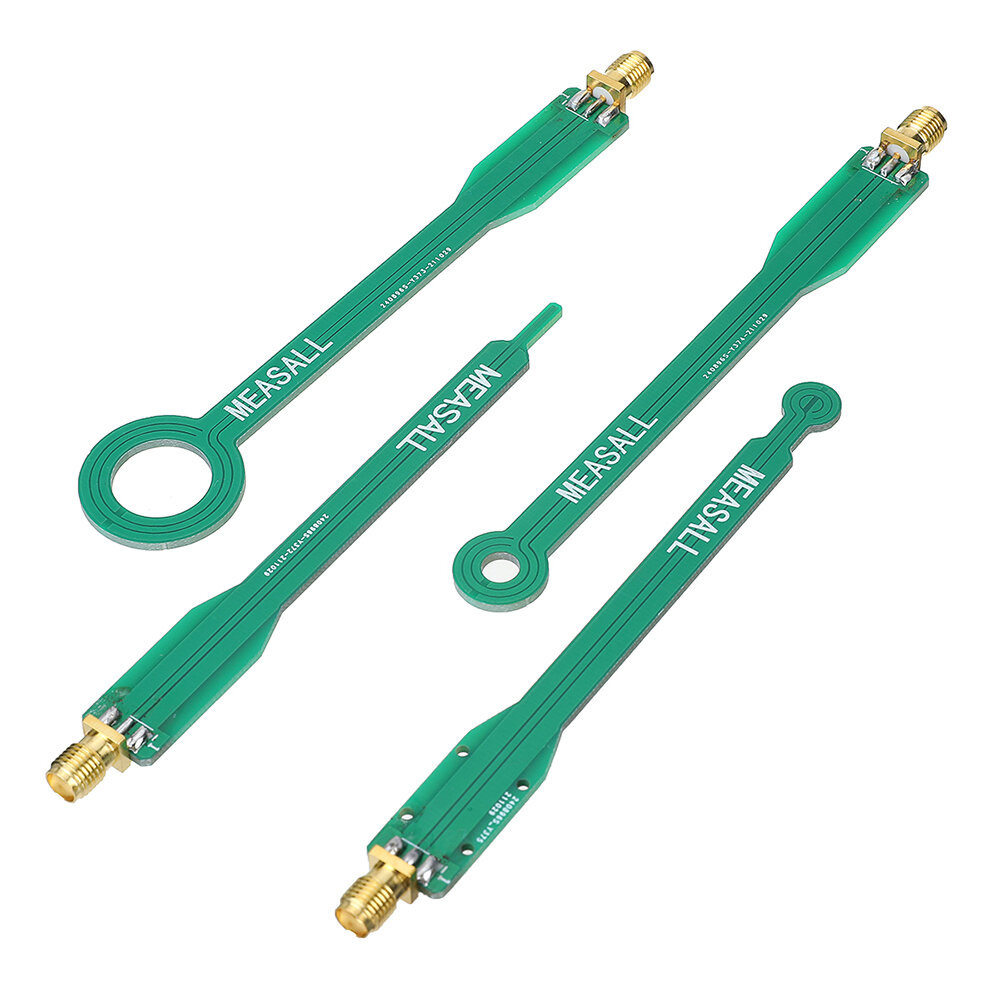

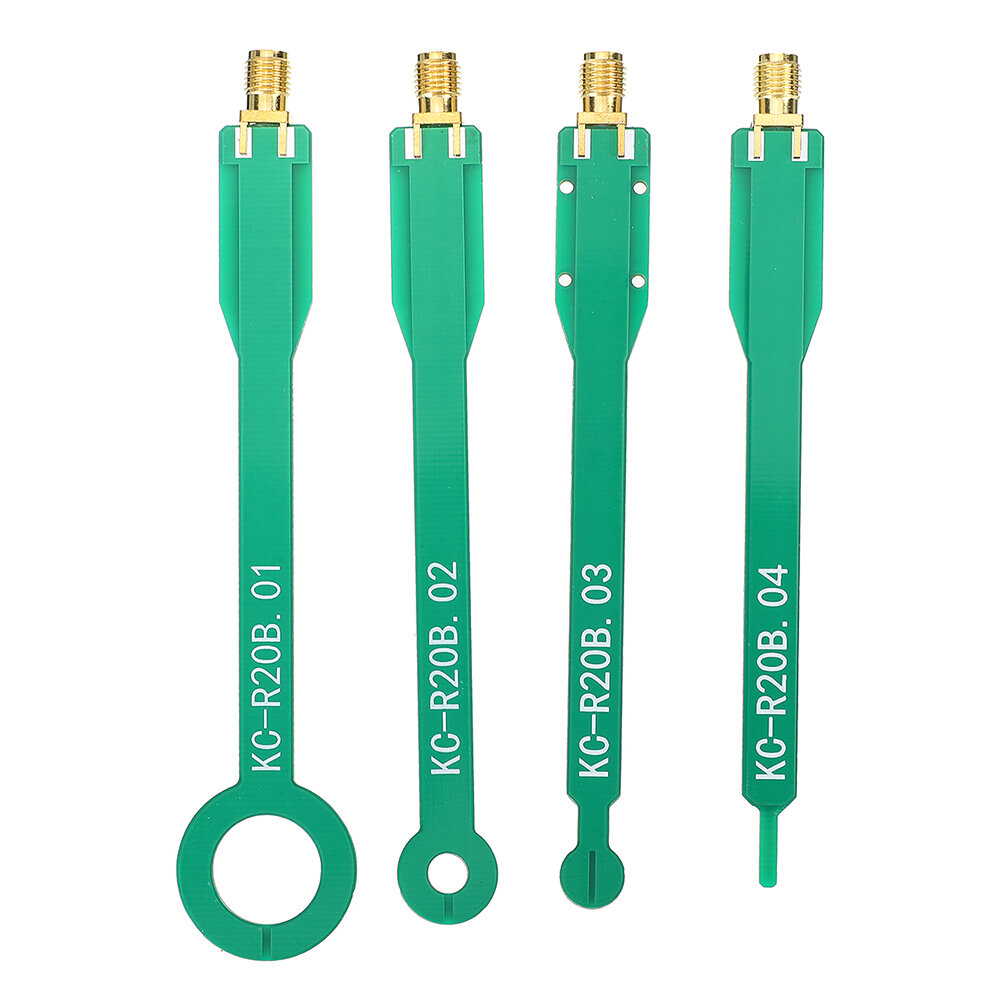

Feature:The KC R20 near-field probe set contains three passive magnetic field probes ranging in size from large to small. The probe has a relatively flat frequency response from 30MHz to 3GHz, which is used to measure magnetic fields during the development phase; and an electric field probe.Magnetic field probes are also sensitive in low frequency bands. The detection diameters of the three probes are 20mm, 10mm, and 5mm respectively. The probe with a larger diameter has high sensitivity but low directional resolution. The corresponding small-diameter probe has low sensitivity but directional resolution. The rate is high.When using, usually first use a large-sized probe to confirm the area where the interference source is roughly located, then switch the small-diameter probe to narrow the search range, and gradually identify the source of the interference magnetic field in the electronic moduleProduct size: 120*22MMProduct weight: 20 grams
Package includes:
4 x probe
