Description

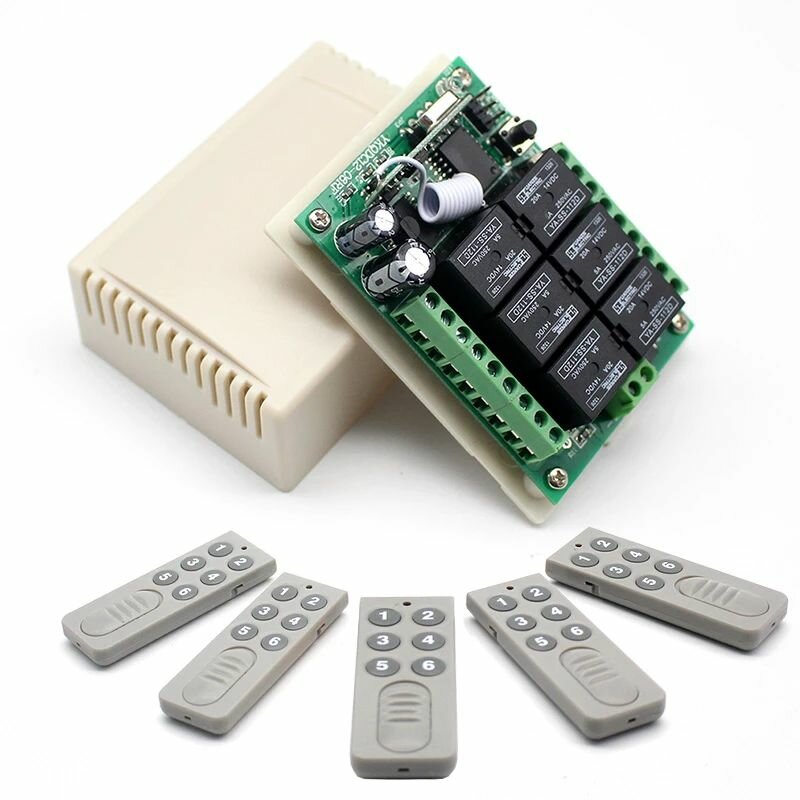

Receiver Description?1, the working voltage: DC12V2, quiescent current: 8mA3, operating frequency: 433MHz4, load power: (each relay corresponding load 10A)5, receiving sensitivity: -105dbm6, frequency deviation: ± 0.2MHz7, coding method: learning type8, working mode: jog, self-locking, interl0cking9, modulation method: ASK10, remote control distance: 100M (wild)11, PCBA size: 68mm*48mm*18mm12, shell size: 76mm*46mm*30mm
Transmitter Description?
1 , the working voltage: 12V27A Battery ,Including battery2, quiescent current: basic power consumption3, operating current: ? 10 mA4, operating frequency: 433MHz (other frequencies can be customized)5, transmission power: ?10 mW6, remote control distance: 100M (empty measured)7,Modulation method: ASK8, chip type: RT226010. Working environment: -15/+75 degrees Celsius
The wiring instructions:
1, +V: connect to the positive 12V power supply;2. GND: Connect to the negative pole of 12V power supply;3, NO: output; normally open end of the relay;4, COM: output; relay public end;5, NC: output; normally closed relay;
Learning code:
1, Press the control panel pairing button once, the LED indicator flashes. Press the remote control button that needs to be paired. The control panel LED indicator blinks 3 times in succession, which means that the learning code is successful.
Work mode description:
1. Set to jog output: Remove the jumper cap on the board.2. Set as self-locking output: short the "1-2" pin with the jumper on the board.3, set to interlock output: use a jumper on the board to short "3-4" pin.
The output mode explained:
1. Self-locking/Toggle: Press the remote control button at the same place, press once, the relay opens, and then press again, the relay turns off.2. Interlock/Latched: Press the remote control A key, the relay opens, press the remote control B key, the relay is off.3, Jog/Momentary: press the remote control "A" button, the relay opens, release the remote control "A" button, the relay off. If you keep pressing the "A" button on the remote control, the r elay will remain on. When you release the remote control, the relay will turn off.
