Description

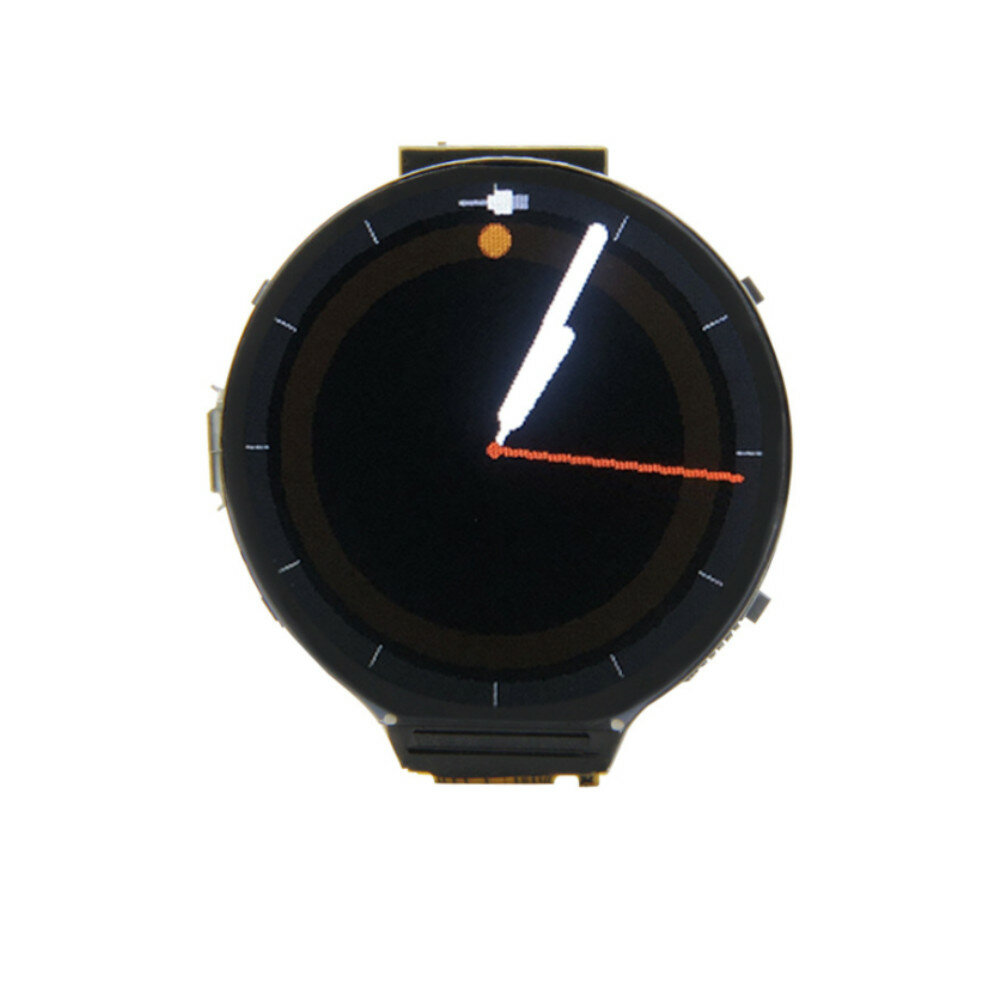

Introduction:LILYGO® & pauls_3d_things T-micro32 Open-Smartwatch is designed by pauls_3d_things, around the micro size of the LILYGO T-micro32 module based on ESP32, with a circular LCD, power battery charge and discharge management circuit, USB to TTL program upload circuit, soft The hardware is all open source.
Motherboard parameters:
-LILYGO T-micro32 module-4MB FLASH-USB to TTL CH340E-1.3 inch 240x240 resolution circular LCD-RST button X1-Custom button X3-micro USB-Battery wire welding port-RTC DS323M-Three-axis acceleration sensor BMA400-Battery charging and discharging protection chip-USB input power 5V@1A
Develop software:
-ARDUIN0-IDF-Micropython
Application scenarios:
-Make a smart watch-STEM Education-IOT device
Github link: (The link needs to be copied and pasted to the browser to open) http://open-smartwatch.github.io
Package includes:
1 X LILYGO®&3DT cooperation round screen watch
Product pin diagram: (This product has no automatic upload circuit. You need to hold down the IO0 button when uploading firmware)
