Description
Product Upgrade Content: 1. Pin GPIO34 pin is replaced with GPIO352. Replace the charging IC (TP5400) with the power management AXP1923.GPS TX, RX pin replacement4. Power on and remove, replace with button to open5. Reduced sleep current6. GPS battery replacement7. This item is out of stock now, please buy the new version>>> V1.1 version: Product ID 1609523 <<<8. CN warehouse chip: CH9102X, UK warehouse chip: CP2104Features:
ESP32
ESP32 Version: REV0.7
WIFI
bluetooth
4MB Flash
3D Antenna
LORA
Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm
Operating frequency: 433MHz/868MHz/915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
1.5uA@IDLE
Operating?temperature: -40?- +85?
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler
GPS
GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power
IP5306
2A Bat
tery Management
LED indicator: There are 4 LEDs show the battery status in real time.
Power button: Click one time will start. Fast click 2 times will shut down.
Product Details:
Pin Schematic:
Package included:

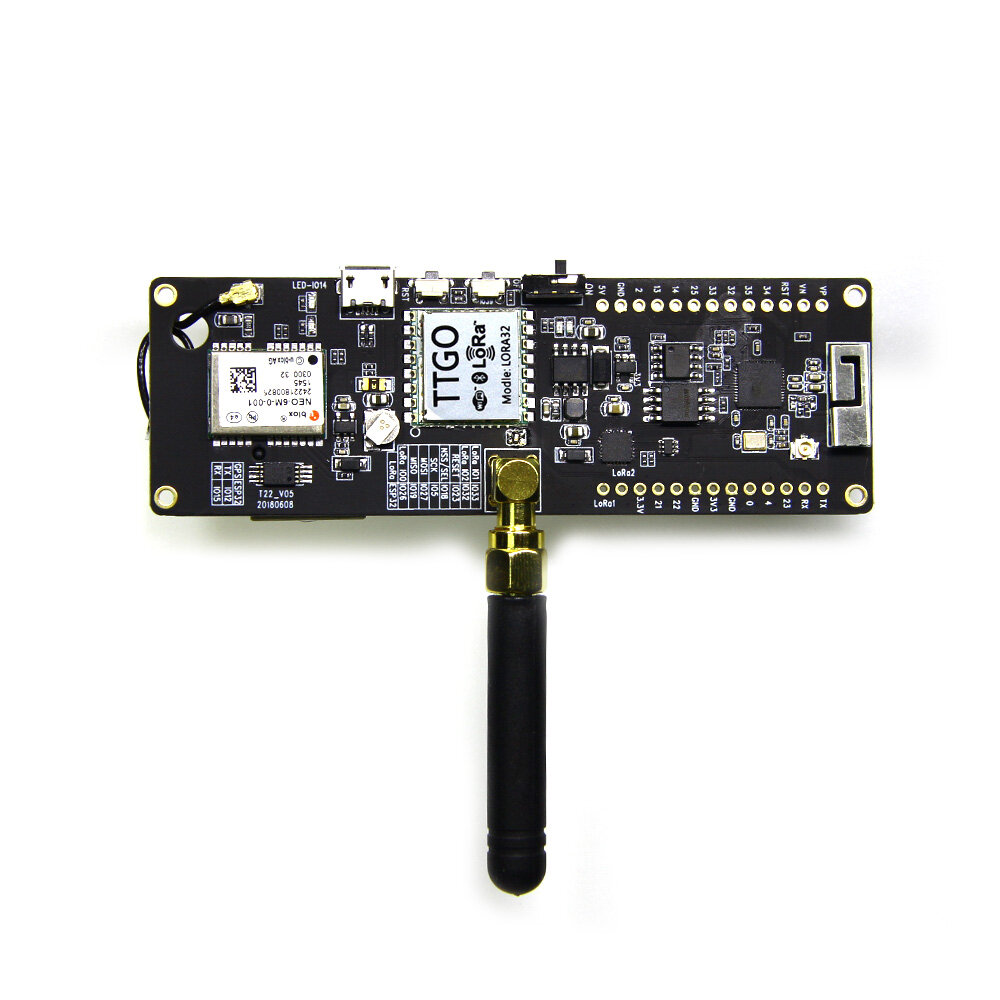

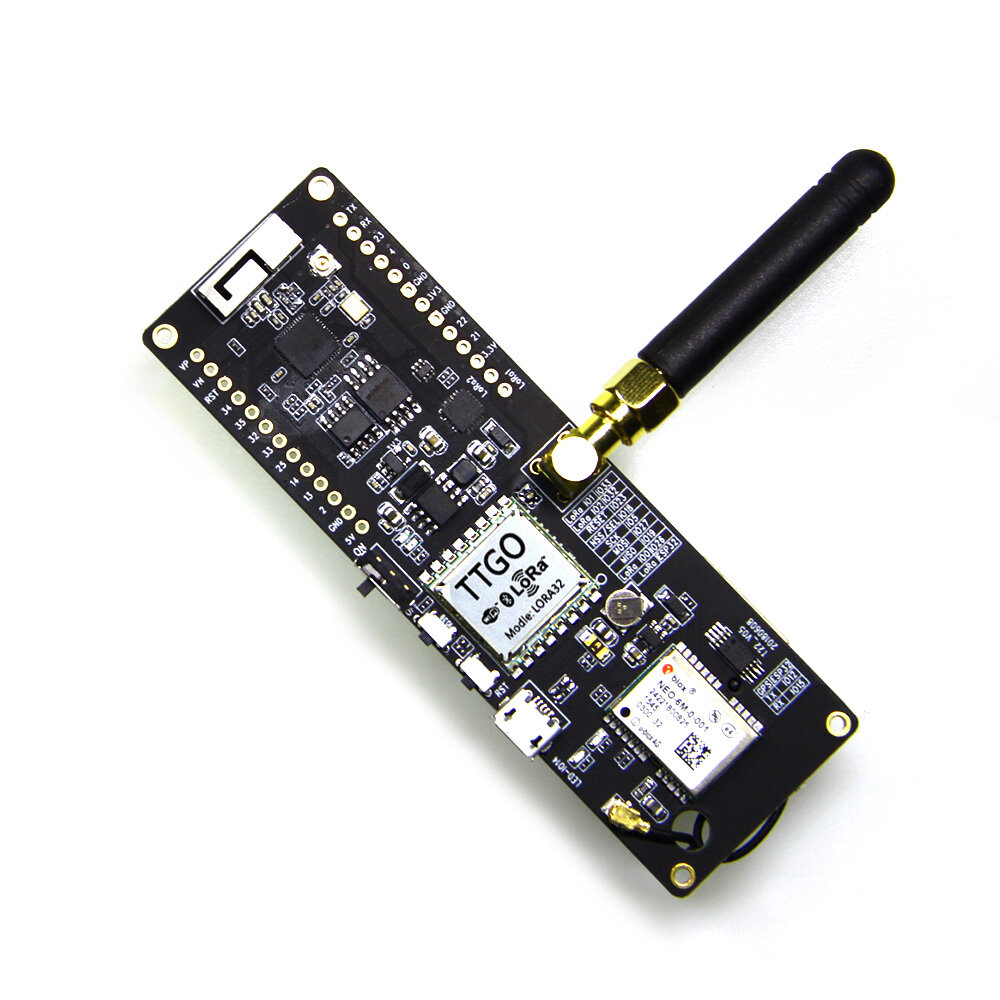

1 x TTGO T-Beam ESP32
1 x Antenna
2 x Pin
