Description
Product Upgrade Content(Compared with V1.0?1. Add reverse battery protection module
More information: https://github.com/Xinyuan-LilyGO/LilyGO-T-Beam
Product Demonstration:

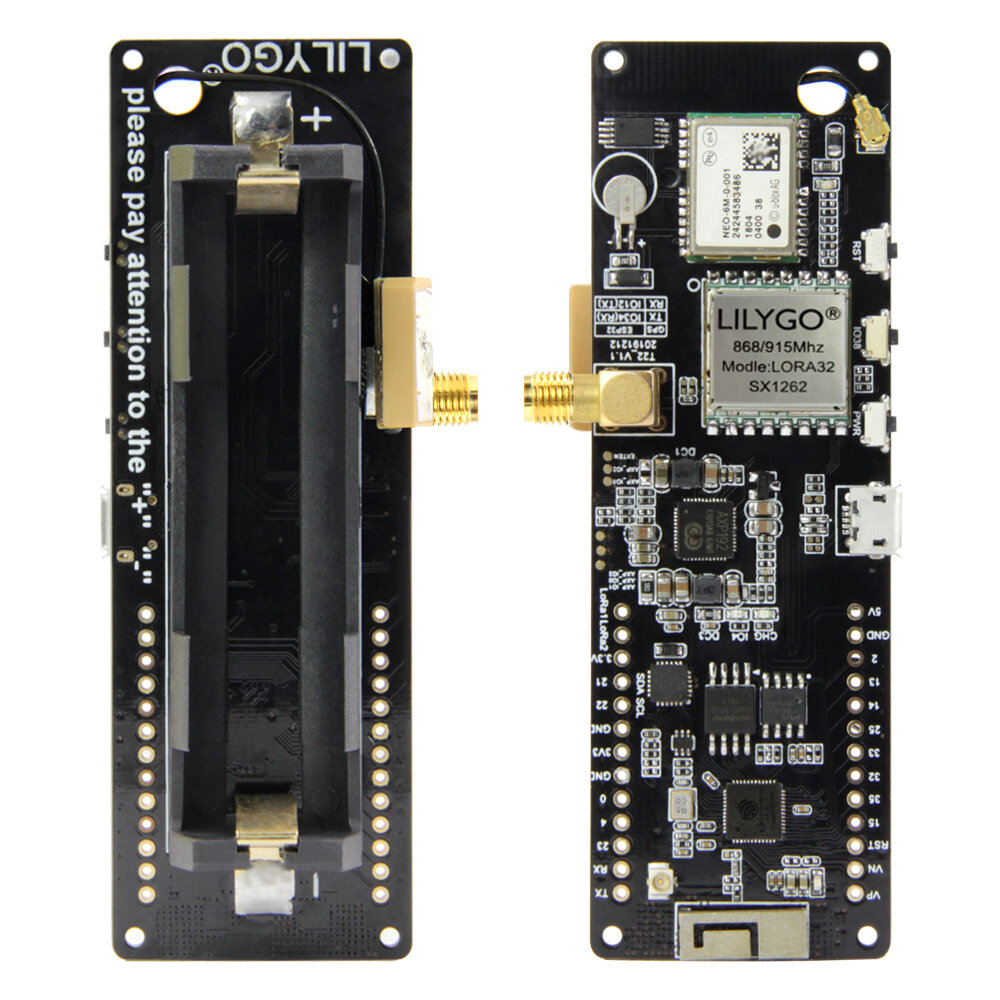

T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, works in the 868MHz ISM frequency band, integrates a highly stable TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, to -139dBm receiving sensitivity. Automatic switching of sending and receiving, isolation of internal sending and receiving channels, advanced LORA spread spectrum communication technology, with strong anti-interference and privacy, can realize long-distance wireless data sending and receiving.
Product Features:
ESP32:
Lastest ESP32 Version: REV1WIFIBluetooth 8MB PSRAM4MB Flash3D Antenna LORA:
Working voltage: 1.8~3.7VReceiving current: 4.2~8.2mAWorking frequency: 915MTransmitting power: +22dBmFrequency error: +/-0.5ppm@TCXO crystalFIFO space: 256ByteData rate: 0.6K~300Kbps@FSK, 0.018K~62.5Kbps@ LoRaTMModulation method: FSK, GFSK, MSK, GMSK, LoRaTM, OOK
GPS:
GPS modules NEO-6M, 3V-5V power supply UniversalDestined module with ceramic antenna, signal superSave the configuration parameter data EEPROM DownWith data backup batteryThere are LED signal indicatorDefault Baud Rate: 9600 Power:
Power Supply Input USB 5V/1ACharging current 500mABattery Input 3.7-4.2VCharge IC AXP192
Electrical ParametersTest conditions: power supply 3.3V, temperature 25?ParameterMinimum Typical value Max Unit ConditionWorking conditions Operating voltage1.83.33.7V Working temperature-402585? Power consumptionEmission current89100114mA 400~520MHz124130135830~945MHzReceiving current4.25.38.2400~520MHzSleep current0.0161.21.5uA Sleep modeRF parametersOperating frequency400433.92/470 520MHz 400~520MHz 840868/915 945830~945MHz Transmit power19.220.621.2dBm 400~520MHz2121.321.5830~945MHzReceiving sensitivity-116-118-120868MHz@GFSK DR=1.2Kbps,?f=+/-35KHz-133-136-139868MHz@Lora BW=125KHz?SF=12?CR=4/5 Harmonic0-38433.92MHz?2~6harmonics0-43470MHz?2~6 harmonics0-37868MHz?2~6 harmonics0-40915MHz?2~6 harmonicsFrequency error-0.43400.434KHz 433.92MHz -0.91500.915915MHz Transmission rate0.6K~300Kbps@FSK 0.018K~62.5Kbps@ LoRaTM Modulation methodFSK, GFSK, MSK, GMSK, LoRaTM?OOK Data interface SPI Antenna interfaceNeed to weld external antenna
Package includes:

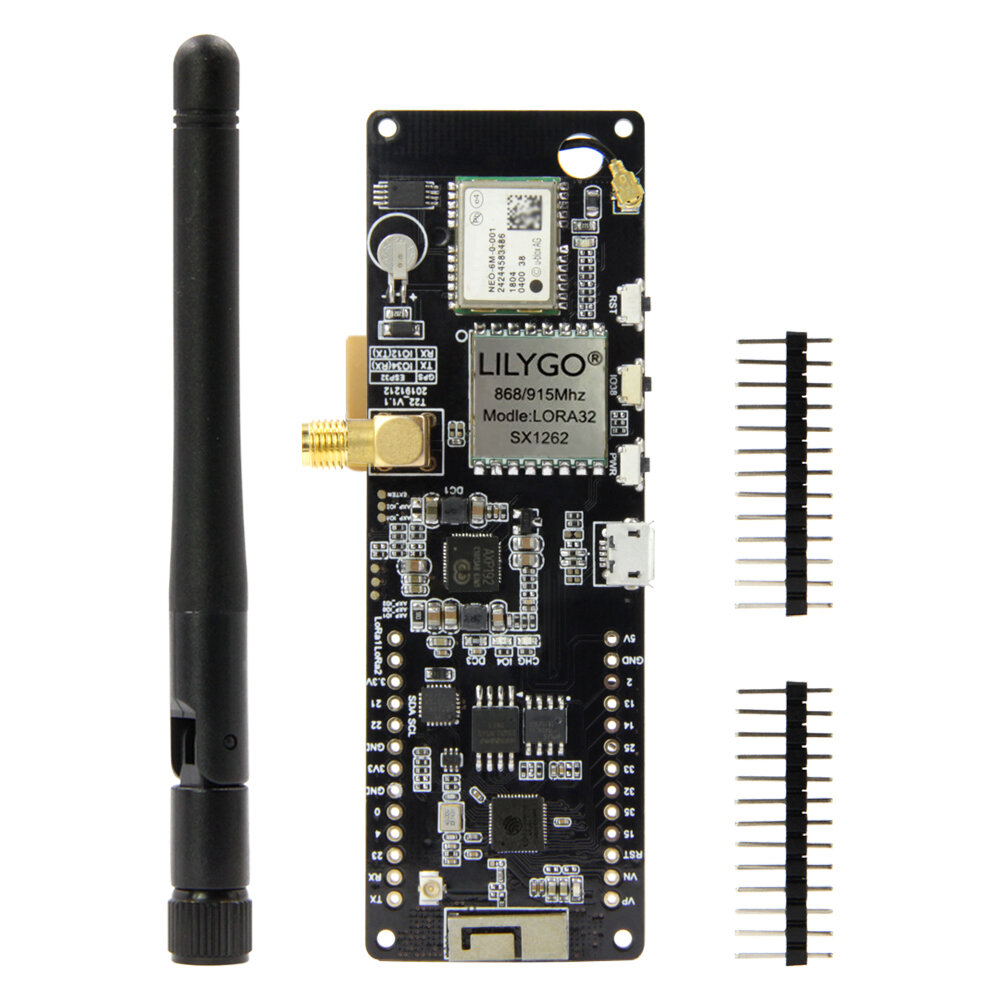

1 X TTGO T-Beam SX1262 915Mhz V1.11 X 915MHz Antenna2 X Pin
