Description

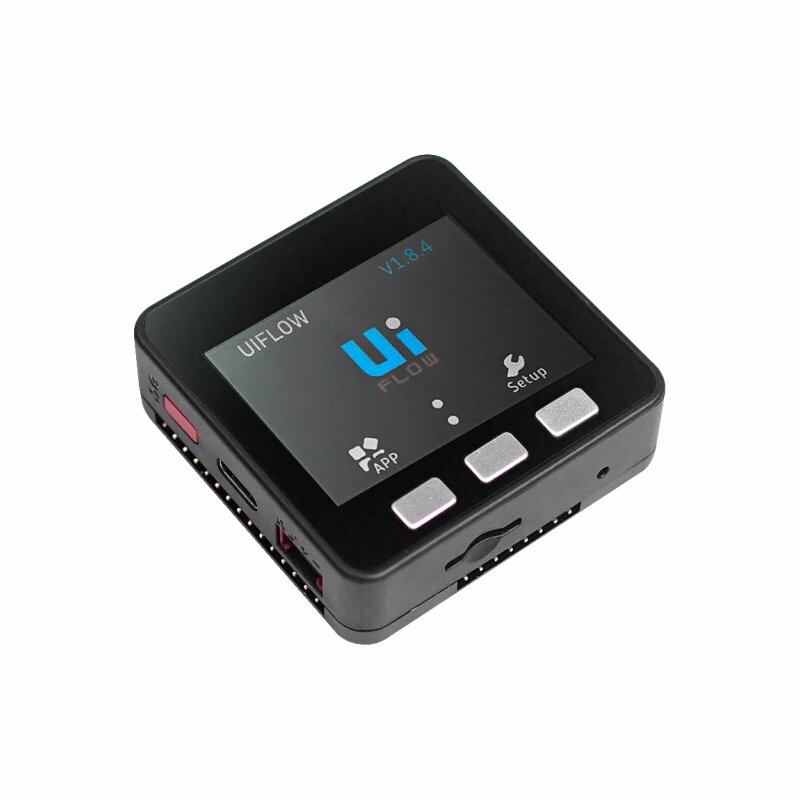

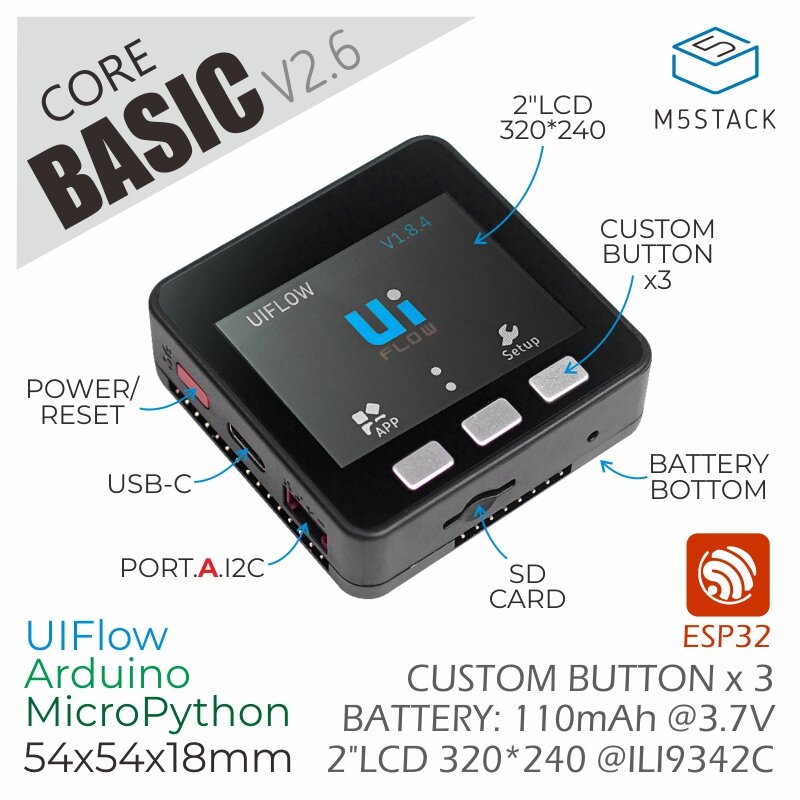

?Description:BASIC is a cost-effective entry-level IoT main controller. It adopts Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with main frequency up to 240MHz. Built-in 16M FLASH memory, integrated 2.0-inch full-color HD IPS display panel, speaker, TFCard slot and other peripherals. The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.
High productization:Exquisite designs, Prototyping right into productsProduct-grade full-coverage cover for more stable circuit operationLow Code Development:Support UIFlow graphical programming platform, scripting-free, cloud pushFully compatible with mainstream development platforms such as Arduin0 and ESP32-IDFSupport FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.High Integration:2.0 inch IPS display panel, speakers, custom buttons x3Built-in lithium battery power, integrated power management chip, support TypeC interfaceFinely tuned RF circuit for stable and reliable wireless communicationStrong Expandability:15x IO leadsEasy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion
Power on/off operation:Power on: Click the red power button on the leftShutdown: Quickly double-click the red power button on the left*USB power supply *: By default, when USB is powered, it cannot be shut down
Driver Installation:
Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP210X (for CP2104 version)/CP34X (for CH9102 version) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure which USB chip your device uses, you can install two drivers at the same time. During the installation process of CH9102_VCP_SER_Mac0S, an error may occur, but the installation is actually completed, just ignore it.)Driver nameApplicable driver chipDownload linkCP210x_VCP_WindowsCP2104DownloadCP210x_VCP_Mac0SCP2104DownloadCP210x_VCP_LinuxCP2104DownloadCH9102_VCP_SER_WindowsCH9102DownloadCH9102_VCP_SER_Mac0SCH9102Download
Features:
Based on ESP32 development16M FLASHIntegrated full-color high-definition IPS display panel and a variety of hardware peripheralsRich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.Compatible with multi-platform development:UIFlowMicroPythonArduin0
Package Included:
1x BASIC10x Dupont line1x Type-C USB(20cm)1x manual1x sticker
Application:
IoT ControllerDIY creator worksSmart home control
Specifications:
SpecificationsParametersESP32-D0WDQ6-V3240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode BluetoothFlash16MBInput power5V @ 500mAInterfaceTypeC x1, I2C x1IOG21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36ButtonPhysical button x 3LCD screen2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nitSpeaker1W-0928USB chipCH9102FAntenna2.4G 3D AntennaBattery110mAh @ 3.7VNet weight47.2gGross weight93gProduct size54mm x 54mm x 18mmPacking size95 x 65 x 25mmCover MaterialPlastic ( PC )
EasyLoader:
EasyLoader is a simple and fast program burner, which has a built-in product-related case program, which can be burned to the main control through simple steps to perform a series of functional verification.
Download Windows Version Easyloader
Download Mac0S Version Easyloader
Pinmap:
LCD screen & TF cardLCD pixels: 320x240 TF card supports up to 16GBESP32 ChipGPIO23GPIO19GPIO18GPIO14GPIO27GPIO33GPIO32GPIO4TF CardM0SIMISOCLK////CS
Button & SpeakerESP32 ChipGPIO39GPIO38GPIO37GPIO25Button pinBUTTON ABUTTON BBUTTON CSpeaker///Speaker pin
GROVE interface A & IP5306The power management chip (IP5306) is a customized I2C version, and its I2C address is 0x75. Click here to view Register manual of IP5306.ESP32 ChipGPIO22GPIO215VGNDGROVE ASCLSDA5VGNDIP5306
