Description

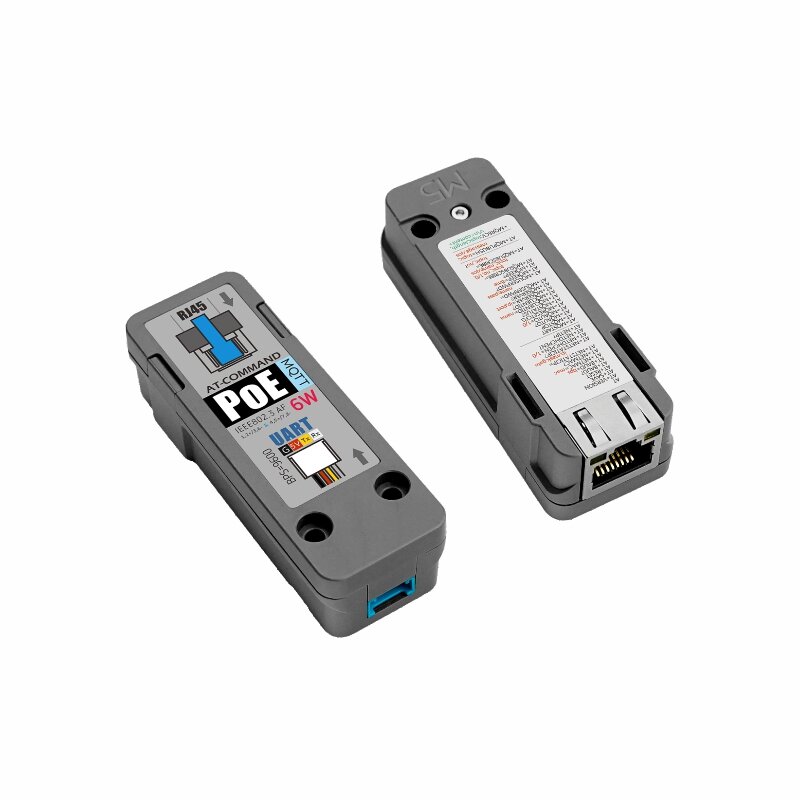

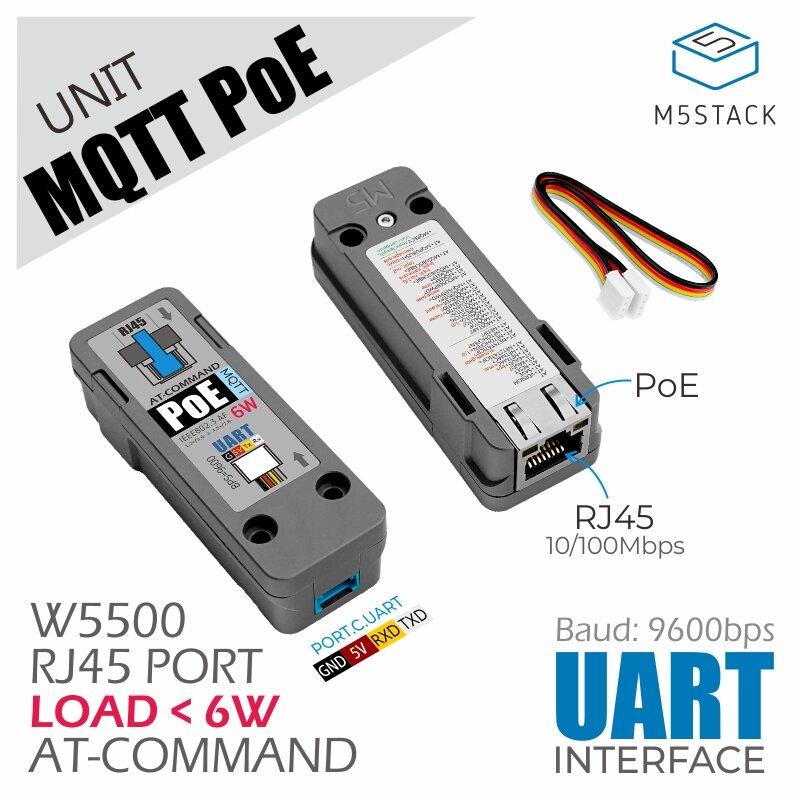

Description:UNIT MQTT PoE is an Ethernet MQTT communication module, supports PoE power and embedded W5500 Ethernet chip, as well as the UART communication interface (AT command control). The module is also equipped with an integrated RJ45 10/100 Mb network port, supports subscription of four topics (topic). With extremely low network latency and high stability, it is designed for industrial automation, security monitoring system, automation measurement, and equipment data on the cloud applications.The PoE version has integrated PoE power, with 1.2A@5V (6W) load capability.
Product Features:
Embedded W5500 Ethernet chipRJ45 network port 10/100MbpsPoE power supply: 1.2A@5V(6W)Ethernet MQTT communicationSupport 4x Topic subscriptionLow latencyDevelopment method.AT command, UART: 9600bps, defaultDevelopment Platform: UIFlow, Arduin0Applications: Remote data collection/up to the cloud
Specification:
Module Processor: ARM Cortex-M3Communication interface: UART: baud 9600bps 8N1 defaultMQTT: Support 4x Topic subscription, not support MQTTSNetwork port: RJ45 adaptive 10/100M network portDelay: Delay 10msPoE power supply capability: 1.2A@5V(6W)Working current: 190mAStandby current: 130mAGross weight: 27.0gNet weight: 34.2gProduct size: 72 x 26 x 19 mmPacking size: 73 x 35 x 20 mm
Package included:
1 x UNIT MQTT1 x HY2.0-4P cable (20cm)
PinMap
M5CoreTX(GPIO17)RX(GPIO16)VCCGNDUNIT MQTTRXTXVCCGND
Examples
Arduin0
MQTT TEST
UIFlow
