Description

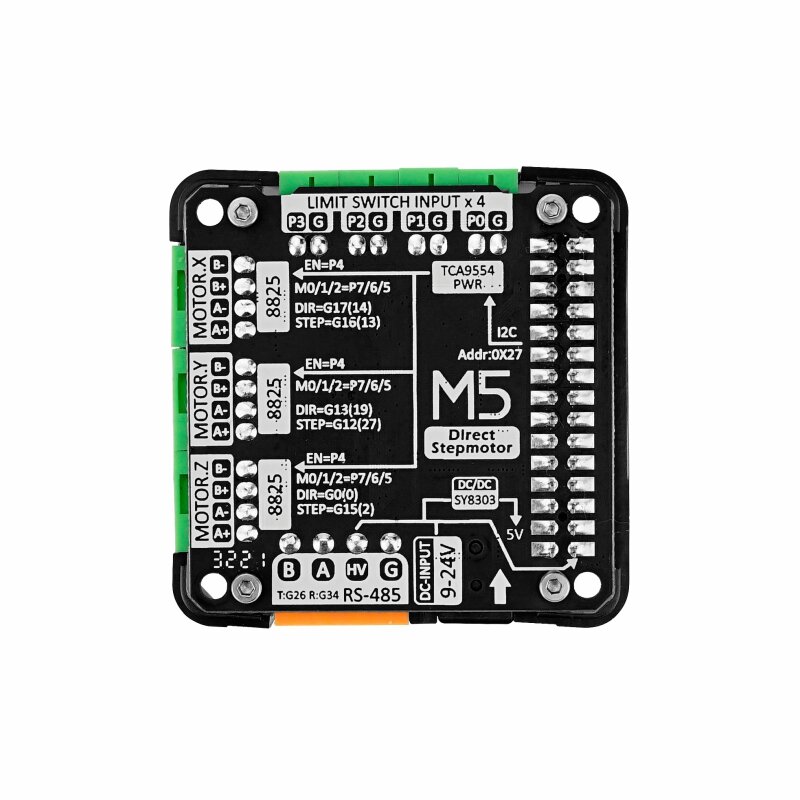

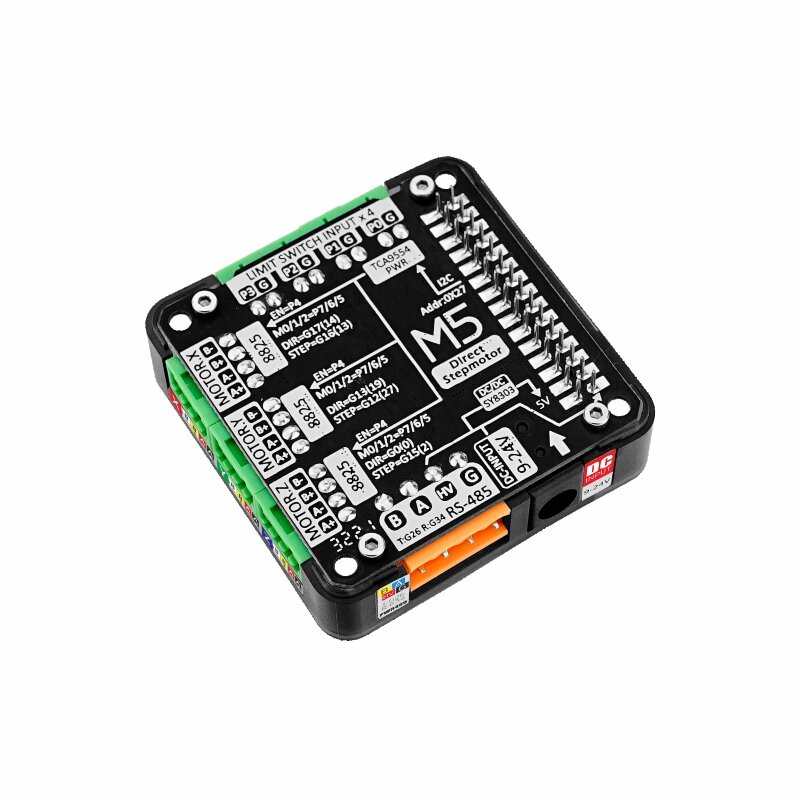

Description:StepMotor Driver is adapted to M5 core series, the HR8825 chip solution provides a 3-way bipolar stepper motor control interface. You can implement independent control or multi-axis motor linkage after this module is stacked with M5 core series of the internal ESP32 generates signals directly to the driver chip.This module integrated TCA9554 IO expansion chip provides 4 sets of input signal terminals + 3 sets of stepper motor subdivision control + 1 set of drive chip enable control, through the I2C interface control, can monitor and control the 8 expansion IO state, as well as for external limit switch, dynamic subdivision adjustment, motor braking. Integrated PWR485 communication interface (RS485 + 9-24V power input) and DC-JACK, which can be used for communication and more flexible power supply. Download the UIFLOW and you're ready to go!With ESP32-GRBL firmware, web control. It can be easy to configure signal output and very useful when you need to position something very accurately. such as:printers, robotic arms, etc.
Note:It is forbidden to plug or unplug the motor when it is powered on. All operations should be performed after the device is powered off to avoid damage to the module.
Product Features:
Three-axis HR8825 stepper motor driverSuitable for bipolar stepper motorsWith current regulating potentiometer per circuit, drive current up to 1.5ASupport various subdivision modes, up to 1/32 STEP subdivisionMultiple signal input interfacesPWR485 communication interface (RS485 + 9-24V power input)DC-JACK terminal input (9-24V)Built-in DCDC, integrated 9-24V to 5V circuitDevelopment platform.Arduin0, UIFlow
Specification:
SpecificationsparametersStepper motor driver chipHR8825IO Expansion ChipTCA9554Support for segmentationFULL?1/2?1/4?1/8?1/16?1/32Maximum drive current per channel1.5AInput Signal Terminal Specifications2.54-2PMotor terminal specifications2.54-4PRS485 terminal specifications3.96-4PNet weight40gGross weight60gProduct Dimensions54.2 * 54.2 * 13.2mmPackaging size95 * 65 * 25mm
Package Included:
1 x StepMotor Driver4 x 2.54-2P terminals3 x 2.54-4P terminals1 x 3.96-4P terminals
Applications:
PrintersScannersCNC engraving machine controlMotion Module Control
Microstep truth table
M2M1M0Resolution000FULL0011/20101/40111/81001/161011/321
