Description

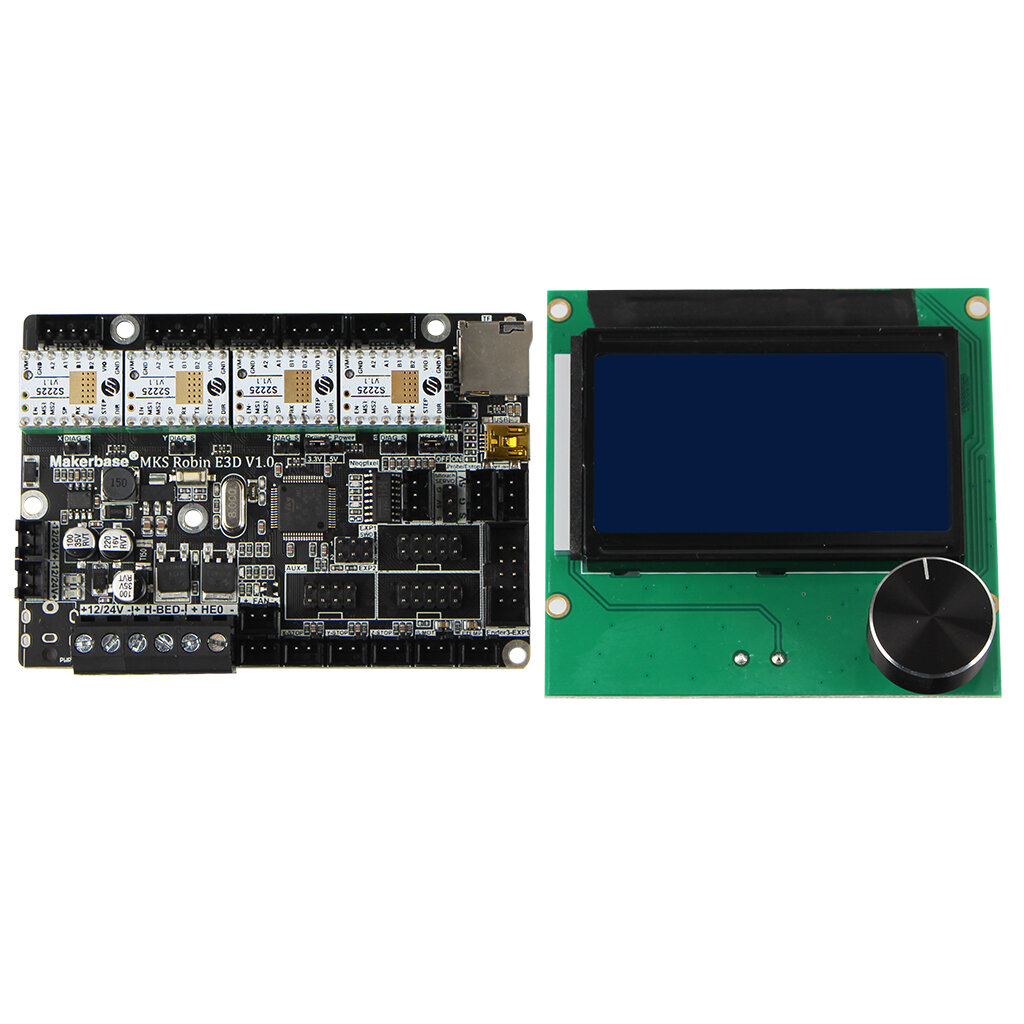

MKS Robin E3D Board :? MKS Robin E3D v1.0 is specially designed for fans of 3D printers who love Creality Ender-3 Ender-3S Ender-3PRO cr-10 cr-10S machines. Compared with the TMC2208 integrated with Creality V1.1.5 Stepper motor driver chip, MKS Robin E3D v1.0 has been upgraded to replace the stepper motor driver as you like.
?
Features:
?
?1. Pluggable drive interface, you can choose A4988/TMC2208/TMC2209,eg
?2. Support A4988 DRV8825 TBS109 LV8729 TMC2208 TMC2209 TMC2225 TMC5160 TMC5161 ... etc. driver 3. Cost-effective and easy to replace 4. Support uart mode and unlimited zero return function
5. Accurate installation size and location 6. Support Creality original 12864LCD Universal 12864LCD 2004LCD MKS TFT28 / 32/35 color touch screen displa
?
Robin E3D User Manual. click here??
Use MKS TMC2209 V2.0 uart mode SENSORLESS_HOMING function. click here?
?Support Marlin 2.0 click here download??
About TMC2225 silent driver : The TMC2225 chip is a resonance-inhibiting, ultra-quiet stepper motor driver chip. It integrates the driver and MOS, and the pins are fully compatible with DRV8825; the cost performance is very advantageous. When the traditional traditional driving chip drives the stepper motor, there will be high-pitched noise or motor jitter audible to the human ear, which seriously affects the experience of the product. TMC2225 uses StealthChop mute technology to reduce the noise of stepper motors under 10dB at low speeds to achieve ultra-quiet performance. It can also use SpreadCycle resonance suppression technology to make stepper motors run smoothly at high speeds without jitter. Parameters: ? Application: two-phase stepper motor; ? Current: 2A (peak value) ? Voltage: 4.75-36V DC ? Interface: STEP / DIR; UART ? Subdivision: 4, 8, 16 or 32 microsteps ? Microstep: UART configuration can realize 1-256 arbitrary subdivision ? Function: StealthChop2 ultra-quiet

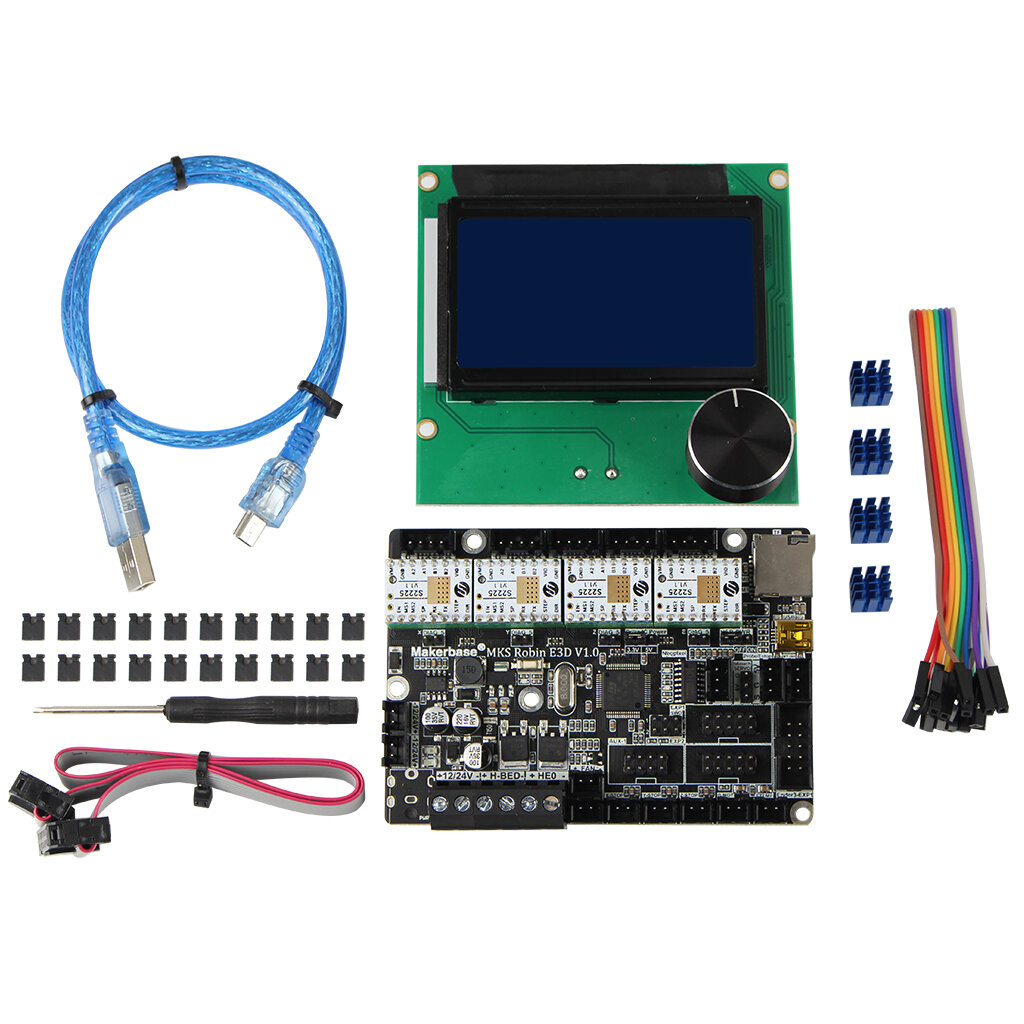

Package Included:
?
MKS Robin E3D v1.0 * 1 Data cable * 1 Jumper cap * 20 Original 12864LCD display * 1 Gray cable * 1 Knob * 1 TMC2225 stepper motor driver * 4 Medium heat sink * 4?
