Description

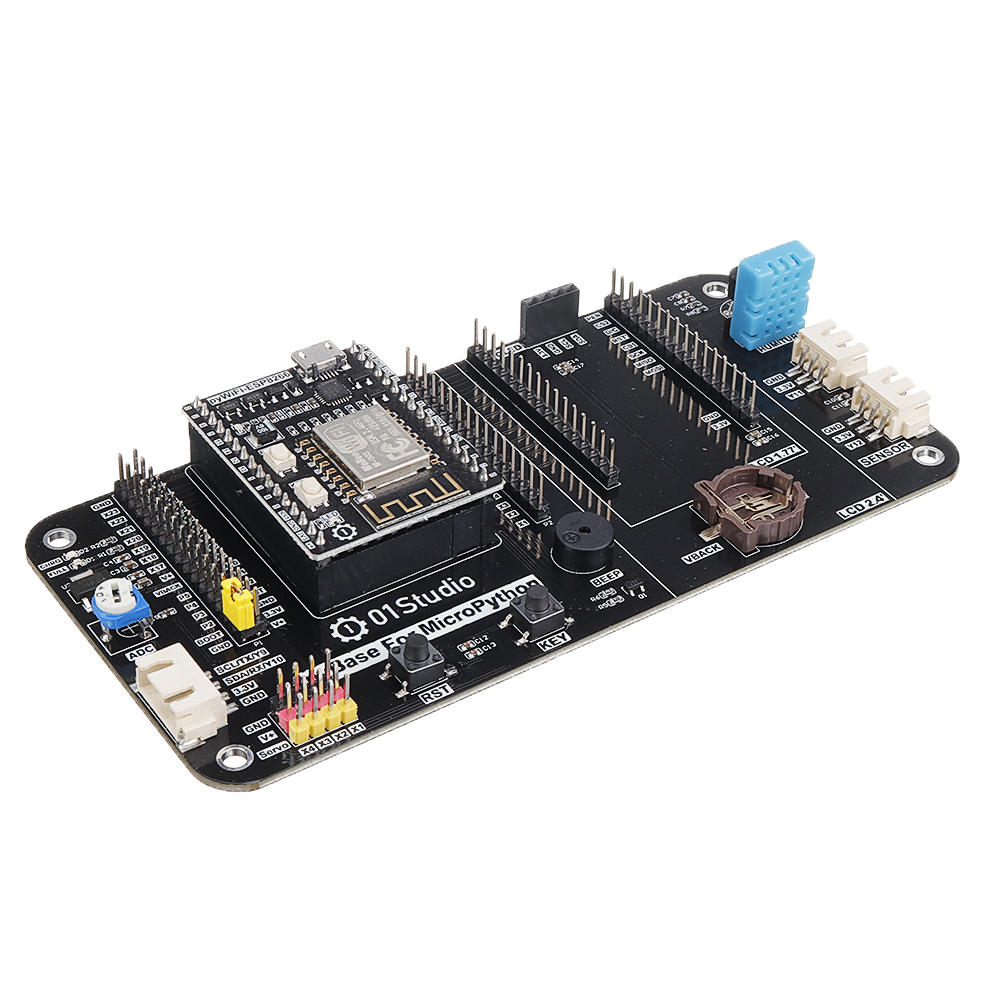

pyBase Board: pyboard interface: support pyboard, pyWiFi-ESP32, pypyWiFi-ESP82662.54mm pin header: lead out all interfaces of pyboardButton * 2: RST and USR buttons are brought outPotentiometer: ADC input:Passive buzzer: DAC outputButton battery holder: Install CR1220 button batteryServo interface: servo interface * 1- * 4 (external isolation circuit is required to connect the servo)OLED interface: 4P / 0.96inch / I2C / OLED Display1.77 Inch LCD interface: suitable for 01Studio 1.77 inch LCD display2.4 Inch LCD interface: suitable for 01Studio 2.4LCD displayTemperature sensor: DS18B2DTemperature and humidity sensor: DHT11Sensor interface 1: 3P interface for external sensorsSensor interface 2: 3P interface for external sensorsCommunication interface: 4P interface for external UART / I2C equipmentLithium battery charging circuit: charge the connected lithium battery (red light-charging, green light-full)pyWiFi- ESP8266More document click to open:http://docs.micropython.01studio.org/zh_CN/latest/esp8266/quickref.html

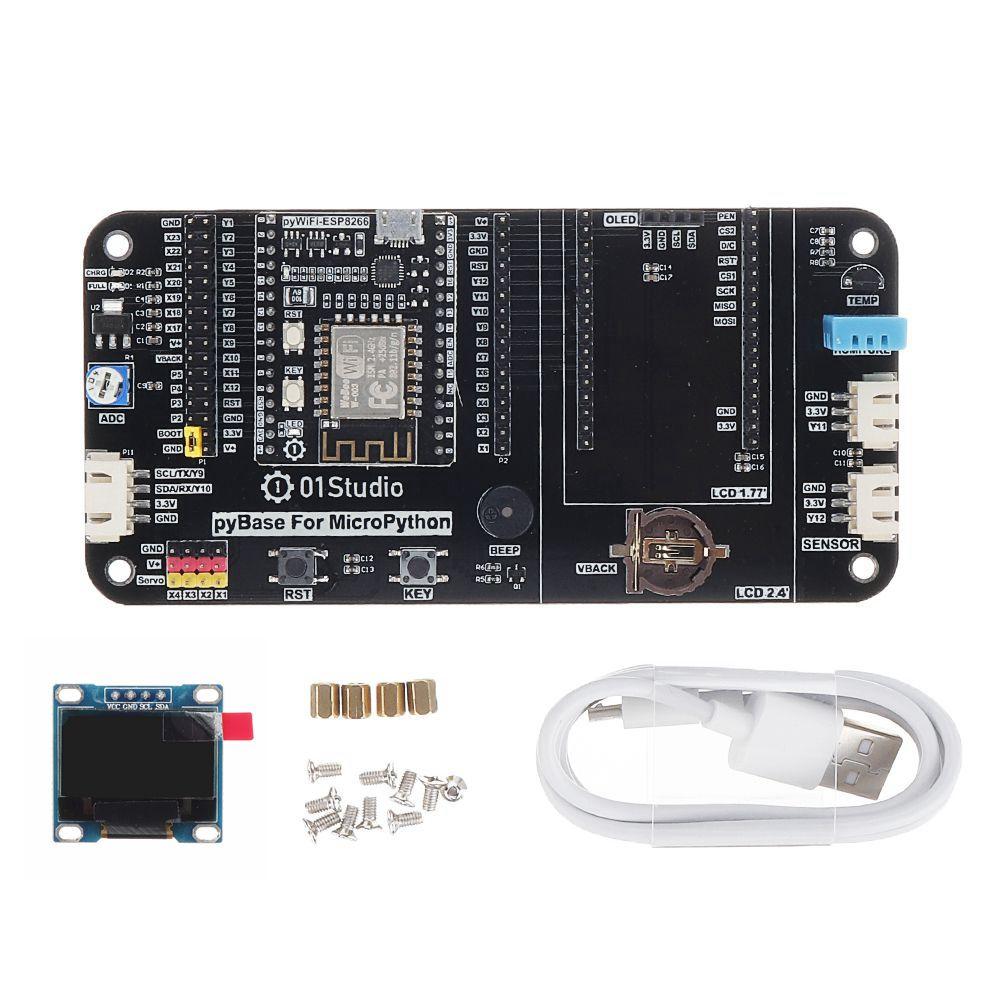

Package Included:
1 x pyBase Board
1 x pyWiFi- ESP8266 Development Board
1 x 0.9 inch OLED
1 x Mocro USB Cable
