Description
Tips: Due to appearance and weight issues, we have tried our best to protect the product, but collisions and other problems may occur during transportation, and the appearance of the product may be slightly curved. You can try to use tools for some repairs. If it affects the normal use of the product, please contact us, thank you for your understanding.ProjectTechnical ParametersDC Output Voltage65V Actually can reach 85V (designed for Product ID: RD6012P)Rated Output Current11.4ARated Output Power800WRipple and Noise?240mVOutput Voltage Accuracy±1%Output Voltage Adjustable Range±10%load Regulation?±0.5%Line Regulation?±1%Output Overload Protection105%-135% Type: constant current output
+VO Drop to undervoltage point cut off the output
Reset: Reconnect the inputOutput Over-Voltage Protection115%-145%Output undervoltage protection40%-45%V OUTEfficiency (typical)?85%Over temperature protectionRTH3: ?70? the fan runs fast
?90? shut down the output (18V-48V)Input voltage range90-132VAC/180-264VAC, 47Hz~63Hz; 254VDC~370VDCInput inrush current110VAC 25A, 220VAC: 50AMaximum input working current<13A 115VAC,<7.5A 230VACSet-Up/Rise/Hold-Up Time200ms, 50ms, 20ms: 230VACDielectric Hipot Input-output: 1.5KV AC, input-shell: 1.5kV AC
Output-shell: 0.5KV AC for 1 minLeakage CurrentInput-output at 1.5KV AC; Leakage Current?6mALeakage CurrentInput-output at 220V AC; Leakage Current?1.5mAIsolation ResistanceInput-output, input-shell, output-shell: 500VDC/100M?Working temperature and humidity -10?~+50?, 20%~90RHStorage temperature and humidity -20?~+85?, 10%~95RHSize 241*125*65mmNet weight / gross weight1268/1358g
Package includes:

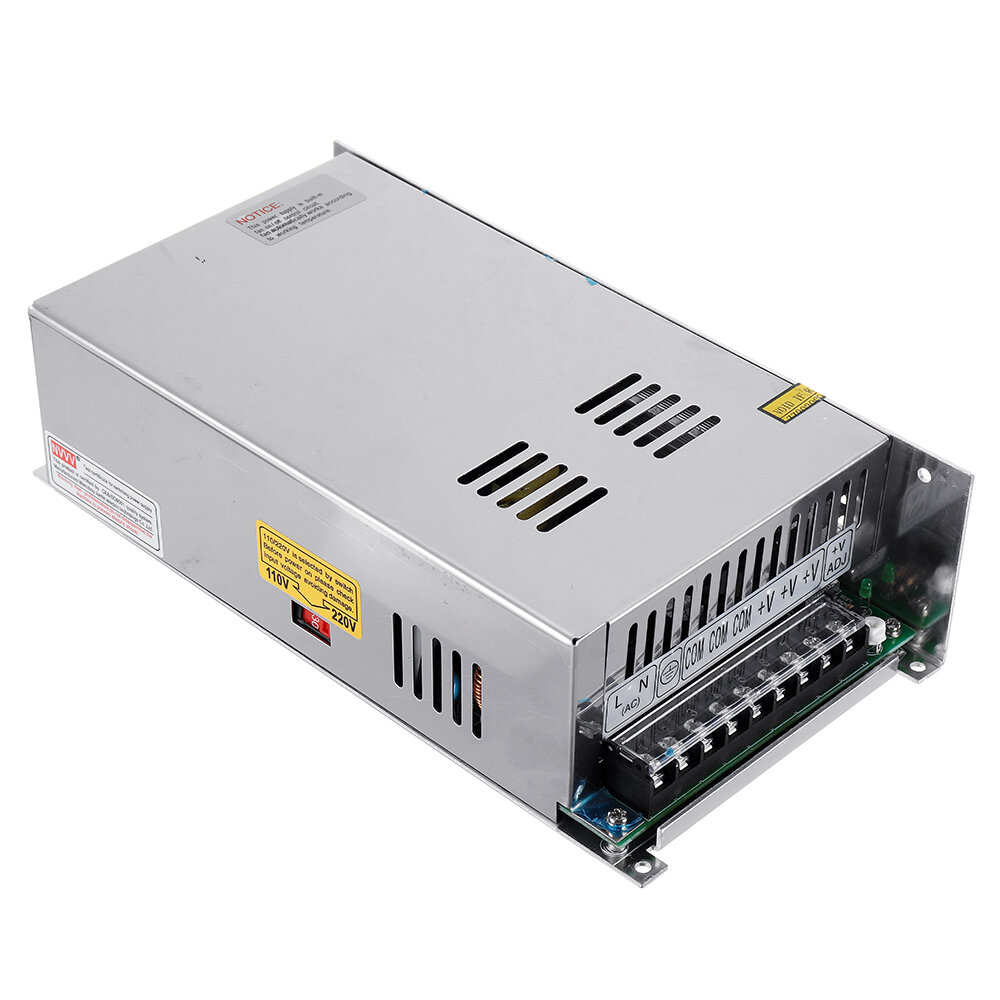

1 x Power supply
