Description
Tips: Due to appearance and weight issues, we have tried our best to protect the product, but collisions and other problems may occur during transportation, and the appearance of the product may be slightly curved. You can try to use tools for some repairs. If it affects the normal use of the product, please contact us, thank you for your understanding.
Feature:

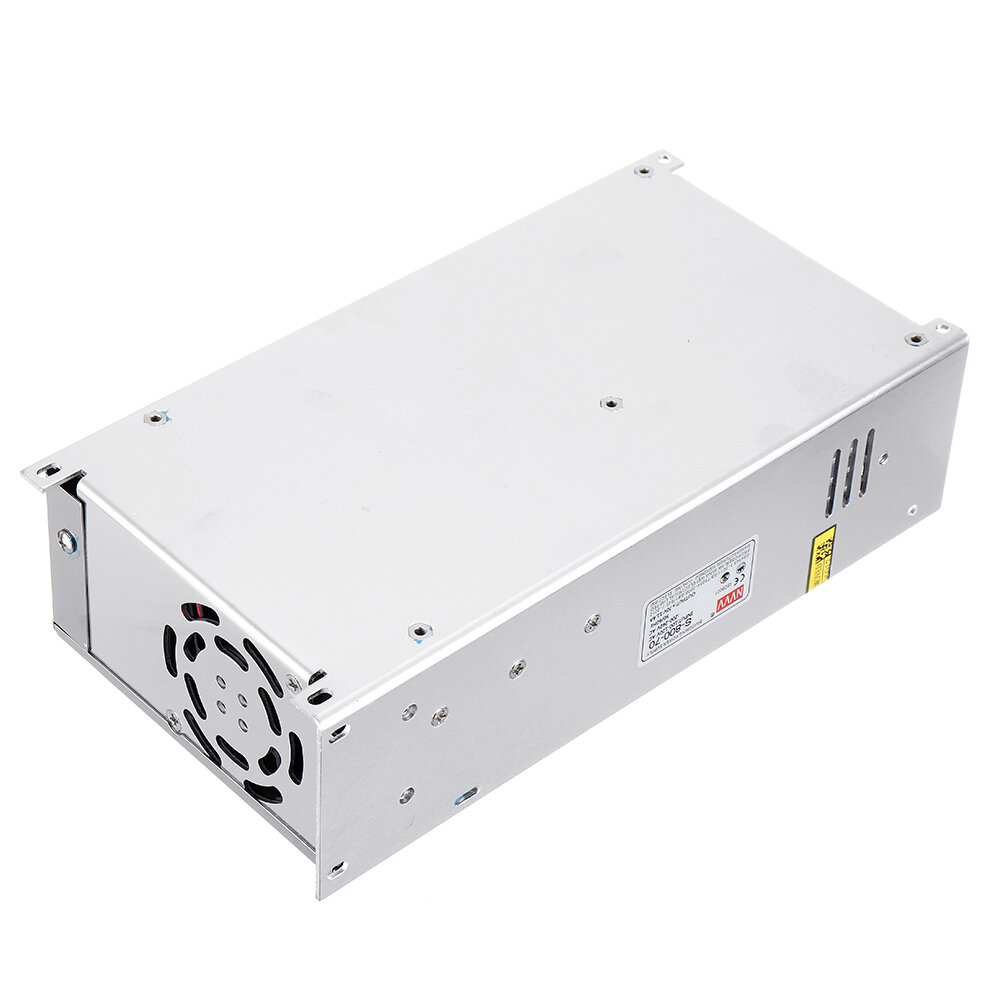

NameSwitching Power SupplyInput voltage90-132VAC/180-264VACModelS-800-65V (Custom Edition)Adjustable ±10%Voltage65VPower800WSize241*125*65mm
ProjectTechnical ParametersDC Output Voltage12V24V27V36V48V65V (this item)Rated Output Current60A33.3A29.6A22.2A16.6A11.4ARated Output Power720W800W800W800W800W800WRipple and Noise?150mV?240mV?240mV?240mV?240mV?240mVOutput Voltage Accuracy±1%Output Voltage Adjustable Range±10%load Regulation?±1.2%?±1%?±1%?±1%?±0.5%?±0.5%Line Regulation?±1%Output Overload Protection105%-135% Type: constant current output
+VO Drop to undervoltage point cut off the output
Reset: Reconnect the inputOutput Over-Voltage Protection115%-145%Output undervoltage protection40%-45%V OUTEfficiency (typical)?81%?83%?83%?83%?84%?85%Over temperature protectionRTH3: ?70? the fan runs fast
?90? shut down the output (18V-48V)Input voltage range90-132VAC/180-264VAC, 47Hz~63Hz; 254VDC~370VDCInput inrush current110VAC 25A, 220VAC: 50AMaximum input working current?13A 115VAC,?7.5A 230VACSet-Up/Rise/Hold-Up Time200ms, 50ms, 20ms: 230VACDielectric HipotInput-output: 1.5KV AC, input-shell: 1.5kV AC
Output-shell: 0.5KV AC for 1 minLeakage CurrentInput-output at 1.5KV AC; Leakage Current?6mALeakage CurrentInput-output at 220V AC; Leakage Current?1.5mAIsolation ResistanceInput-output, input-shell, output-shell: 500VDC/100M?Working temperature and humidity -10?~+50?, 20%~90RH
