Description

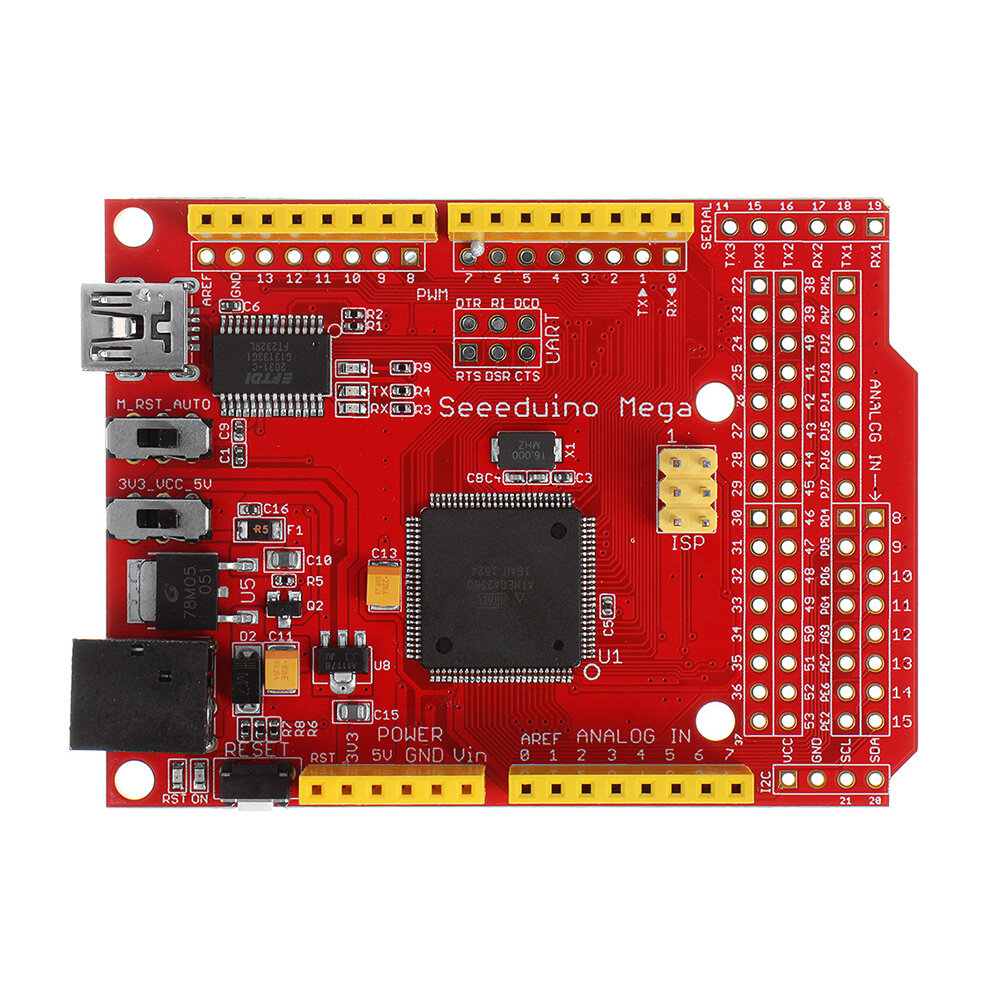

Product Details:Seeeduino Arduino Mega is a powerful micro-controller derived from Mega. It features ATmega2560 processor which brings a large number of I/O pins, as much as 70 digital I/O, 16 analog inputs, 14 PWM, and 4 hardware serial ports. Compared to Mega, we shrunk the volume of Arduino Mega by at least 30% and made it 100% compatible with Seeed Shield products. And as a member of Seeeduino series, Seeeduino Arduino Mega inherits deliberate details from Seeeduino, like selectable operating voltage(3.3V/5V), right angle reset button, and so on.
Features:
ATmega 2560 @ 16MHzSelectable 5V/3.3V operation70 Digital IO16 Analog inputs14 PWM outputs4 Hardware serial ports (UART)Compatible with most Duemilanove and Diecimila ShieldsSmall form factor, 30% smaller than MegaEasy to program, no additional hardware is required to load firmware just plug to a USB port and youre good to go.ICSP HeaderCan be powered through a battery or through a AC to DC adaptor
Technical details Dimensions 115mm x75mm x25mm Weight G.W 54g Battery Exclude Item Value Microcontroller ATmega2560 Operating Voltage 5V/3.3V Input Voltage 7-12V Digital I/O Pins 70 PWM Channels 14 Analog Input Channels 16 DC Current per I/O Pin 20 mA Flash Memory 256 KB RAM 8 KB EEPROM 4 KB Clock Speed 16 MHz
Documentations:
Seeeduino Mega Eagle FileSeeeduino Mega Pin Mapping PDFGetting Started with ArduinoArduino Language ReferenceDownload the Arduino Software(IDE)Arduino FAQArduin0 IntroductionWikipedia page for ArduinoWIKI datasheet

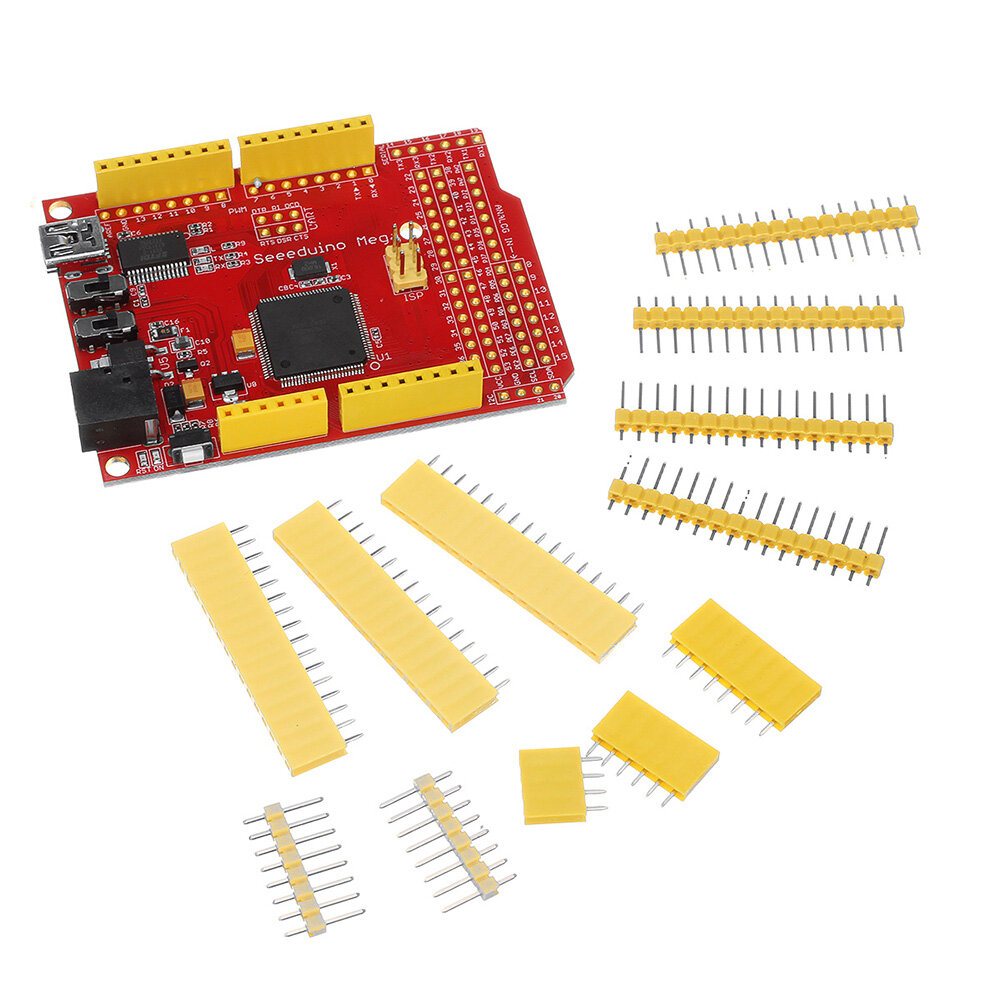

Package includes:
1 x Mega board
