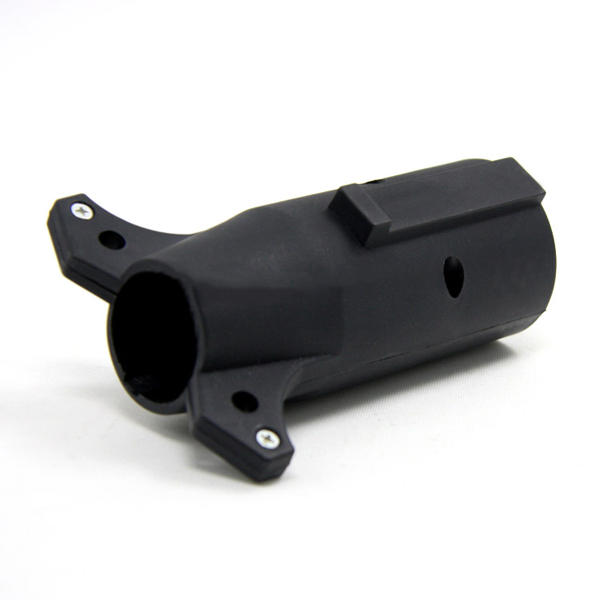

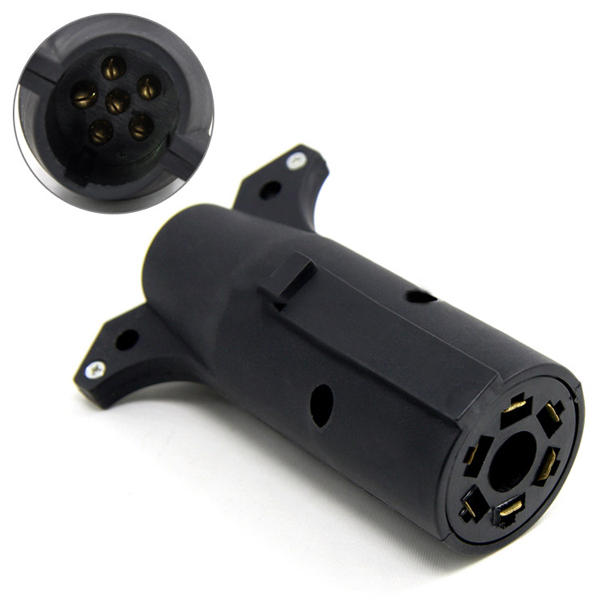

Tirol T21850 USA 7 Pin Flat to 6 Pin Round Trailer Adapter Light Wiring Plug Connector 12V
Product Details & Item Specifics
Item Type: Electrical Plug & Sockets
Item Name: 7-Pin Trailer Plug
Brand Name: Tirol
Item NO: T21848
Size: 10.5 7.5 4.5CM
Weight: 110g
Material: Plastic
Color: Black
Input: 12V
Product Description:
This standard, RV-style, 7-pole connector provides a secure connection between your trailer and tow vehicle. Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer. Black plastic construction prevents rusting, enhances appearance and makes plug removal a snap.
- Standard, 7-pole plug connects trailer to socket on tow vehicle
- Black plastic construction
- Enhances appearance
- Prevents difficulty in plug removal
- Non-corroding, shock-resistant interior design
- Terminal reinforcer dams eliminate shorting out
- Prevent contact from spreading
- Center pin accepts up to 8-gauge wire
- Vinyl inserts keep out dirt and moisture
- Promote easy removal of plug from socket
- Ensures connector is plugged into socket
Trailer Wiring Color Code Connector Function Color Suggested Minimum
Wire Gauge Where To Attach - Vehicle
Side Where To Attach - Trailer Side 7 Way 6 Way 5 Way 4 Way Right Turn Green 16 Right turn of vehicle's wiring harness Trailer's right turn signal Left Turn Yellow 16 Left turn of vehicle's wiring harness Trailer's left turn signal Ground White 12 Vehicle ground point - metal, uncoated, rustproof Trailer ground point - metal, uncoated, rustproof Tail,Marker Brown 16 Taillight of vehicle's wiring harness Trailer's taillights Brake Blue 12 Electric brake control, power for brakes Break away switch Battery Red or Black 12 Fuse block or FUSED battery Lead Break away kit, interior lights and battery charger Backup Purple 16 Back up circuit of vehicle's wiring harness Back up lights if available , Hydraulic coupler
Note: This chart is a typical guide, wire colors may vary based on manufacturers. Use a circuit tester to verify connections.
Package Included
1 x 7PIN Trailer Plug
,,,,
