Description

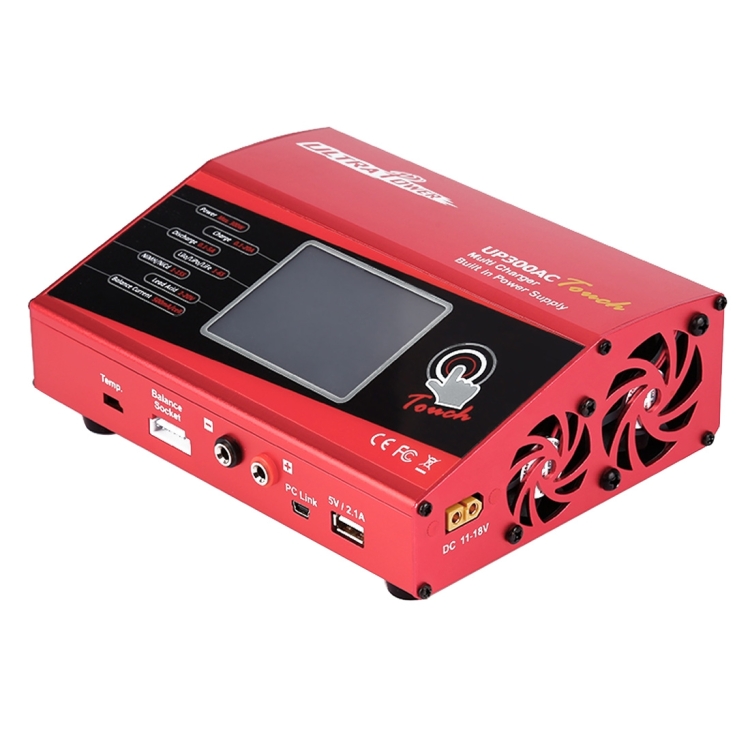

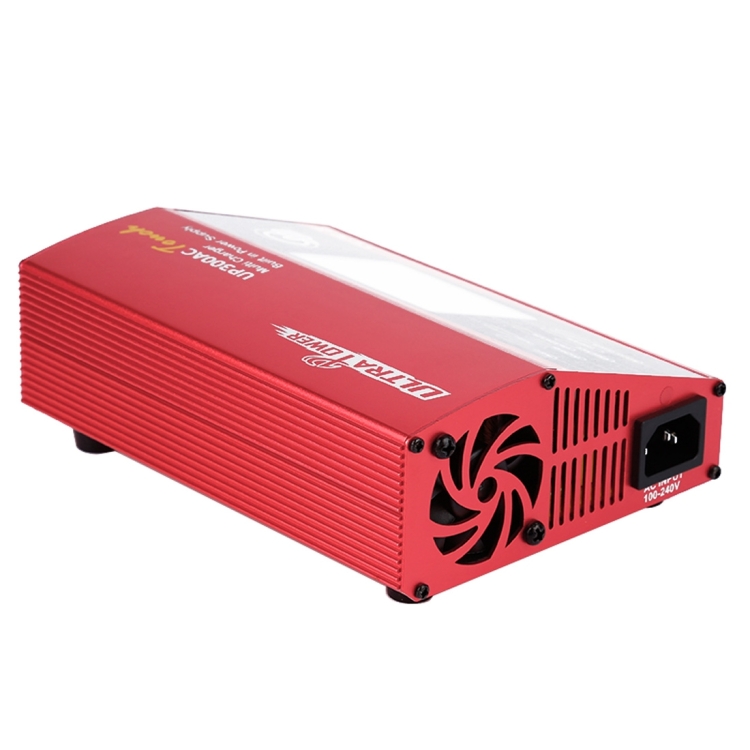

Features1. The UP300AC touch screen charger is a 300Watt 20amp AC/DC charger.
2. It comes with a male T plug, Traxxas charging adapter and a XH balance board.
3. It has a 2.1amp USB port which allows you to charge your phone, tablet or other device that can be charged via USB.
4. This charger will charge a 2S Lipo at 20 amps, 3S at 20 amps and 4S at 17.85 amps.
5. Terminal voltage control in 4.18V to 4.30V.
6. Delta-peak sensitivity (NiMH / NiCd).
7. Individual cell balancing charge & discharge.
8. Battery meter function.
9. One button control factory setting.
10. Data storage (Store up to 6 packs in memory).
11. USB Port(5v 2.1A, output) for PC control & firmware upgrade.
12. Input voltage: AC 100-240V comes with 110V power cord.
13. Charge power: Max. 300W.
14. Discharge power: Max. 25W.
15. Charge current range: 0.1~20.0A.
16. Discharge current range: 0.1~5.0A.
17. LiIo / LiPo / LiFe cell count: 1~6 series.
18. NiCd/NiMH battery cell count: 1 - 15 cells.
19. Pb battery voltage: 2V-20V (1-10 cells).
20. Current drain for balancing LiPo: 500mA / cell.
21. DC 11.0-18.0V.
Package Included
1 x Host
2 x Cable
1 x Charging cable
1 x Manual
