Description
Documents:Schematic: Click here to openSample tutorial: Click here to openDatasheet: Click here to openGithub: Click here to open
Features:
No backlight is needed, and the display content of the last screen can be kept for a long time after power offVery low power consumption, basically only consumes power when refreshingSPI control interface, can be connected to Raspberry/Nucleo and other main control boards
Parameter:

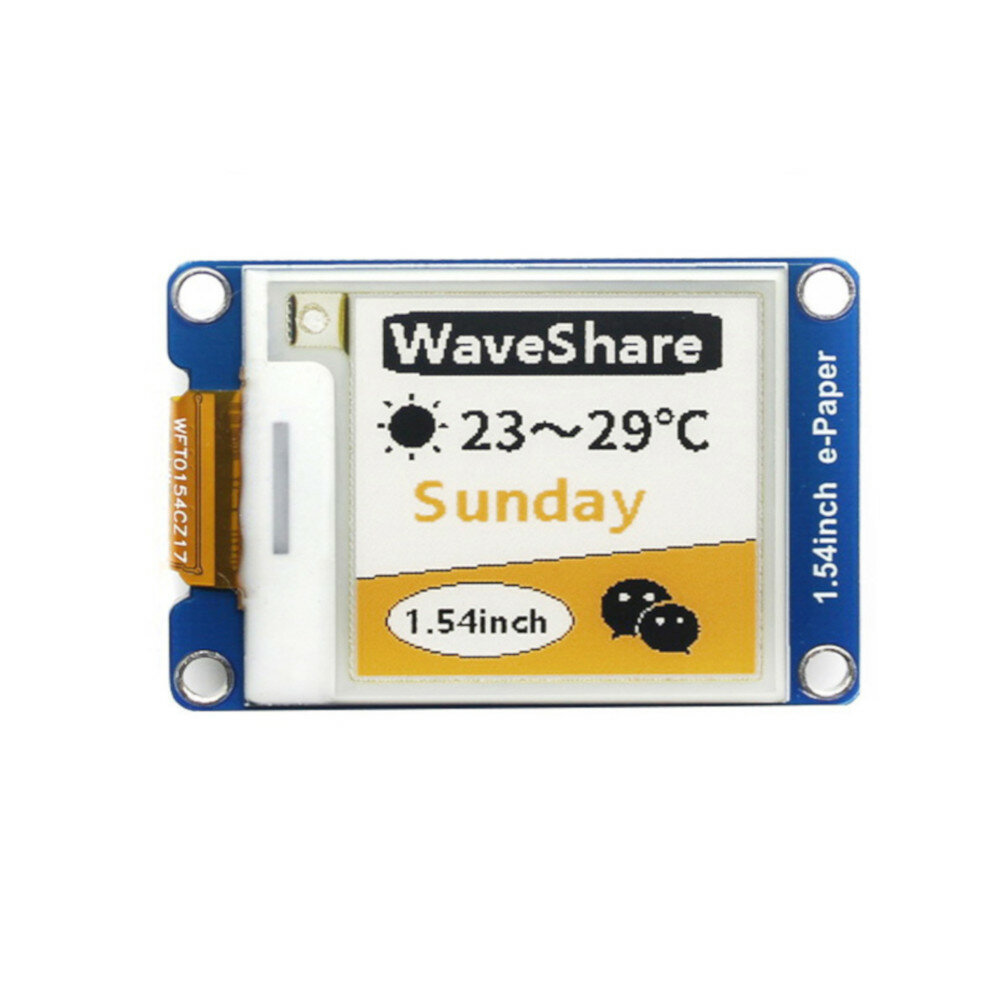

Working voltage: 3.3VCommunication interface: 3-wire SPI, 4-wire SPIDimensions: 48mm × 33mmDisplay size: 27.51mm × 27.51mmPoint distance: 0.181 × 0.181Resolution: 152 × 152Display color: yellow, black, whiteGray level: 2Global refresh: 27sRefresh power consumption: 26.4mW(typ.)Standby power consumption: <0.017mWViewing angle: >170°
Interface Description: VCC: 3.3VGND: GNDDIN: SPI communication MOSI pinCLK: SPI communication SCK pinCS: SPI chip select pin (active low)DC: data/command control pin (high level means data, low level means command)RST: External reset pin (low level reset)BUSY: busy status output pin (low level means busy)
Raspberry Pi connection pin correspondence:
e-Paper Raspberry Pi BCM2835 code Board Physical pin number VCC 3.3V 3.3V GND GND GND DIN MOSI 19 CLK SCLK 23 CS CE0 24 DC 25 22 RST 17 11 BUSY 24 18
Jetson nano connection pin correspondence:
e-Paper Jetson Nano Developer Kit BCM2835 code Board Physical pin number VCC 3.3V 3.3V GND GND GND DIN 10(SPI0_MOSI) 19 CLK 11(SPI0_SCK 23 CS 8(SPI0_CS0) 24 DC 25 22 RST 17 11 BUSY 24 18
STM32F103ZET connection pin correspondence:
e-Paper STM32 Vcc 3.3V GND GND DIN PA7 CLK PA5 CS PA4 DC PA2 RST PA1 BUSY PA3
Arduin UNO connection pin correspondence:
e-Paper Arduin Vcc 5V GND GND DIN D11 CLK D13 CS D10 DC D9 RST D8 BUSY D7
Package includes:

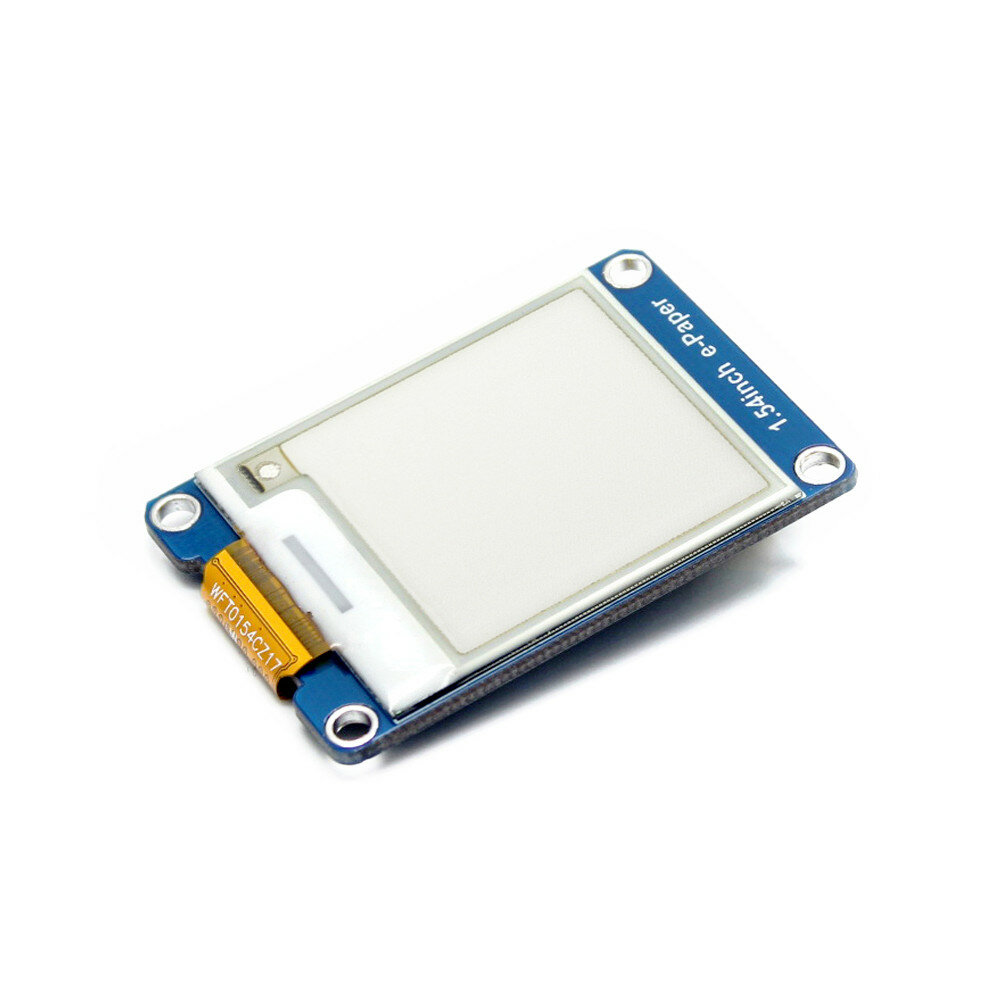

1 x 1.54inch e-Paper Module (C)1 x XH2.54 8PIN cable 20cm
